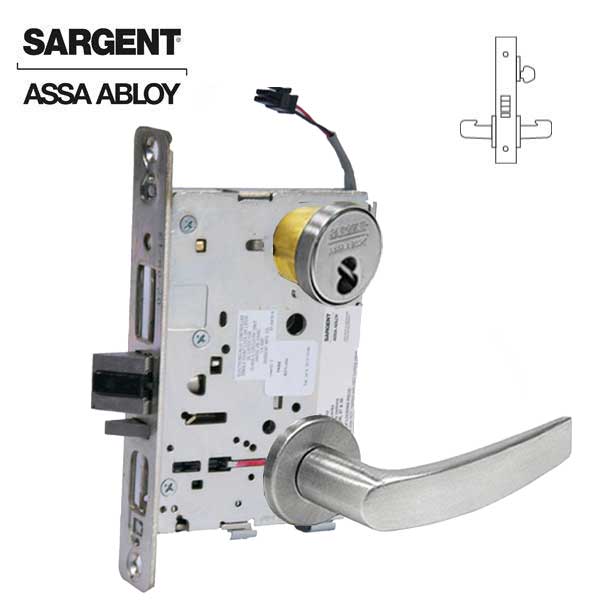

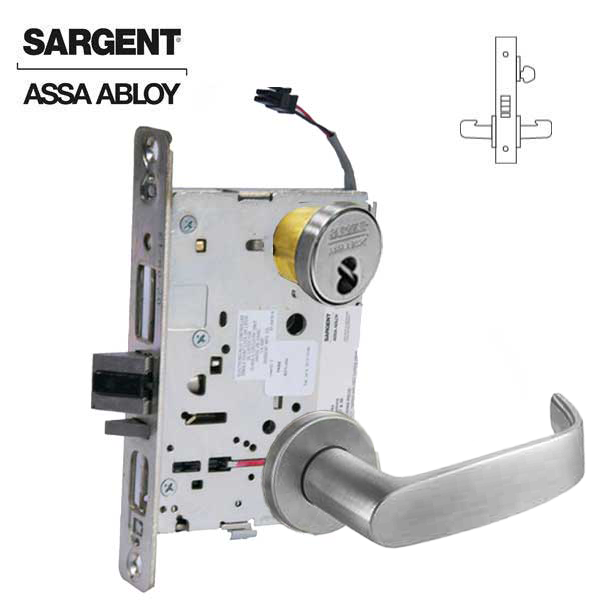

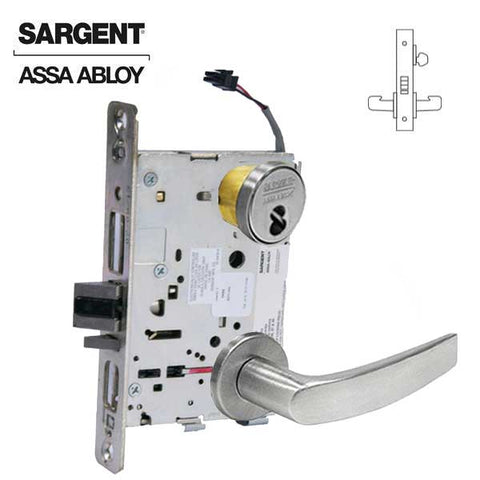

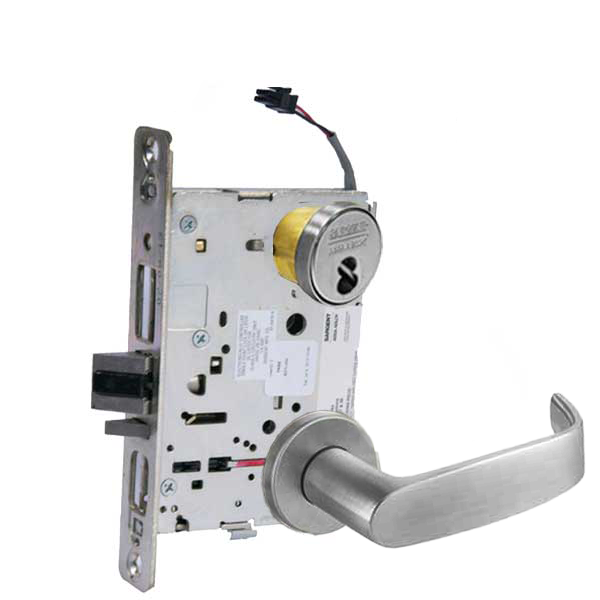

Sargent - 8271 - Electrified Mortise Lock - LN Rose / Optional Levers - Fail Secure - 1-3/4" Frame - 24VDC - SFIC - Satin Chrome - Grade 1
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $572.36
-
$875.26 - $572.36
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SRG-70-8271-24V-XXX
The 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.
This version of the 8200 Series Mortise Lock operates at 24VDC and can be used in stand-alone applications or as part of an integrated access control system. Featuring EcoFlex technology, the electromechanical version dramatically reduces power consumption by up to 96%, as certified by GreenCircle.
Features:
- Strong and Reliable
- Pre-assembled components make installation fool-proof
- Lock easily re-handed without removing parts or opening the lock case
- Only 30 degrees of lever rotation required to retract latchbolt for easy operation
- 24VDC - FailSecure Function
- Comes with two Nickel Silver Keys
- Exceeds Grade 1 requirements
Specifications:
| Construction: | Heavy Duty Steel |
| Lock Function: | Electric Mortise Lock - Failsecure - Electrically Unlocked |
| Door Thickness: | 1-3/4" |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | 8”L x 1-1/4”W |
| Strike: | ANSI 1-1/4" Standard; Curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements: | 8”L x 1-1/2”W x 1-1/2”D |
| Bolt Diameter: | 3/4” |
| Bolt Throw: | 1” |
| Stile: | 4-3/4" |
| Rose & Lever: | Standard LN Rose and B Or L Lever |
| Cylinder: |
1-1/8" Brass SFIC |
| Keyway: | 6 or 7 Pin SFIC (Core Not Included) |
| Voltage: | 24VDC Voltage Continuous duty |
| Standby Current: | 50 mA @ 24 VDC |
| Finish: | 626 - Satin Chrome |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 10-Year Manufacturer Warranty |
