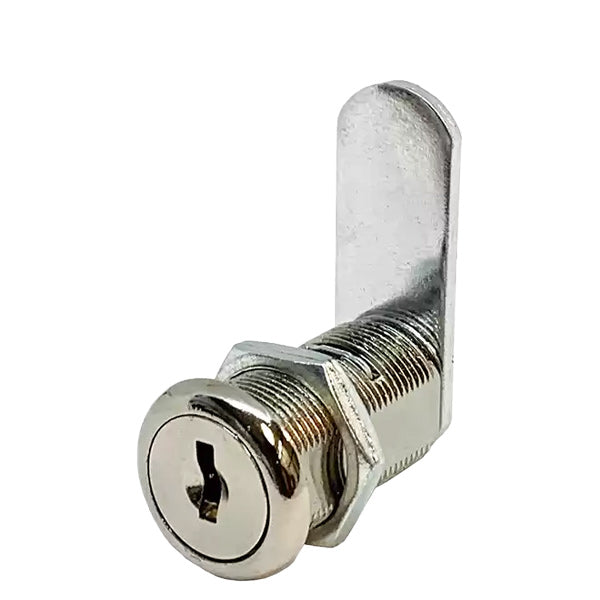

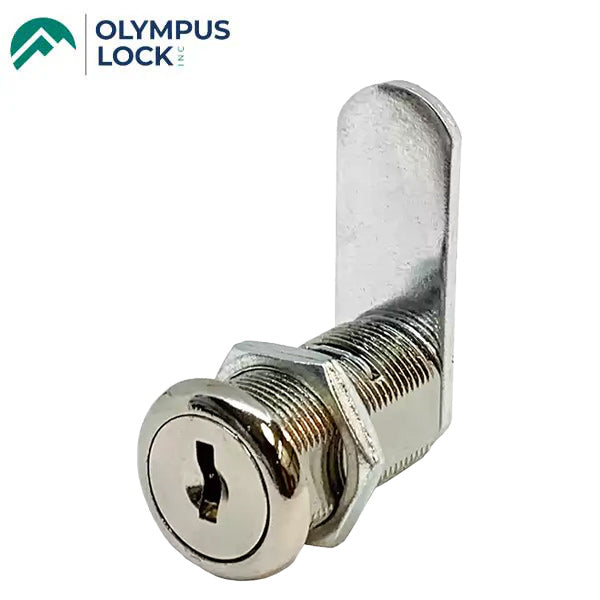

Olympus - 953 Series - Cylinder Disc Tumbler Cam Lock Key - 1-3/16" - Bright Nickel - C415A Key

Olympus locks cascade series 5 disc tumbler cam locks feature die-cast zinc body and cylinder in a bright nickel finish. This 5 cylinder length option accommodates material thickness of 7/8". Cascade series locks will key together with CompX National disc tumbler locks and are available with 120 KD and MKKD codes. Custom keying to schedule in MKKA or a combination of MKKA/MKKD is available via special order.

Features:

• Passed ANSI/BHMA grade 2 cycle test: 20,000 cycles including key insertion and removal
• Shipped with cylinder and body assembled via patented retainer staple. Keys are not required for assembly
• Spur washer with eyelet. When screwed into place, the spur washer prevents lock rotation and keeps fixing nut from loosening after installation
• Revolutionary cylinder + cylinder extender allows cylinders to easily be swapped between different size cam lock bodies increasing inventory and keying flexibility
• For drawers, right-hand or left-hand doors
• Lipped/overlay construction (1-1/2" straight cam) or flush construction (1-1/8" extension, 11/32" offset cam)
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length listed below
• Key removable in both locked and unlocked positions
