Cal-Royal - SC8010 - SS Lever - Passage - Mortise Lockset - US26D - Bright Chromium Plated - Grade 1
Cal-Royal - SC8010 - SS Lever - Passage - Mortise Lockset - US26D - Bright Chromium Plated - Grade 1
$180.02$216.02On Sale
You save $36.00 (17%)
Please Note:
This product has a lead time
Quantity
Couldn't load pickup availability

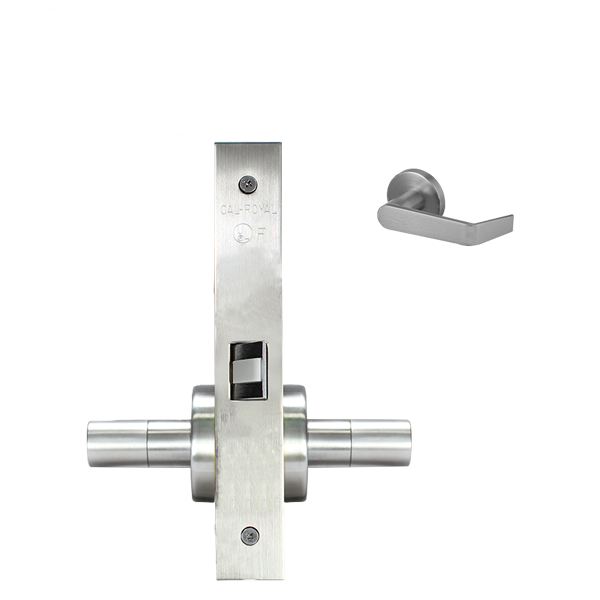

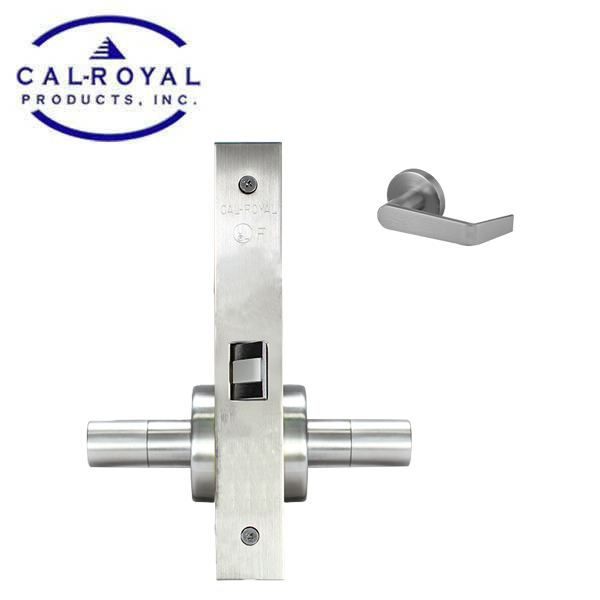

The Cal Royal SC8010SS-US26 is an Extra Heavy Duty Grade 1 mortise lockset featuring a passage function and a Bright Chromium Plated finish. It is a durable, commercial-grade door handle system designed for high-traffic environments like offices and public buildings
Features:
- Can retrofit a Schlage L9000 Series mortise lock without drilling any additional holes on the door for sectional and escutcheon trims
- Fully reversible design
- No exposed mounting screws on the outside and inside trims
- The outside lever has a Clutch (Free-Wheeling design). The lever rotates when the lever is locked, preventing excessive force from being applied to the horizontal lever. The design decreases the chance of the lever being broken or damaged
- Lock body conforms to all dimensional and operational performance requirements of ANSI A156.13, Grade 1, exceeds 1,000,000 cycles
View full details
Details
Specifications:
| For Doors | 1-3/4" (44.5mm) thick standard |
| Backset & Strike | 2-3/4" only Backset, curved lip with dust box, Brass or stainless steel strike |
| Lock Hand | Lock Bodies are easily field reversible |
| Lock Case | Heavy-duty wrought steel, zinc dichromate plated |
| Center To Center | Center of the lever to center of the cylinder is 3-7/8" (98mm) |
| Armor Faceplate | Brass or stainless steel, 8" x 1-7/32" (203mm x 31.3mm); ANSI Standard A115.1 |
| Deadbolt | 1" (25.4mm) throw; hardened stainless steel |
| Latch Bolt | 3/4" (19mm) throw; one-piece stainless steel with anti-friction reversible tongue |
| Cylinder & Keyways | 6-Pin solid brass "C" keyway standard |
| Interchangeable Core (IC) | Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON, and ARROW. |
| Toggle Button | High rust-resistant chrome-plated zinc alloy |
| Auxiliary Latch | Stainless Steel, non-handed |
| ANSI / BHMA | Meets ANSI / BHMA A156.13 Series 1000, Operational & Security Grade 1 Standards |
| UL/cUL | UL and UL Listed to Canadian safety standard for A label (3-hour fire door); stamped letter F and UL symbol on armor faceplate |
| Positive Pressure | Meets positive pressure requirements UL 10C and UBC 7-2 (1997) |
| ADA | Meets ADA requirements, specifically designed for Barrier-Free-Application |
