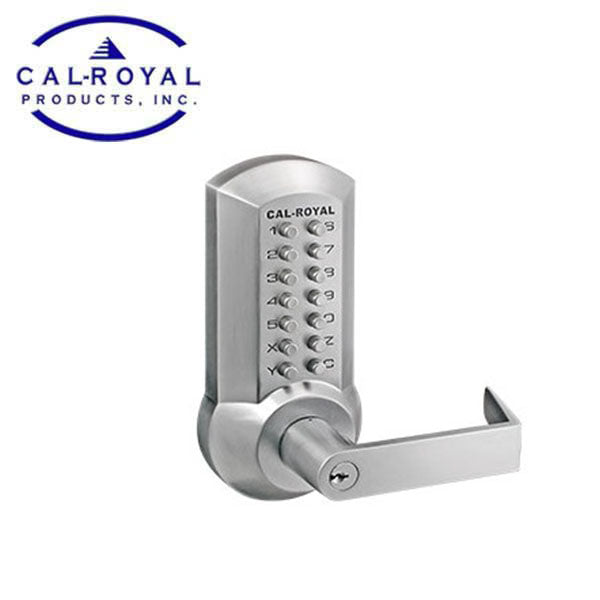

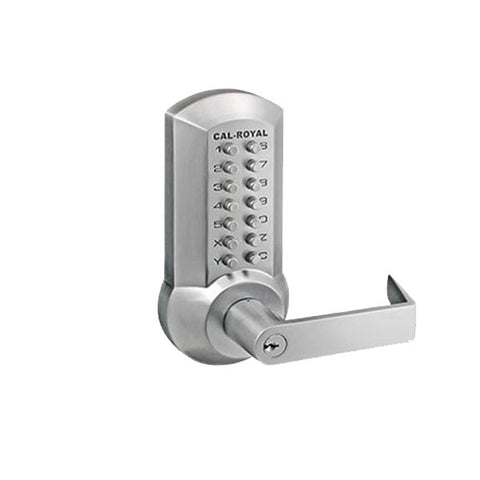

Cal-Royal - Heavy Duty Mechanical Lock Trim - For Rim & Surface Vertical Rod Exit Devices - Storeroom - Grade 2
Available to Order
SKU:
CRL-CRCODE204-US26D
NSID:
66500
- $238.01
-
$285.61 - $238.01
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CRL-CRCODE204 -US3
Features
- Universal Trim used with 2200, 6600, 7700, 9800 Series Rim and Surface Vertical Rod Type Exit Devices
- Meets ADA requirements. Conforms with ANSI A156.2, Series 4000 GRADE 2
- Easy installation covers 161 prep (2-1/8" hole)
- 1 - 12 Digit Code
- Single Code User
- Key Override
- Easy on-the-door code change without removing the lock
- Code-Free Option (Passage)
- Breakaway Lever Design
- Clutch-Free mechanism
- Weather-Resistant
- Non-Handed
- More than 8000 combinations
- For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings
SPECIFICATIONS
| General | Full length 5 1/2" lever handle with 7/8" return. Escutcheon dimension 3 1/2" x 8 1/8". Key removable outside lever for all models for fast re-keying. 2 1/8" diameter bore. |
| Breakaway Lever Design | Lever will stay at the 5 o'clock position when forced down without retracting the latch, to prevent breaking of handle and giving the impression of the handle being broken to discourage or scare off vandals. |
| Door Ranges | 1 3/4" - 2" |
| ANSI Standards | Meets or exceeds ANSI A 156.2, Series 4000 Grade 2 requirements. |
| Strikes | ASA 1 1/4" x 4 7/8" standard |
| Cylinder & Keyways | 6 pin solid brass "C" keyway standard. |
| Trim | Thru-bolted assembly through door with separate spring cage for each lever. |
| On-Door Code Change | Code can be changed without removing the lock from the door and using only a "code change" key. |
| 1-12 Digit Code | An entry code can be a combination of 1 to 12 digits long. The digits can be entered in any order. For example, if the chosen 6-digit code is "5283XZ" it can be entered as "ZX3825" or "3X8Z25" or in any other combination of the 6-digit code. |
| Code-Free Option (PASSAGE MODE) | Once enabled, the lock remains unlocked until disable PASSAGE MODE is initiated. |
