How to read remote transponders and frequencies + Generate Universal Keys with Xhorse KeyToolMax Pro Mobile Key Programmer
Mastering the VVDI Key Tool Max Pro from Xhorse: A Comprehensive Guide
The VVDI Key Tool Max Pro from Xhorse is a revolutionary product that has transformed the way locksmiths and security professionals work. This powerful key programmer and generator is designed to read transponders, remote frequencies, and generate universal keys, making it an indispensable tool for professionals in the field. In this comprehensive guide, we will provide step-by-step instructions on how to use the VVDI Key Tool Max Pro, along with some general knowledge about this innovative device.
Getting Started with the VVDI Key Tool Max Pro
The VVDI Key Tool Max Pro is presented by Louie Felix, a product specialist, who guides us through the process of reading transponders and remote frequencies. The first step is to select "Remote Clone" from the home screen. Then, press any or every button available on a remote to see the frequencies used.
Reading Transponders
To read a transponder, select "Transponder Clone" and place the remote into the coil slot. Press "Read Transponder" to see the transponder details. This feature allows you to clone transponders, making it easier to replace lost or damaged keys.
Reading and Writing to a Super Chip
The VVDI Key Tool Max Pro can read or write to a Super Chip or standard transponder. To do this, place the key to clone into the coil. After reading, place the chip in the chip slot and select "Clone" to begin. This feature is particularly useful for creating spare keys or replacing lost ones.
Generating Xhorse Universal Keys

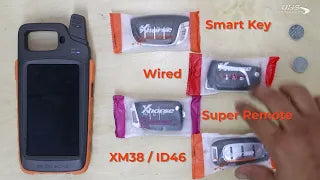

The VVDI Key Tool Max Pro can generate four different types of Xhorse Universal Keys: XM38 / ID46, Wired, Smart Key, and Super Remote. To do this, enter the necessary information and follow the security prompts to finish the setup procedures.
Smart Key Remote Generation
To generate a Smart Key Remote, first remove the remote from its packaging. Remove the emergency key insert and back panel to place a new CR2032 battery into the PCB board before starting. After reassembly, place the remote into the device coil and select "Remote Program", choose the Car Model, Desired Remote, and select "Generate" when ready. Once complete, your remote can be programmed to the vehicle chosen, or be rewritten to another remote type, until programmed fully.
Wired Remote Generation
For Wired Remote Generation, the process is similar. Remove the remote from the packaging and remove the back panel and PCB board before starting. Connect the PCB board to the Key Tool Max Pro using the PCB to S-Video Cable and begin vehicle remote selection. After selecting the desired remote and generating it, insert the battery, test the remote, and reassemble it before moving on to program.
ID46 Remote Generation
For ID46 Remote Generation, the process involves removing the remote from the packaging and inserting a new CR2032 battery into the PCB board. Place the PCB or assembled remote into the device coil and select "Remote Program", choose the Car Model, Desired Remote, and select "Generate" when ready. Once complete, test the remote is active, and it can be programmed to the vehicle chosen. Note that remotes can be rewritten until programmed fully.
Super Remote Generation
The Super Remote Generation process is similar to the ID46 Remote Generation. After generating the remote, test it to ensure it is active and can be programmed to the vehicle chosen.
Conclusion
The VVDI Key Tool Max Pro from Xhorse is a versatile and powerful tool that can significantly simplify the work of locksmiths and security professionals. With its ability to read transponders, remote frequencies, and generate universal keys, it is an essential tool for anyone in the field. By following this guide, you can master the use of the VVDI Key Tool Max Pro and take your skills to the next level.
Remember, all the products used in this guide can be found at UHS-Hardware.com. Happy programming!
