*Discontinued* ZKTeco - ATLAS400 - Full Access Control Kit (4 Doors)
- $1,102.50
-
$1,251.12 - $1,102.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
ZKT-ATLAS400-4DRKIT
The Atlas ATLAS400 Full Access Control Kit is the best simple and affordable access control panel. It controls four doors, and has no software. The access control panel has it's own power supply and is capable of PoE (Power over Ethernet) and communicates via Wi-Fi.

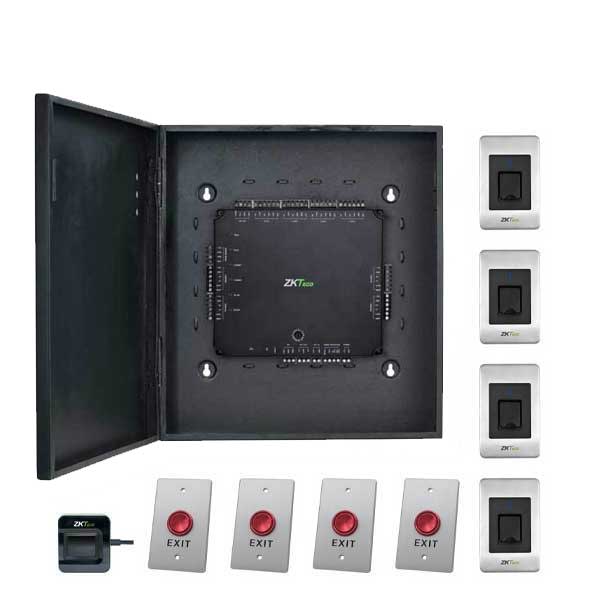

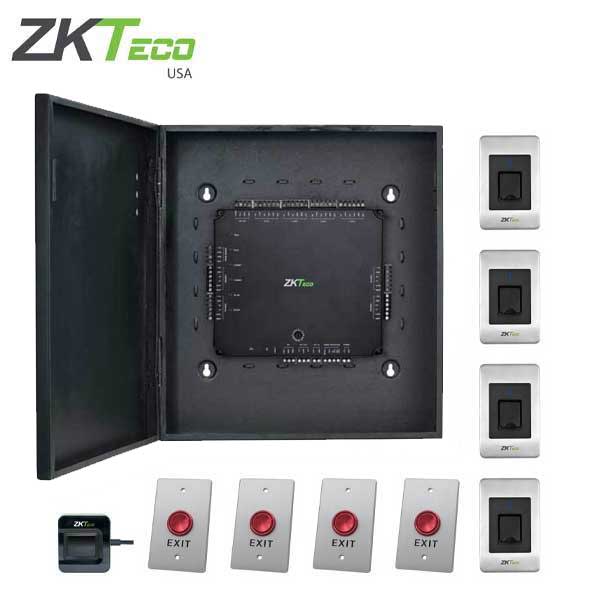

Kit Includes:
Kit Includes:
1 - CR10E -Access Card Enrollment Reader - ZKAccess card enrollment reader
4 - KR500E Card Readers - RFID CREDENTIAL READER
4 - PTE-1 Exit Button - Provides fast simple door egress. Connects to any 12 V controller. IP-68 waterproof casing. Normally open/Normally close/Common relay output
50 - Proximity Cards
Simple Management and Scalability: Scale up to 21 panels
Multiple Verification Methods: Card or Fob
Door Control: 4 Doors
- $1,102.50
-
$1,251.12 - $1,102.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xAdvanced Access Control Features
No software required. There is a Built-in Web Application in the device that provides advanced access control features
- User Enrollment & Management
- Door Control & Monitoring
- Lockdown
- Reporting
- Maps
- Anti-Passback
- First-Card Opening
- Multi-Card Opening
- Card Design
- Under Duress PINs.
- .
Specifications
| Number of Doors Controlled | 4 Doors |
| Types of Readers Supported | ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers |
| Number of Inputs | 9 (4 Exit Button, 4 Door Sensor, 1 Aux) |
| Number of Outputs | 5 (4 Form C relay for lock and 1 Form C relay for Aux output) |
| User Capacity | 5000 |
| Events Database Capacity | 10,000 transactions plus unlimited archive downloads |
| Weight | 9 lbs (3.8 kg) |
| Communication | TCP/IP, Wi-Fi, Wiegand, OSDP |
| Browsers Supported | Chrome, Firefox, Edge |
| Enclosure | Powder Coated Aluminum |
| Mounting | Wall Mount |
| Recommended Power Supply | 12V DC, 3A (PoE) |
| Dimensions (Bundle Only) | 14in. X 2.5in. X 12in. 380mm(L) X 80mm(W) X 280mm(H) |
| Dimensions (Board Only) | 6.3 in. X 5.51 in. (160 mm X 140 mm) |
Advanced Access Control Features
No software required. Built-in Web Application provides advanced access control features including User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback, First-Card Opening, Multi-Card
Opening, Card Design and Duress PINs.
Door Control and More
User-programmable auxiliary relays can be used to control lights, alarms, annunciators, intrusion detection panels, additional locking devices, or any other external electrical device which can be controlled by a switch.
Capacity
Atlas Series supports up to 84 doors when adding multiple secondary Atlas Series panels to the primary Atlas Series panel. Each Atlas panel can store up to 5,000 cards and 10,000 transactions
Choice of Readers
Atlas Series supports any 3rd-party readers which communicates with Wiegand or OSDP communication protocols.
Mobile App
Numerous convenient features include: remotely unlocking doors, universal lockdown & recovery, access to events & alarms, adding/modifying users, and much more.
Lowest Total Cost of Ownership
Atlas Series panels come in several models, to suit different project needs and reduce the cost of unused capacity. Easy-to-use embedded Web Application gets you up and running quickly. Firmware is field upgradeable, allowing your system to stay current with the latest features and security enhancements.
System management by browser from client PC’s. No need to install software on each client.
Programming of special logic between doors is set up with simple pull down menus. No special scripts or code is required.
Management software allows indication of real-time door status and remote commanding of door open/close state. Alarm conditions such as forced open and extended open alarms are reported.
Advanced access control capabilities are built into the hardware, including anti-passback, Dual and multi-Card Authentication, and Duress Mode.
Downloads
- Data Sheet
- Installation Guide
- Smart Phone App ( iPhone / Android )
