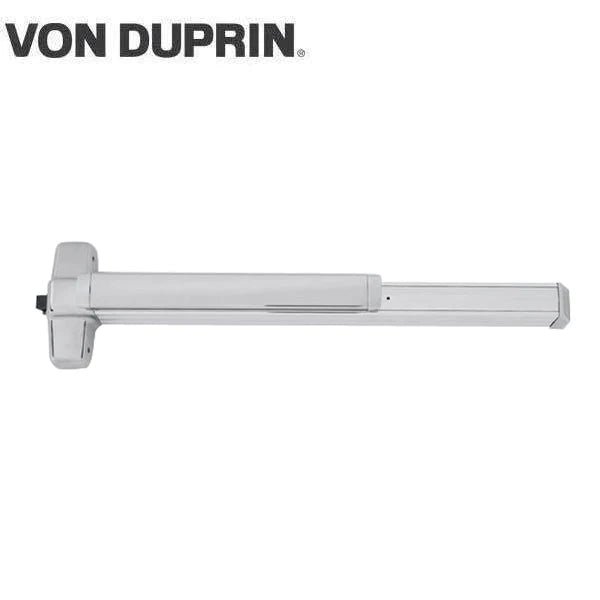

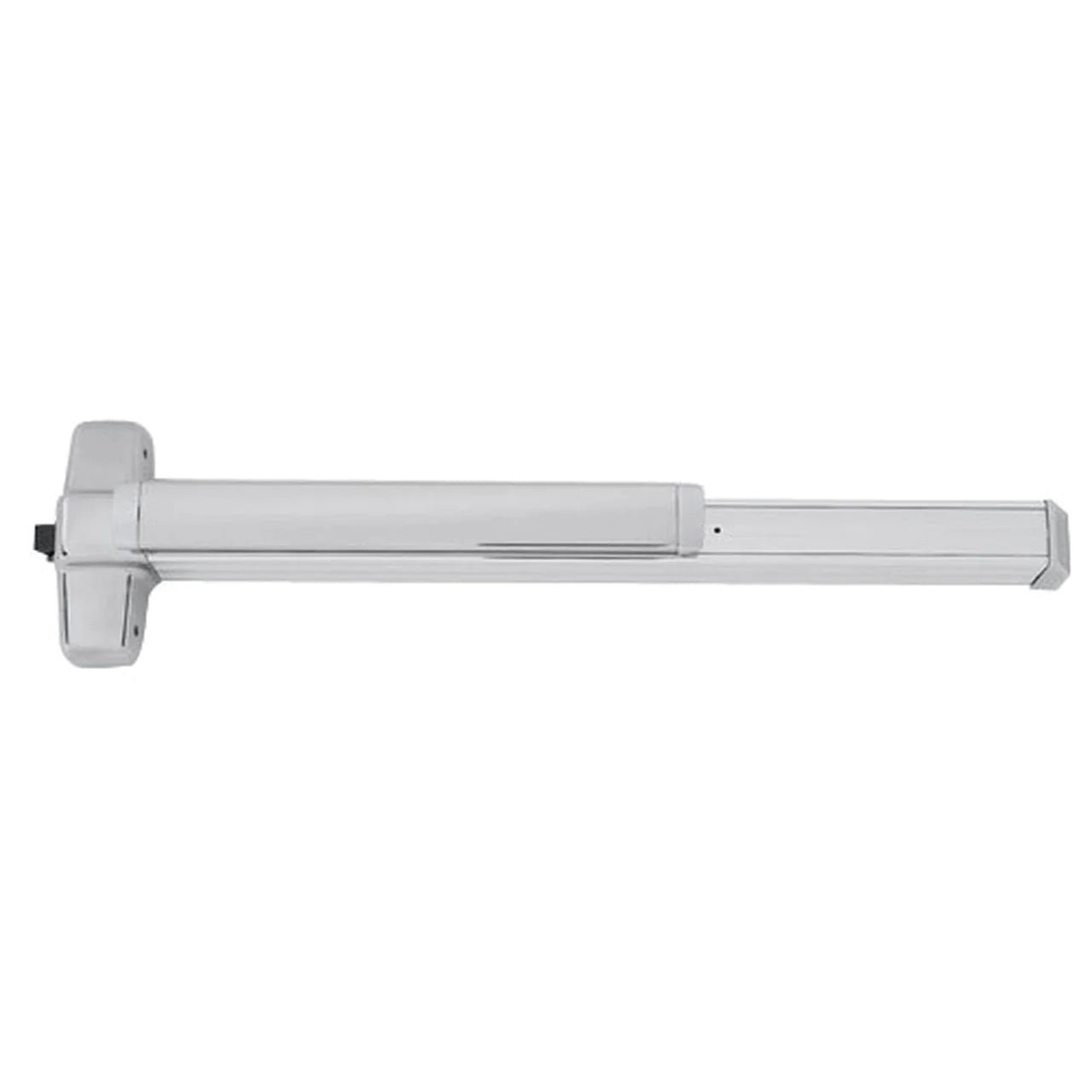

Von Duprin - 98EO - Panic Rim Exit Device - 3ft Length - Exit Only - Field Reversible - Aluminum Anodized - Grade 1
Available to Order
SKU:
VNDP-98E0-3-US28
NSID:
46602
- $1,198.71
-
$1,438.45 - $1,198.71
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
98 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 98 Series device has a smooth mechanism case. It is specifically designed for use in areas where frequent abusive treatment can be expected.
Specifications
| Trim | No Trim - Exit Only |
| Device functions | EO - Exit Only |
| Device lengths | (3' ) 2'4' to 3' (711mm to 914mm) Door size |
| Device centerline from finished floor |
39 13⁄16" (1011mm) 39 11⁄16" (1008mm) with mullion |
| Center case dimensions |
8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm) |
| Mechanism case dimensions |
2 1⁄4" x 2 1⁄4" (57mm x 57mm) |
| Projection push bar | Pushbar neutral – 3 13/16" (97mm) |
| Latch bolt | Deadlocking, 3/4" (19 mm) throw |
| Fasteners | Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal screws |
| Handing | Field Reversible |
| Finish | 626 Satin Chrome |
| Dogging feature | Hex key dogging standard |
| Strikes | 299 – Dull black |
| Fire Rated | No |
| Certifications | ANSI A156.3 – 2008 Grade 1. |
