Von Duprin - 900-2RS - Optional Distribution Board - 2-Relay Board Output - 2-Zone
- $161.98
-
$194.37 - $161.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

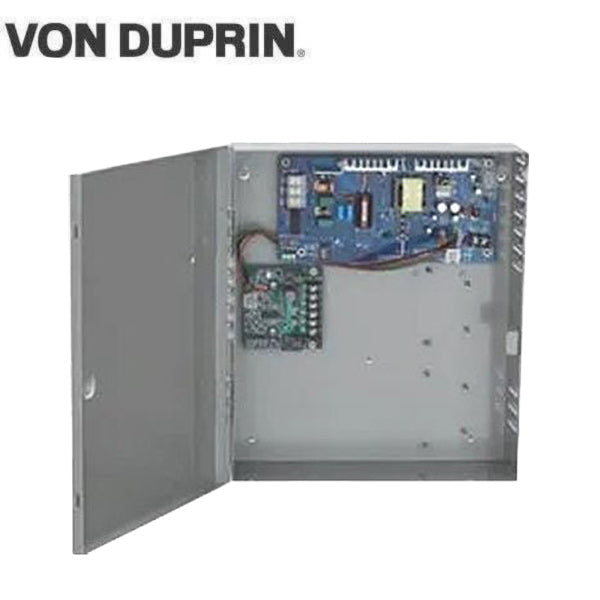

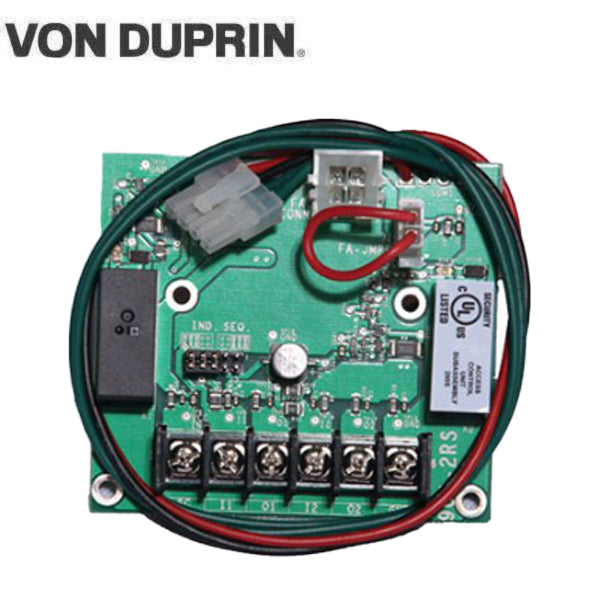

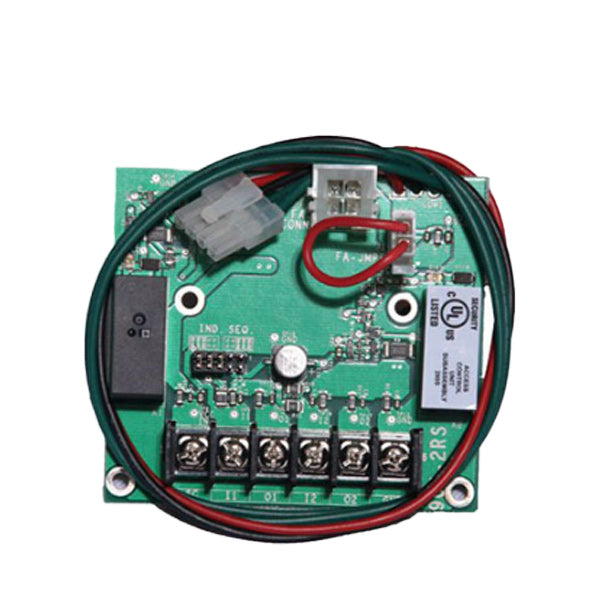

The Von Duprin 900-2RS Panic Device Control Board is designed for optimal performance in electric latch extraction exit devices. This advanced control board operates on a universal 120-240V AC input, ensuring compatibility with various systems while featuring a fused primary input for added safety. The single polarized option board connector simplifies installation, making it user-friendly for technicians. Additionally, the battery backup board automatically selects the appropriate voltage, providing peace of mind during power outages. Upgrade your security system with this reliable and efficient control board. The 2-relay option board is capable of individual or sequential operation for single and pair door applications.
Features:
- For use with the Schlage PS900 / Von Durpin PS914 power supplies
- Accepts 900-FA Fire Alarm Board
- Temperature Range: 32°-120°F (0°-49°C)
- Compliance: UL 294, ULC-S318, RoHS, & FCC part 15
Inputs I1, I2:
- Dry contacts required (Closed = Active)
- Connect control contacts between SC (Signal Common) and any input
- The board requires 0.1A max. of power supply output current to operate
Outputs 01, 02:
- 12/24VDC, 3A (wet) when AC powered
- 9.6-13.2VDC or 19.2-26.4VDC when battery-powered
- May be used with PS914 to power EL device at 24VDC, 16A, 300ms
- Maximum load cannot exceed power supply ratings or 3A for outputs combined
