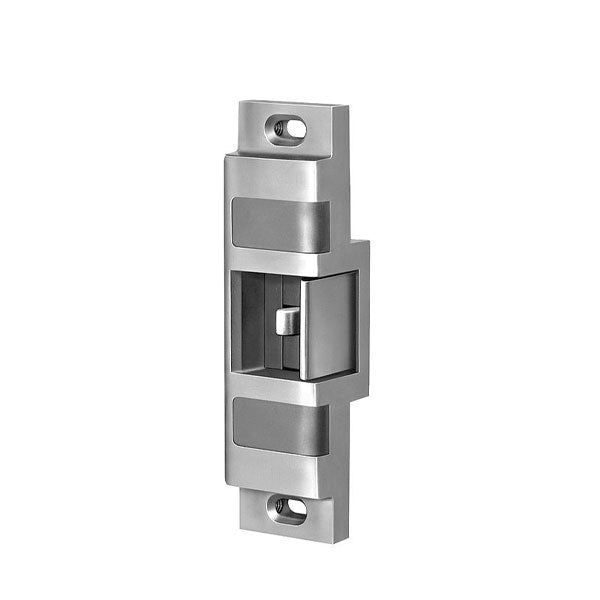

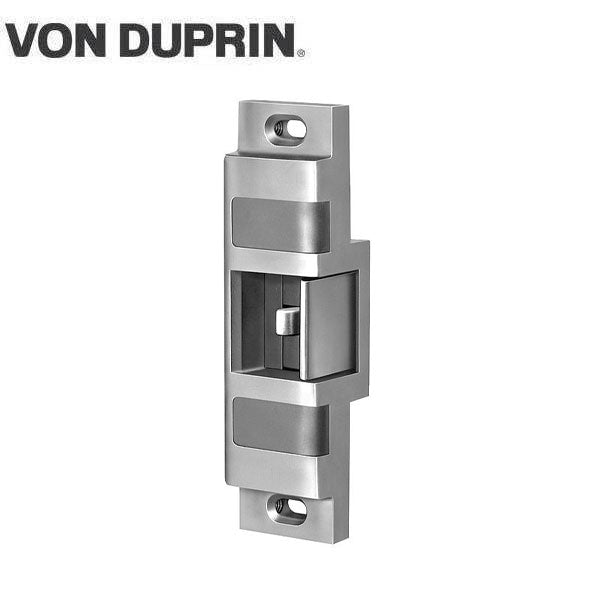

Von Duprin - 6111 Electric Strike for Rim Exit Devices - Fail Secure - Satin Stainless - 24VDC
- $765.18
-
$810.22 - $765.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 6100 Series is designed to withstand abuse. Its heavy-duty stainless steel construction is fully UL1034 and UL10C listed. 6100 Series electric strikes are designed for use with a variety of rim exit devices. They interface with the latch mechanism of the exit device. The movable lip (keeper) allows a door to open even when the latch bolt is extended. This feature, called remote release, provides added benefits such as increased convenience and efficiency. The 6100 Series also provides added security and traffic control.
6100 Series electric strikes can be used for retrofit applications or new construction. To assure the proper selection of an electric strike on new applications, lockset compatibility charts are shown below
More Information Below
| Retrofits model | VD 3031 |
| Static strength | 1500 lbs. holding strength |
| Dynamic strength | 70 ft-lbs. impact strength. |
| Latchbolt throw | 3/4" |
| Face plate length | 6" |
| Backbox depth | 1 3⁄4" |
| Strike Box | Strike box is adjustable to compensate for misalignment of the door or frame |
| Fail Safe / Fail Secure | Fail Secure |
| Voltage | 24VDC |
| Handing | Non Handed |
| Lockset Types | Rim Exit Devices |
| Number of doors | Single or Double door with mullion |
| Door and frame type |
Hollow metal |
| Connectors | Two piece plug connectors are furnished for ease of installation and for removal during strike servicing |
| Finish | 630 US32D Satin stainless steel |
| Certifications | UL1034 Burglary-Resistant and UL10C Electric Strike for Fire Door - 3 Hours |
| Warranty | 1 year limited manufacturer warranty |
Retrofit Charts -
Note: Von Duprin cannot guarantee compatibility as other manufacturer’s designs may change without notice)
Downloads
- Single Door Installation
- Double Door with Mullion Installation
- Full Catalog with Wiring Diagrams Specifications
