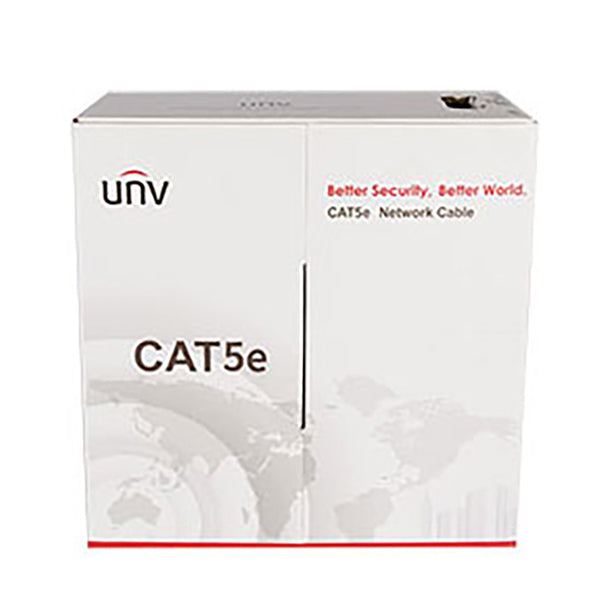

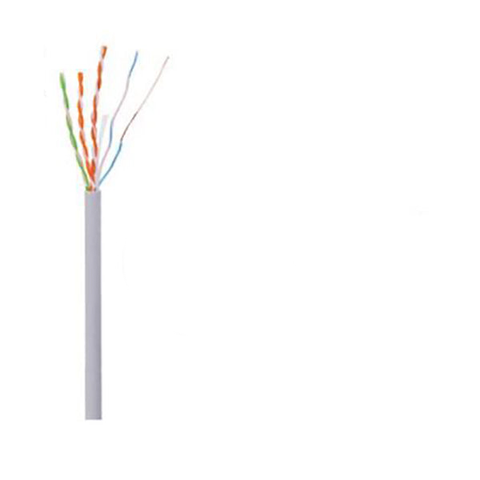

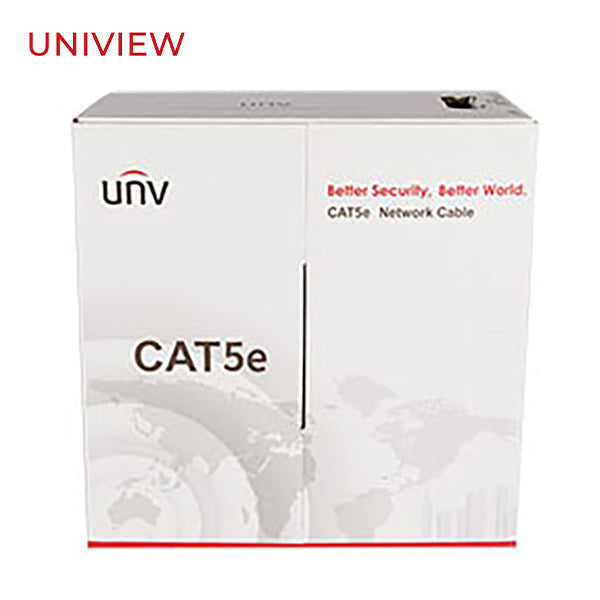

Uniview / UNV / CAT5e / UTP / 305M / 99.99% OFC / 0.5mm / UL Certificate / UNV-CAB-LC2100A
In Stock
SKU:
UNV-CAB-LC2100A
NSID:
7289
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $94.95
-
$119.00 - $94.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- CAT5e
- UT
- 305M
- 99.99% OFC
- 0.5mm
- UL Certificate
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!

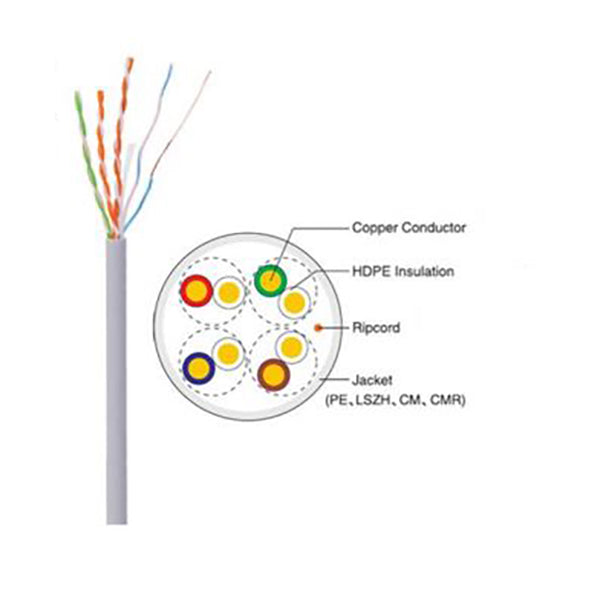

Technical Specification
| Product specification | HSYV-5e 4×2×0.50 |
| Test Standard | YD/T1019-2013 |
| Conductor | |
| Material | OFC(Oxygen free copper) |
| AWG | 24 |
| Nom.O.D.(mm) | 0.5±0.005 mm |
| DC resistance | ≤95 Ω/km |
| Insulation | |
| Material | HDPE |
| Thickness | 0.2±0.02 mm |
| Diameter | 0.9±0.05 mm |
| Color | Blue/White- Blue |
| Color | Green/White-Green |
| Color | Orange /White-Orange |
| Color | Brown/White-Brown |
| Pitch | |
| Offset pitch | ≤25 mm |
| Cable pitch | ≤140 mm |
| Sheath | |
| Material | PVC(complies RoHS/REACH) |
| External O.D. | 5.1±0.3 mm |
| Color | Gray(RAL7046) |
| Tensile strength | >13.5 Mpa |
| Thickness | 0.55±0.05 mm |
| Surface Printing | |
| Letter height | 3.0±0.3 mm |
| Color | Black |
| Print error & Space | 1±0.005 m |
| Case number | Yes |
| Packing | |
| Packing | Carton |
| Once packing dimension | 350mm*216mm*350mm |
| Twice packing dimension | 370mm*460mm*370mm |
| Twice packing quantity | 2 cases |
| Packing length | 305±1 m |
| Rip-cord | Yes |
| Ambient temperature | -20℃～60℃ |
Downloads
Data Sheet
