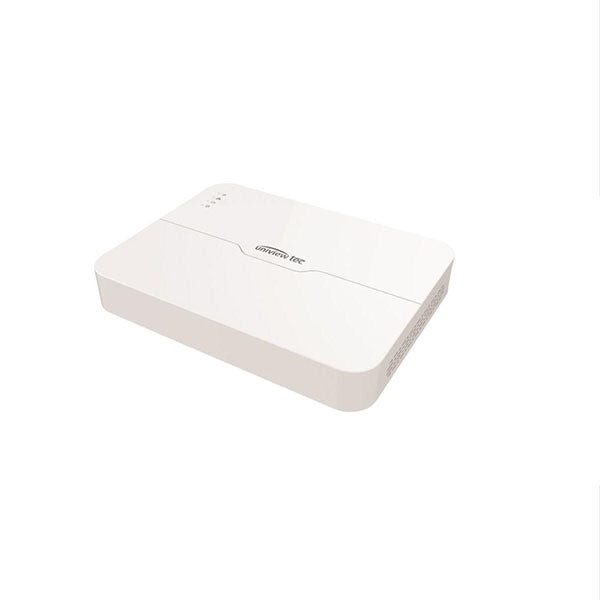

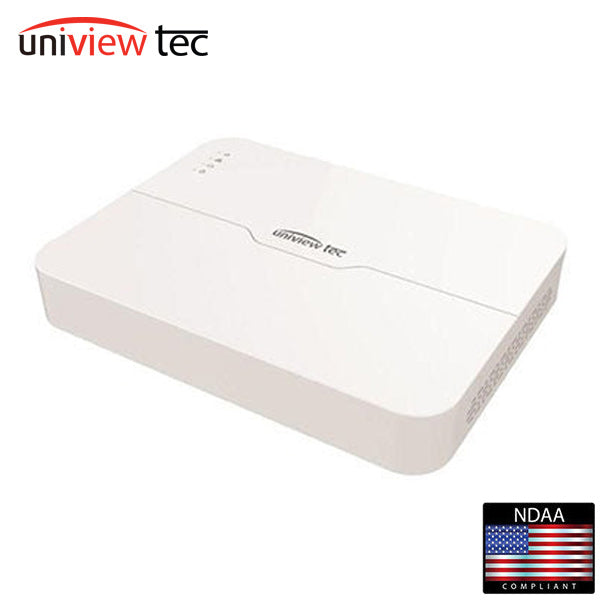

*Discontinued* Uniview Tec / UVT / NR08XP / 8ch Enhanced Performance / 8 PoE / 4K Resolution / H.265 NVR - Optional HDD
Out of Stock
SKU:
UNT-NR08XP-4T-delete
NSID:
68296
68297
- $382.00
-
$458.40 - $382.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 8ch network recorder with Enhanced Decoding Performance and H.265 Compression for Best-in-Class Recording and Storage Capability
- Supports 1 SATA HDD up to 10TB and has Embedded PoE Switch for all Video Channels
- Supports recording of up to 4K (8MP), 3840 x 2160 Resolution Images
- Display Images up to 4K (8MP) Resolution on HDMI Output
- Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Powerful Video Content Analysis Features such as Cross Line Detection, Audio Detection, Scene Change and People Counting
- Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades, and is ONVIF Profile Series Compliant
- Long Range PoE Capability, up to 250M (825ft) with Cat5E or Cat6
- Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Key Features
- $382.00
-
$458.40 - $382.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Video | |
|---|---|
| IP Camera Inputs | 8 channels |
| Video Formats | Ultra 265, H.265, H.264 |
| Recording Video Resolution | 4K (8MP), 3840 x 2160 Maximum |
| Playback Video Capability (fps) | 2 x 4K @ 30, 3 x 5MP @ 30, 4 x 4MP @ 30, 5 x 3MP @ 30, 8 x 1080p @ 30 |
| Monitor Output | 1 x HDMI (4K~ 720p); 1 x VGA (1080p ~ 720p) |
| Synchronous Playback | 8 channels |
| Network | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Bandwidth | Incoming – 80Mbps; Outgoing – 64Mbps |
| Remote Users | 128 |
| Video Analytics | Detection: Face, Intrusion, Cross line, Audio, Defocus, Scene Change, Auto tracking, People Counting, Face and Behavior Search |
| General | |
| Network Interface | 1 – RJ45, 10M/100M, Ethernet |
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 |
| PoE Interface | 8 – 100Mbps RJ45 ports; IEEE 802.3af/at; Max 30W single port, w/ Max 108W total |
| Audio Interface | 1ch RCA Input / Output |
| Corridor Mode | Record / Playback Multiple Cameras Simultaneously |
| Hard Disk | 1 SATA, up to 10TB |
| Power | 52VDC; 8W Consumption (w/o HDD) |
| Operating Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions (WxDxH) | 270 × 205 × 42mm (10.6 × 8.1 × 1.7") |
| Weight (w/o HDD) | 068kg（1.5lb） |
| Conformity Certifications | FCC, CE (UL – Power Supply only) |
