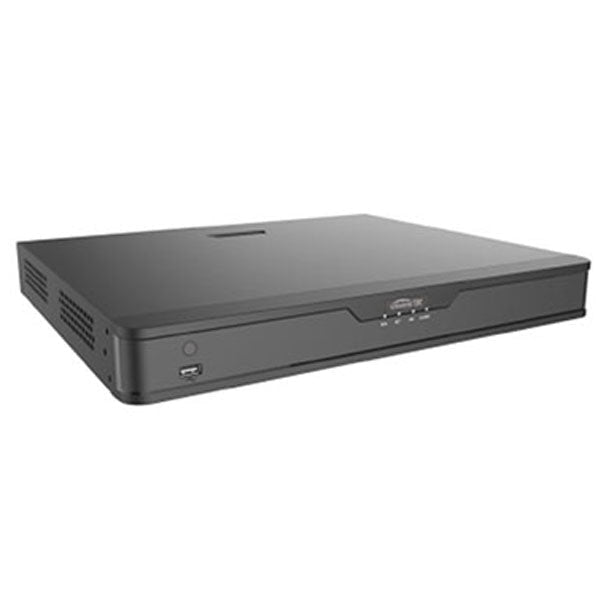

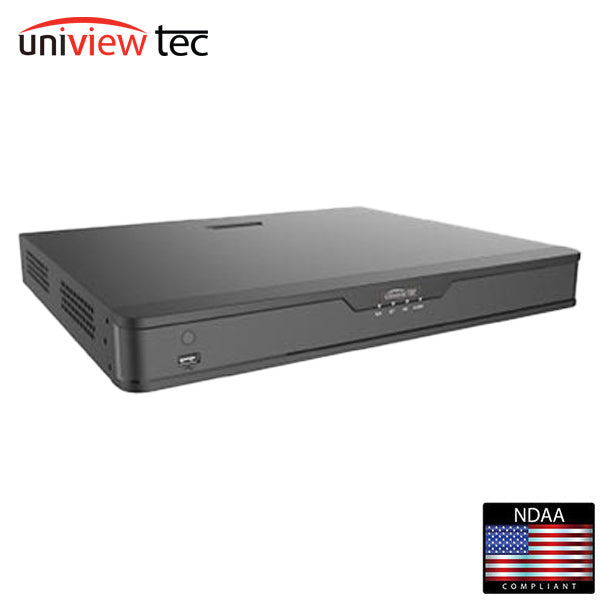

*Discontinued* Uniview Tec / UVT / NR16XP2 / 16ch / 16 PoE / 4K Resolution / H.265 NVR - Optional HDD
Out of Stock
SKU:
UNT-NR16XP2-8T-delete
NSID:
68299
68300
68301
- $911.00
-
- $911.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 16ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Performance
- Embedded PoE Switch for all Video Channels Up to 240W
- Supports recording of up to 4K (3840 x 2160) Resolution Images
- Display Images up to 4K (3840 x 2160) Resolution on HDMI Output
- Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Supports 2 SATA HDD’s up to 10TB each for 20TB total
- ONVIF Profile Series Compliant
- Two way audio and Alarm I/O Support
- Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades
- Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
- Long Range PoE Capability, up to 250M (825ft) with Cat5E or Cat6
Key Features
- $911.00
-
- $911.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Video | |
|---|---|
| IP Camera Inputs | 16 channels |
| Video Formats | Ultra 265, H.265, H.264 |
| Recording Video Resolution | 8MP (4K) Maximum |
| Playback Video Capability (fps) | 2 x 4K @ 30fps; 4 x 4MP @ 30fps; 5 x 3MP @ 30fps; 8 x 1080P @ 30fps; 16 x 720P @ 30fps |
| Monitor Output | 1 x HDMI (4K~ 720p); 1 x VGA (1080p ~ 720P) |
| Synchronous Playback | 16 channels |
| Network | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Bandwidth | Incoming – 160Mbps; Outgoing – 64Mbps |
| Remote Users | 128 |
| General | |
| Network Interface | 1 – RJ45, 10M/100M/1000M, Self-adaptive Ethernet |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm Interface | 4ch – Inputs; 1ch - Output |
| PoE Interface | 16 – 100Mbps RJ45 ports; IEEE 802.3af/at; Max 30W single port, w/ Max 240W total |
| Audio Interface | 1ch RCA Input / Output |
| Corridor Mode | Record / Playback Multiple Cameras Simultaneously |
| Hard Disk | 2 SATA, up to 10TB each, total 20TB |
| Power | 100-240VAC; 10W Consumption (w/o HDD) |
| Operating Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Rack Mountable | Yes; see Accessories |
| Dimensions (WxDxH) | 380 × 315 × 53mm (14.9 × 12.4 × 2.1") |
| Weight (w/o HDD) | 2.6kg（5.29lb） |
| Conformity Certifications | FCC, CE (UL – Power Supply only) |
