*Discontinued* Uniview / UNV / 128-Channel / 12MP / 4K / NVR / 16 SATA / HDD up to 10 TB / UNV-516-128
Out of Stock
SKU:
UNV-516-128-delete
NSID:
7296
- $7,139.00
-
$8,566.80 - $7,139.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Support Ultra 265/H.265/H.264 video formats
- 128-channel input
- Up to 12 Megapixels resolution recording
- 16 SATA HDDs, Up to 10TB for each HDD, Hot-Swap
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Support N+1 Hot spare
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
- $7,139.00
-
$8,566.80 - $7,139.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xTechnical Specification
| Video/Audio Input | |
| IP Video Input | 128-ch |
| Two-way Audio Input | 1-ch, BNC |
| Network | |
| Incoming Bandwidth | 512Mbps |
| Outgoing Bandwidth | 384Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI1： 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, BNC |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Decoding | |
| Decoding format | Ultra 265, H.265, H.264 |
| Liveview/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 |
| Hard Disk | |
| SATA | 16 SATA interfaces |
| Capacity | up to 10TB for each HDD |
| eSATA | 1 eSATA interface |
| miniSAS | 2 miniSAS ports |
| Smart | |
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
| VCA Search | Face search, Behavior search |
| Statistical Analysis | People counting |
| Disk Array | |
| Array Type | RAID 0/1/5/6/10/50/60 |
| External Interface | |

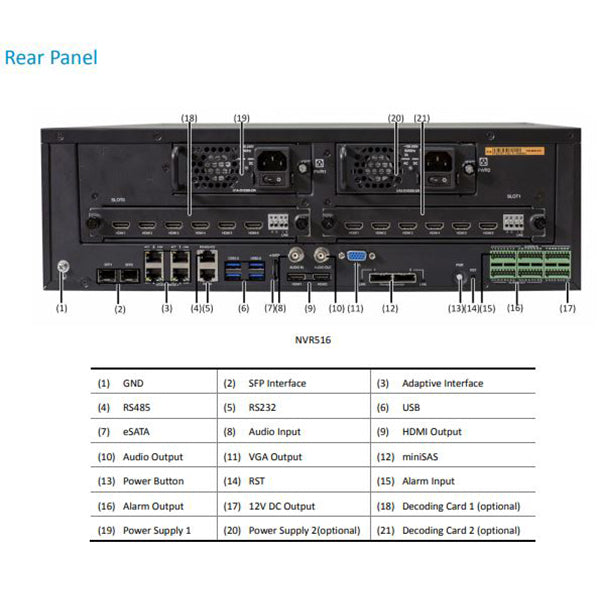

| Network Interface | 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface |
| Serial Interface | 1 x RS232, 1 x RS485 |
| USB Interface | Rear panel: 4 x USB3.0 |
| Alarm In | 24-ch |
| Alarm Out | 8-ch |
| Decoding Card (optional) | 2 slots (4-ch HDMI or 6-ch HDMI outputs per card) |
| Power Output | 12V |
| General | |
| Power Supply | 100 ~ 240V AC Power Consumption: ≤ 50 W( without HDD ) |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Chassis | 19-inch rack-mounted 3U chassis |

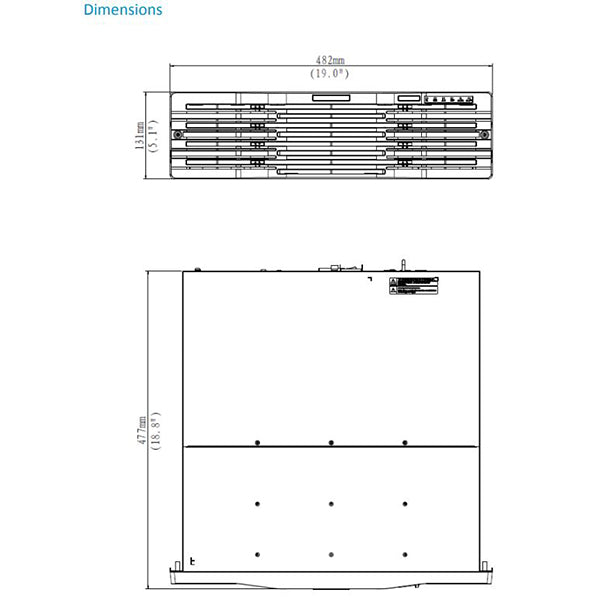

| Dimensions (W×D×H) | 482mm ×477mm × 131mm (18.8"× 19.0" ×5.1") |
| Weight (without HDD) | ≤ 10 Kg ( 22.05 lb ) |
Downloads
Data Sheet
Quick Start Guide
User Manual
ONVIF COMPATIBILITYIf you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
