Trine - 4100 - 4-7/8” Electric Strike - One Box Solution - Fire Rated ANSI - Optional Finish - Grade 1

In Stock
SKU: TRN-4100-32D
NSID: 7190 36550 36549

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$346.47
$405.20
$346.47
Finish: Satin Stainless Steel

TRN-4100

Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accommodate for door sag. We include the 4 most used faceplates to make specifying and installing easy

  • Grade 1 Electric Strike -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs. Holding Force
  • Four popular faceplates included -- including the 4 most used faceplates in the box makes specifying and installing easy Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accomodate for door sag.
  • 1 - 3/8” Shallow backset -- the 4100 low profile electric strike can be used in 2” fire rated frames with 1/2” sheetrock ingress
  • Low Current Draw -- .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need
  • The included CCTS covers the gap when retrofitting the HES® 1006, Folger Adams® 712/732, and Von Duprin® 6200 Series or even Trine EN Series strikes. No more ugly trim skirts. The CCTS always matches the faceplate finish.
  • Why cut for a deadbolt 100% of the time when they are only used 5% of the time.
  • Patented # US20110241361
  • Cutout Specification A115.1 (with Slight Jamb Modification)
Call 1-800-878-6604 for Bulk / Dealer Pricing!

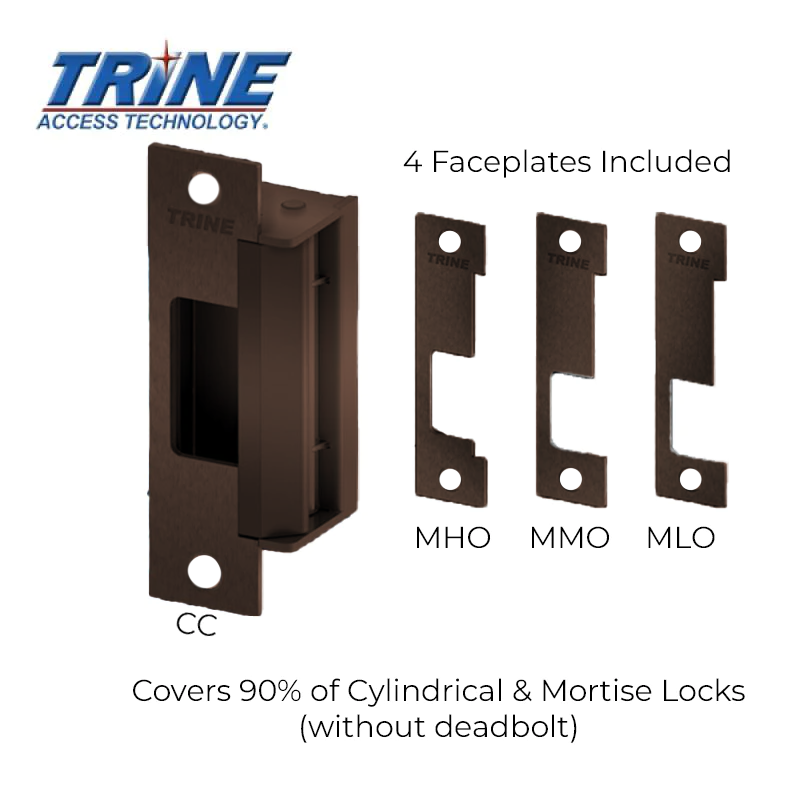

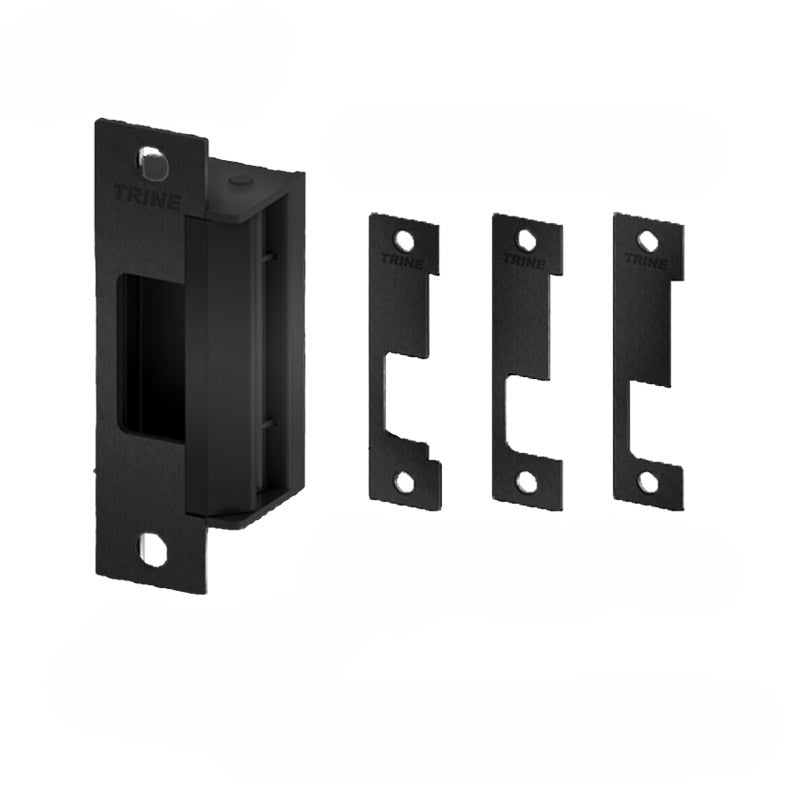

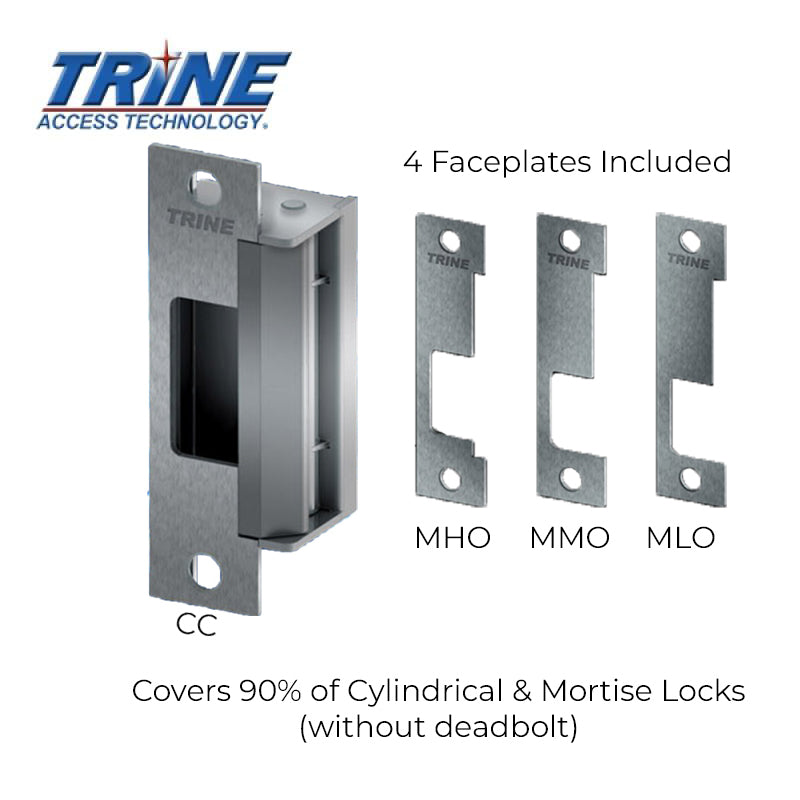

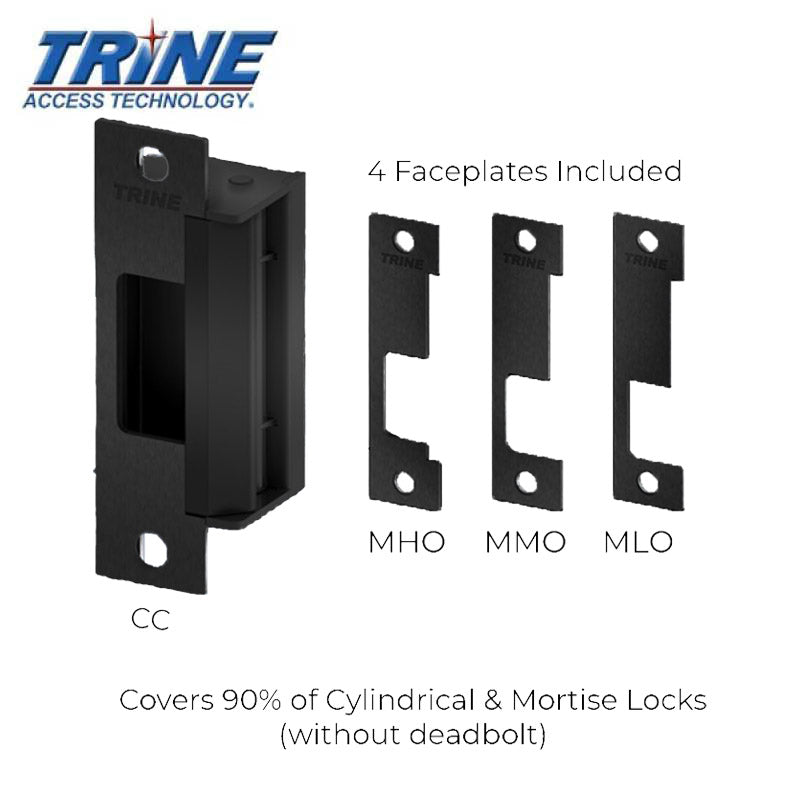

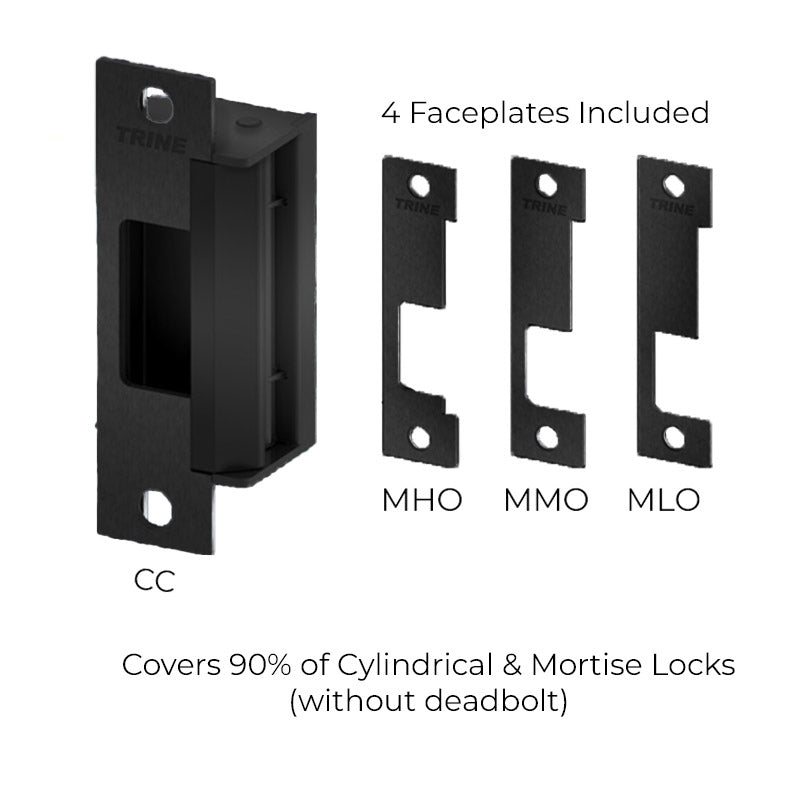

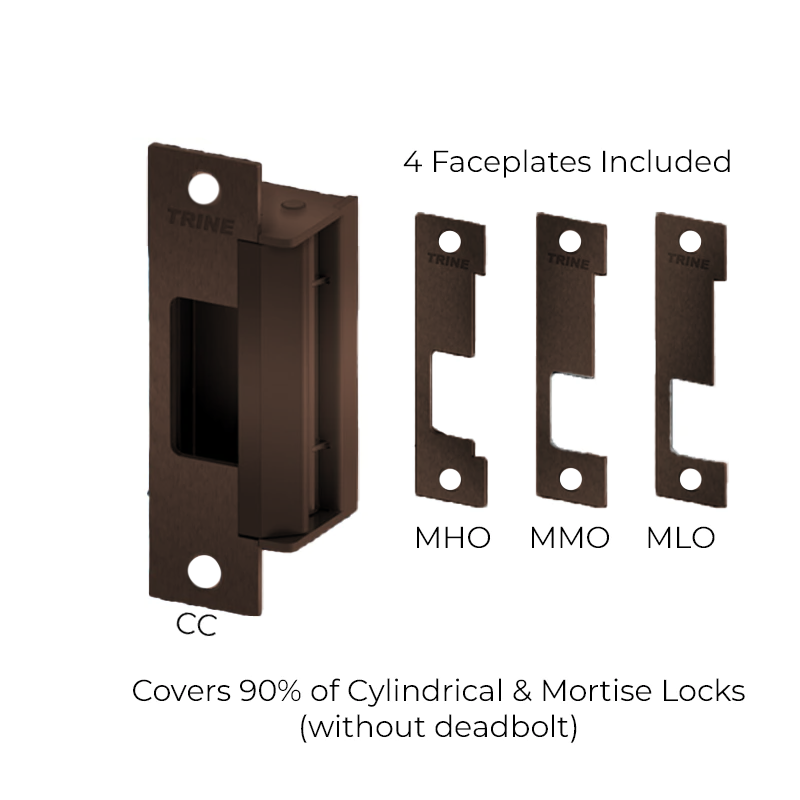

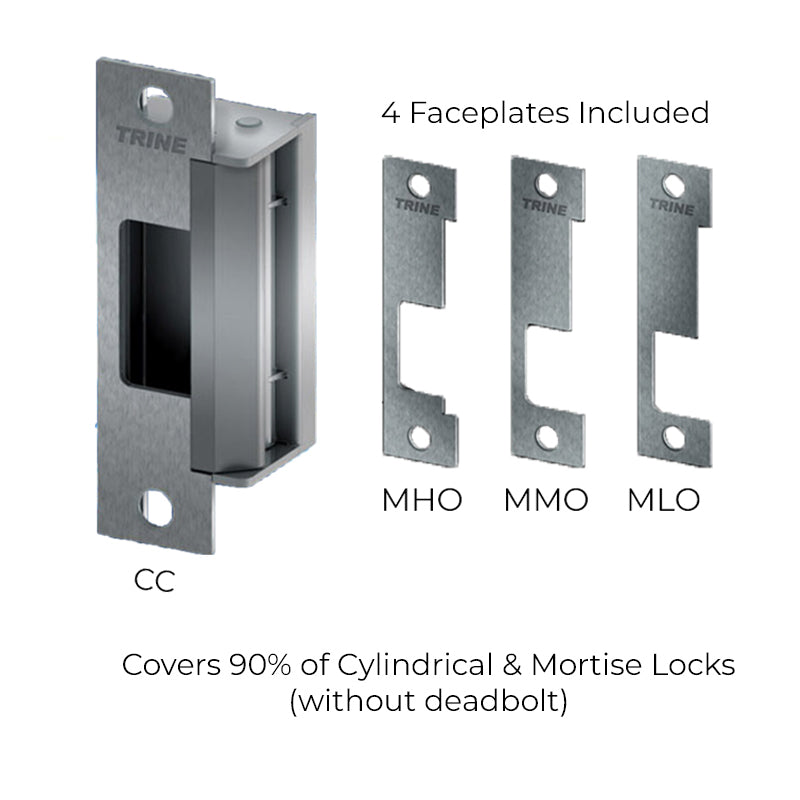

Faceplates Included:

  • CC: Centered Cylindrical (Reference HES® J faceplate) Cylindrical Locksets up to 3/4" throw and all locksets center lined bolts: Corbin Russwin® Security Bolt, Weiserbolt ®.
  • MHO: Mortise High Offset (Reference HES® KM faceplate) Accurate®, Arrow®, Best ®, Corbin Russwin®, Falcon® (1992M Series), Sargent ® (7800, 8200 & 9200 Series), Yale® (8800).
  • MMO: Mortise Medium Offset (Reference HES® K faceplate) Baldwin®, Marks®, PDQ®.
  • MLO: Mortise Low Offset (Reference HES® KD faceplate) Jackson®, Sargent® (7700 & 8100), Schlage® (L Series), Yale® (8700).



Volts Current Ohms (Ω) Duty Sound Wire Color
12DC 0.240 A 50 Ω Intm./Cont. Silent Blue/Red
24DC 0.114 A 210 Ω Intm./Cont. Silent Brown/Red
12AC 0.210 A 50 Ω Intm. Buzz Blue/Red
16AC 0.280 A 50 Ω Intm. Buzz Blue/Red
24AC 0.420 A 50 Ω Intm. Buzz Blue/Red
