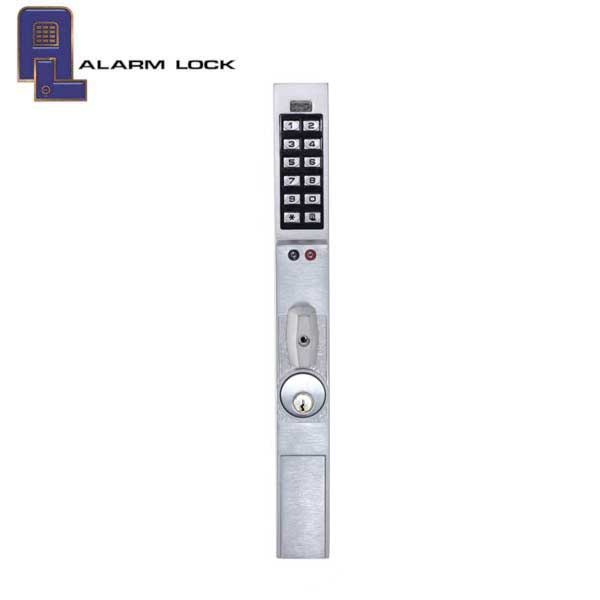

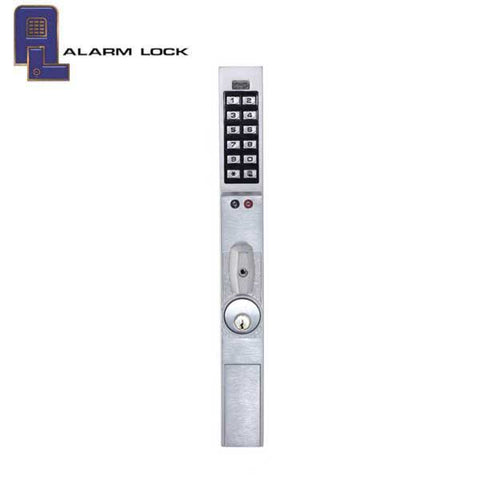

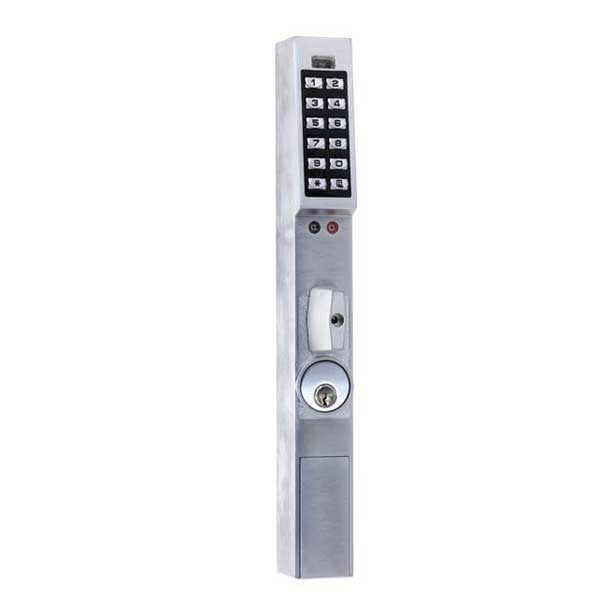

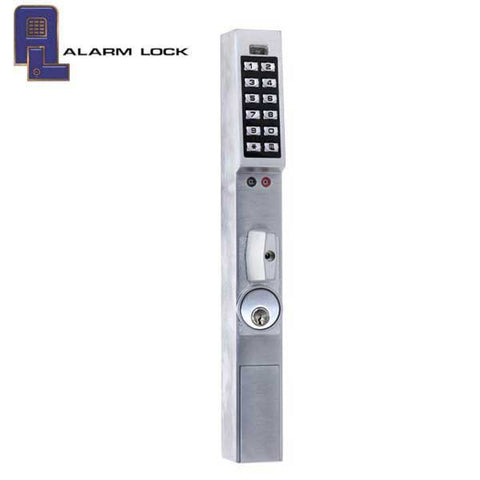

*Discontinued* Alarm Lock Trilogy - DL1225 - Narrow Stile Keypad Turnpiece Lock - 26D - Satin Chrome - Grade 1
- $336.35
-
$843.00 - $336.35
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
ALL-DL1225-26D
Trilogy Narrow Stile Digital Keypad Turnpiece Lock models support swing & hook bolt products. Get field-proven Trilogy® keyless access lock convenience anywhere there's a Narrow Stile compatible door. Weatherproof, all-metal, and vandal-resistant, they offer automatic lock or free passage schedules to Adams Rite® swing & hook bolt applications, emergency global lockdown in seconds, and have unsurpassed battery life. The DL1200 series is a rugged entry lock of advanced design with several programmable features.
More Information Below
- $336.35
-
$843.00 - $336.35
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSPECIFICATIONS:
| LOCK FUNCTION | Entrance Keypad Turnpiece Lock |
| DOOR THICKNESS | Only Stile thickness 1 ¾" |
| BACKSET | 31/32”,1 1/8’ and 1-1/2” |
| HANDING | Non-handed; fully field-reversible |
| MECHANICAL DEADBOLT | Thumb Turn compatible with Adams Rite 4070, MS18505, MS1950 series deadbolt |
| POWER | Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert |
| CYLINDER | 1-1/4” supplied (Supports 1-1/8, 1-1/4, and 1-3/8”) |
| PROGRAMMABLE | Yes |
| USER CODES | keypad supports 100 users, fingertip/keypad programmable |
| WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
| FINISH | US26D Satin Chrome |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
Downloads:
Brochure
Specifications
