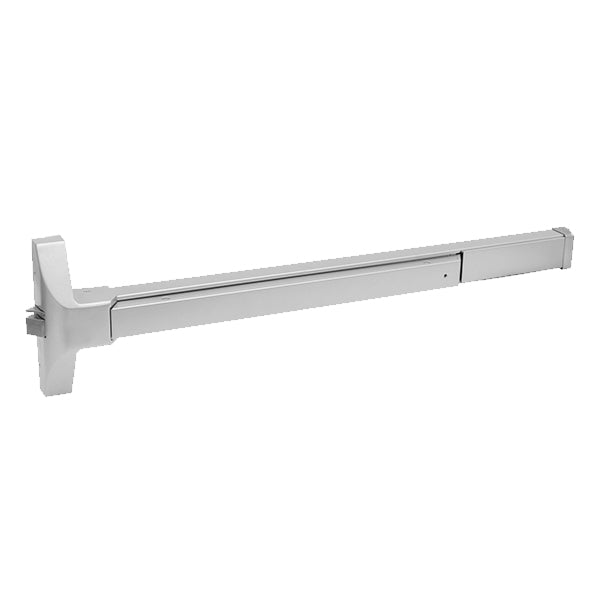

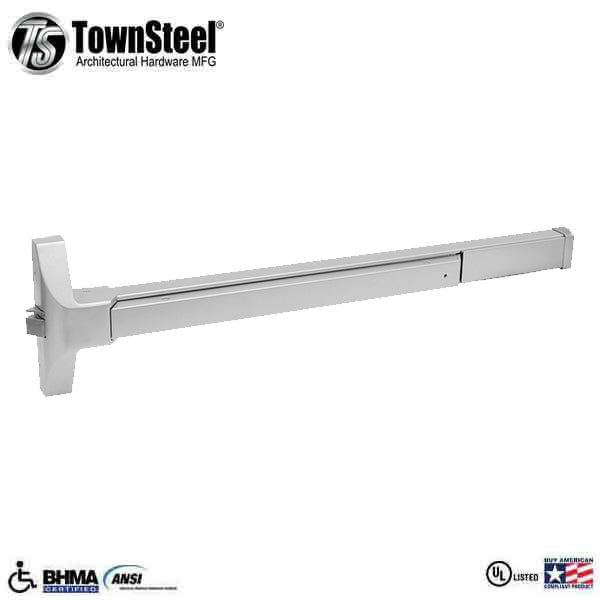

TownSteel - ED3700 - Narrow Stile Rim Exit Device - 36" - Satin Stainless Steel - Grade 1
In Stock
SKU:
TNS-ED3700-36-630
NSID:
37336
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
Specifications
- All devices are non-handed or reversible design.
- UL Listed for Fire Exit hardware, 3 hours.
- “A” Label (3 hr) rating on pairs of doors up to 8’ x 8’ for same or double egress.
- All internal components are made of electro-plated corrosion-resistant alloy.
Specifications
| Application |
For all types of single or double door with a mullion |
| Push Bar Projection |
Neutral- 3 9/32" Depressed- 2 17/32" |
| Strike |
900 rigid strike standard |
| Dogging | 1/2" hex key standard |
| Latch bolt |
Stainless Steel, 3/4″ throw |
| Door Size |
36" standard |
| Handing | Non-handed |
| Finish | Satin Stainless Steel |
| Mounting Height |
41" from CL to finished floor |
| Shim Kit |
950 Shim Kit Standard |
| Certifications |
ANSI/BHMA - A156.3-2008 Grade 1 Certified UL - UL 305 panic hardware listed |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
