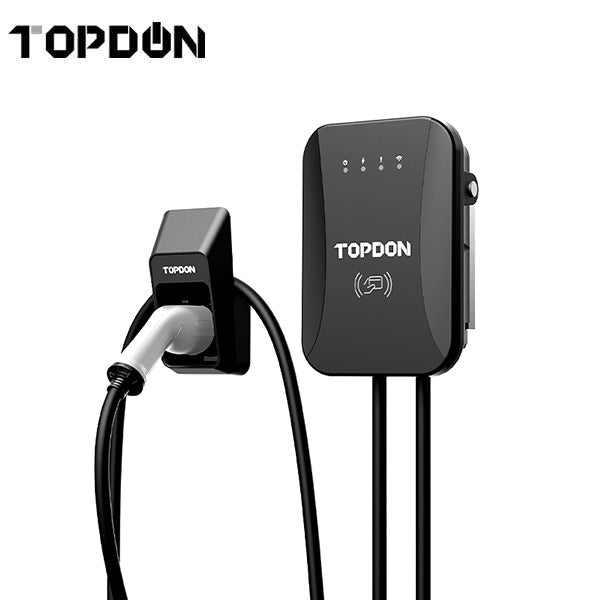

TOPDON - PulseQ AC Home EV Charger - EV Charger With Holster - Optional Cable Length
Available to Order
SKU:
TPD-TD52130116
NSID:
- $598.99
-
$778.80 - $598.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
TPD-TD5213011XXXX
TOPDON's PulseQ is the first of TOPDON's EV charging stations. Offering versatility, adaptability, and smart technology to users, the PulseQ makes EV charging widely accessible. An SAE J1772 (Type 1) plug makes the PulseQ compatible with most American AC electric vehicles, eliminating most brand barriers to electric vehicle owners. The compact design and multiple mounting options save space in garages; mount the PulseQ outside to prevent taking up interior space. The charging station's interface can be accessed and adjusted through an app to set charging sessions during off-hours and to monitor the charging process
Features
- Expanded Compatibility With SAE J1772 (TYPE1) Connector
- Level 2 Charger With UL Certification
- Work Easier With Intuitive App
- Plug-and-Play & App Control
- Compact Design & Easy Installation
- Made with flame-retardant materials
- The PulseQ is equipped with multiple safety features to ensure safety under any circumstance.
- The PulseQ EV Charger comes with a rugged charging cable made of PVC and copper
-
Specifications
| Charging Mode |
APP-controlled & Plug and Play |
| Indicator Lights |
4 LED Lights: standby, charging, fault, and network |
| AC Power Input/Output Voltage |
Level 2 AC-208-240V |
| Adjustable Current |
6-40A |
| Rated Frequency |
50/60 Hz |
| Plug | NEMA 14-50 |
| Connector Type |
SAE J1772 (Type 1) |
| Box Dimensions |
12.2 x 8.6 x 3.7 inches (310 x 220 x 95 mm) |
| Standard Cable Length |
16.4 ft. (5 m) |
| Optional Cable Length |
24.6 ft. (7.5 m) |
| Weight | 15 lbs. (7 kg) |
| Working Temperature |
-22 ~ 131℉ (-30 ~ 55℃) |
| Storage Temperature |
-40 ~ 167℉ (-40 ~ 75℃) |
| Enclosure |
PC + ASA |
| Cable | PVC + Copper |
