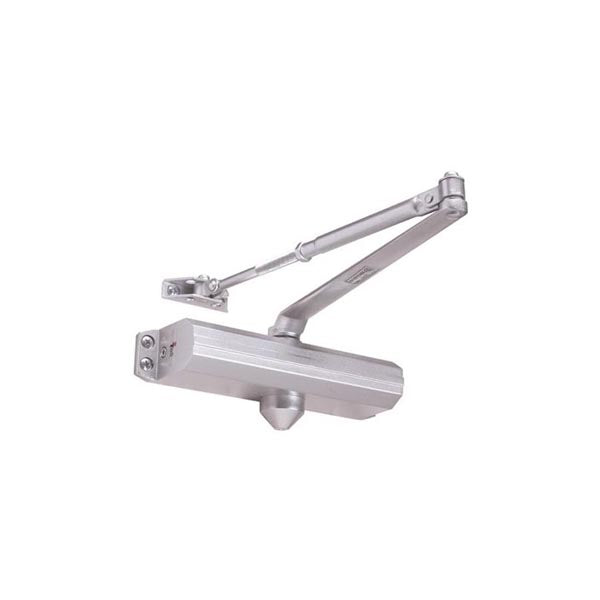

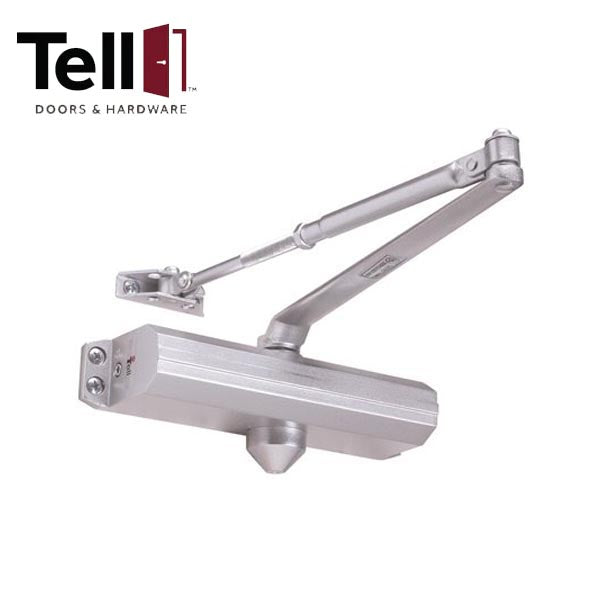

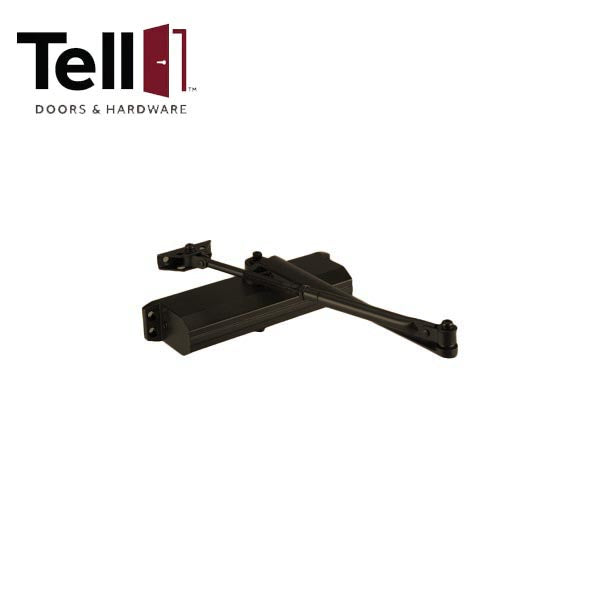

TELL - Heavy Duty Commercial Door Closer - Parallel Arm Bracket - Adjustable Arm - 3-6 - Full Cover - Backcheck - Optional Finish
Available to Order
SKU:
TELL-DC100209
NSID:
52342
52343
- $115.50
-
$144.38 - $115.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 600 Series door closer is a grade 1, heavy duty cast aluminum surface applied door closer, designed for interior commercial use and comes with hardware for all installation applications. This closer complies with ANSI A156.4, UL/ULC listed up to three hours fire rated.
Specifications:
| Performance | Complies with ANSI A156.4 Grade 1, 2,000,000 cycles UL/ULC listed up to 3 hours fire rated |
| Chassis | Cast aluminum |
| Handing | Non-handed |
| Mounting | Tri-Pack – regular, top jamb and parallel arm applications |
| Arm | Forged steel Accommodates reveals up to 3 1/4” Adjustable extension arm |
| Spring Power |
Adjustable sizes 1 - 4 or 3 - 6 |
| Backcheck | Adjustable, hydraulic - providing cushioning and preventing uncontrolled openings of the door |
| Valves | Adjustable, independent Non-critical – sweep and latch Consistent closing speeds |
| Fasteners | Metal screws included for hollow metal and aluminum mounting applications Wood screws included for wood door mounting applications Thru-bolts optional |
| Cover | High impact plastic streamlined cover |
| Door Range |
Up to 180 degrees |
| Door Preparation |
9-1/16” horizontal x 3/4” vertical 4-Hole mounting locations Retrofits traditional closer |
| Warranty | Lifetime limited |
