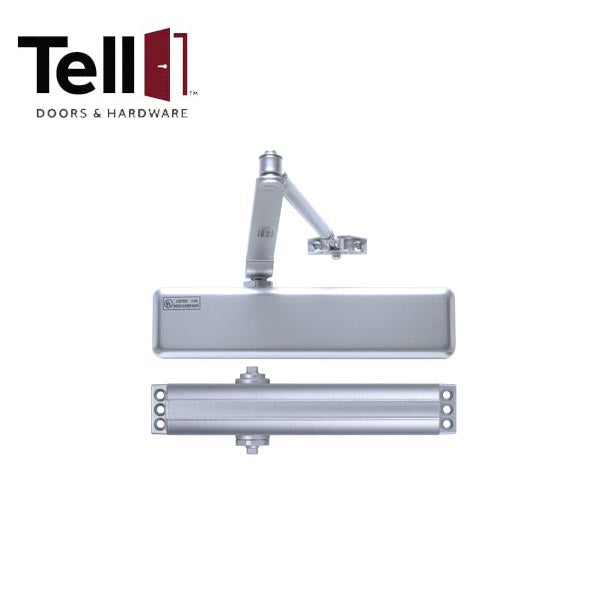

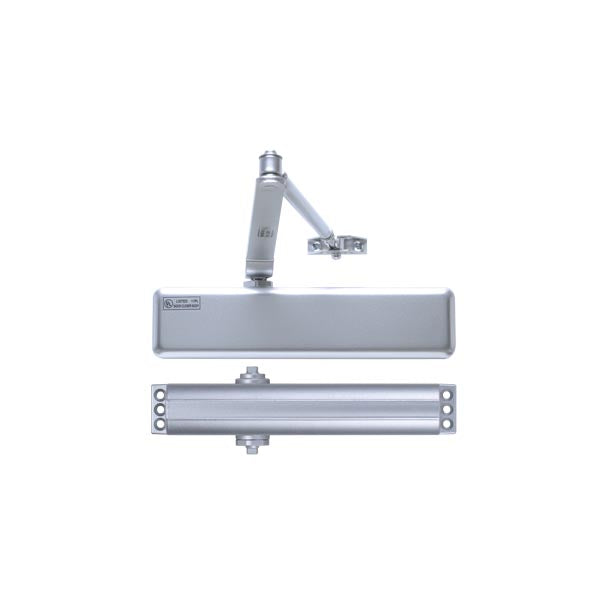

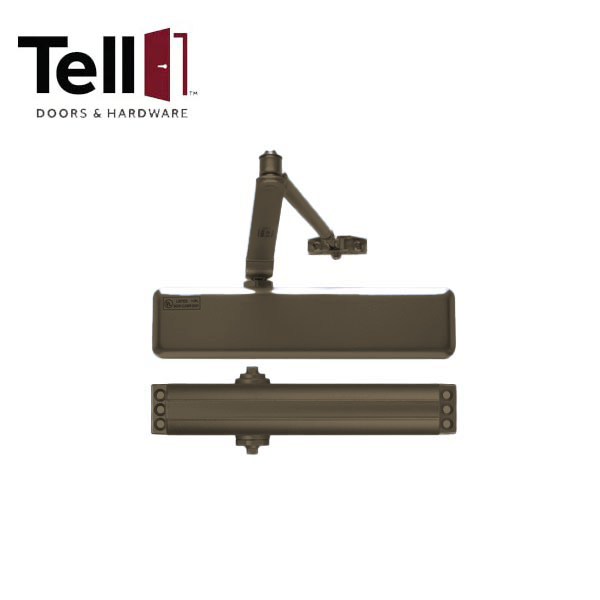

TELL - Heavy Duty Commercial Door Closer - 700 Series - Parallel Arm Bracket - Adjustable Arm - 1-6 - Full Cover - Backcheck - Optional Finish - Grade 1
Available to Order
SKU:
TELL-DC100316
NSID:
52349
52350
- $153.00
-
$191.25 - $153.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 700 Series door closer is a grade 1, heavy duty cast aluminum surface applied door closer, designed for commercial use and comes with hardware for all installation applications. This closer complies with ANSI A156.4, UL/ULC listed up to three hours fire rated. It comes in an adjustable 1 - 6 size for most standard door openings.
Specifications:
| Performance | Complies with ANSI A156.4 Grade 1, 2,000,000 cycles UL/ULC listed up to 3 hours fire rated |
| Chassis | Cast aluminum |
| Handing | Non-handed |
| Mounting | Regular arm Parallel arm Top jamb |
| Arm | Forged steel Accommodates reveals up to 3 1/4” Adjustable extension arm |
| Spring Power |
Adjustable sizes 1 – 6 Interior and Exterior Applications |
| Backcheck | Adjustable, hydraulic - providing cushioning and preventing uncontrolled openings of the door |
| Valves | Adjustable, independent Non-critical – sweep and latch Consistent closing speeds |
| Fasteners | Metal screws included for hollow metal and aluminum mounting applications Wood screws included for wood door mounting applications Thru-bolts are included |
| Cover | High impact full plastic cover, non-handed |
| Door Range |
Up to 180 degrees |
| Door Preparation |
11-1/8” horizontal x 9/16” vertical 6-Hole mounting locations Retrofits traditional closer |
| Warranty | Lifetime limited |
