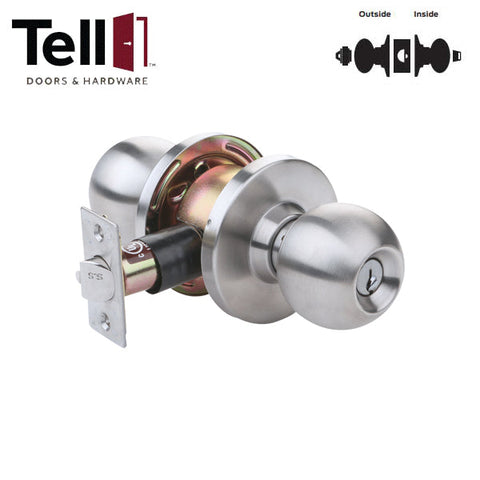

TELL - CL100031 - Heavy Duty Cylindrical Knob - Satin Stainless - 2-3/4" Backset - Grade 2 - Entrance
In Stock
SKU:
TELL-CL100031-US32D
NSID:
51959
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $62.25
-
$77.81 - $62.25
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

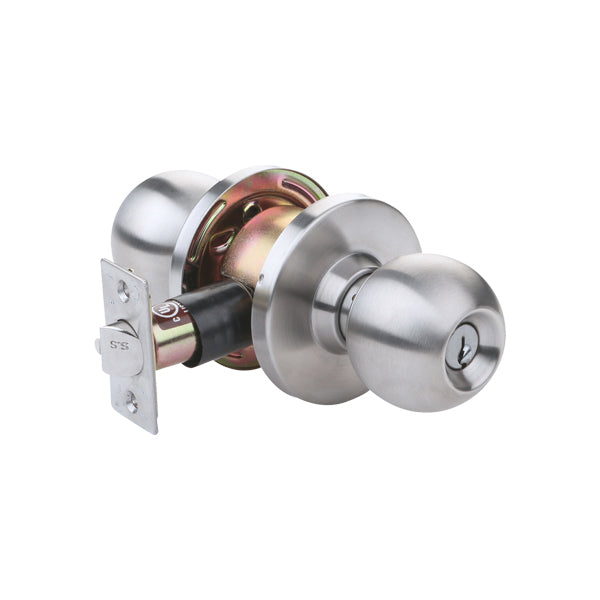

The KC2300 Series Empire Ball Knob is a grade 2 cylindrical, heavy duty knob in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These knobs can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes available.
| Performance | Complies with ANSI A156.2, Series 4000 Grade 2, 400,000 cycles UL/ULC listed for 3 hour fire door |
| Chassis |
Cylindrical Steel - coated with zinc dichromate (corrosion resistance) |
| Latch | 2-3/4” Backset 1” Housing diameter 1/2” Stainless steel throw 1-1/8” x 2-1/4” Square corner faceplate Optional 2-3/8” Backset |
| Strike | ASA Strike 1-1/4” x 4-7/8” Optional T-Strike 1-1/8” x 2-3/4” Optional F-Strike (full lip) |
| Rose | 3” diameter |
| Cylinder | SCC - C keyway 6-pin solid brass Keyed different (KD) |
| Keys | Two nickel silver per lock cylinder |
| Door Preparation | 2-1/8” diameter for knob 1” diameter for latch bolt Fits standard 161 door prep |
| Door Range | 1-3/8” - 1-3/4” |
| Warranty | Lifetime limited |
