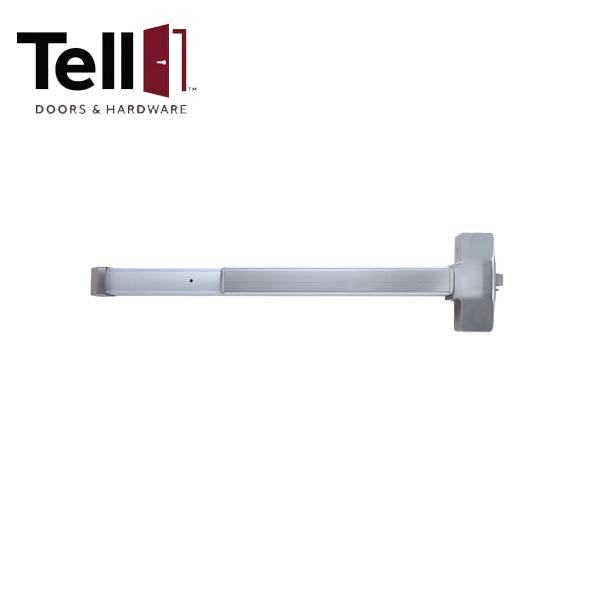

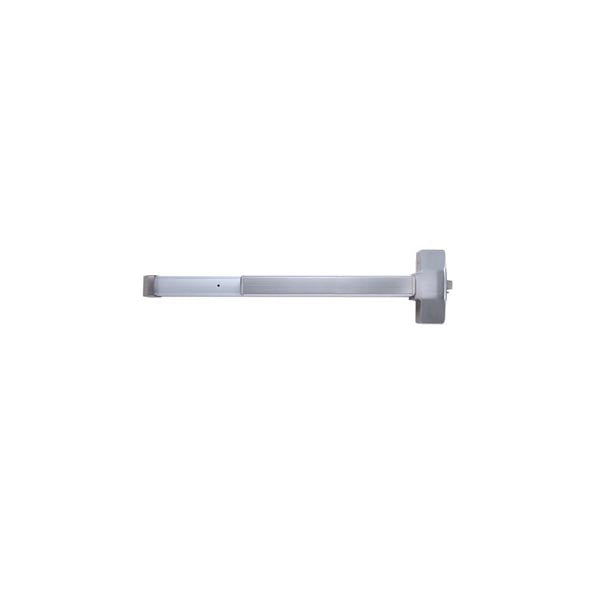

TELL - 9500 - Architectual Rim Exit Device - Heavy Duty - Grade 1 - Stainless Steel - 48"
Available to Order
SKU:
TELL-EX100076
NSID:
52392
- $675.00
-
$843.75 - $675.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 9500 Series Exit Device is a grade 1 heavy-duty, steel architectural rim exit device. ADA compliant and ANSI approved for maximum safety.
Specifications:
| Performance | Complies with ANSI A156.3, 2001 Grade 1 UL/ULC Listed |
| Latch | Stainless steel ¾” throw Deadlatch feature |
| Backset | 2-3/4” |
| Strike | Made with slotted holes for adjustments |
| Cylinder | SCC - C keyway 6-pin solid brass Keyed different (KD) |
| Fasteners | Accommodates wood or metal doors Thru bolts standard |
| Door Range |
1-3/4” – 2-1/4” |
| Door Preparation |
Surface mounted |
| Finishes | US26D – Satin Chrome US3 – Bright |
| Warranty | Lifetime limited |
| Exterior Trim |
Exterior pull blank or cylinder Ball knob trim Lever trim Thumbpiece trim with rim cylinder Escutcheon lever trim 3-hour fire rated device Other strikes available |
