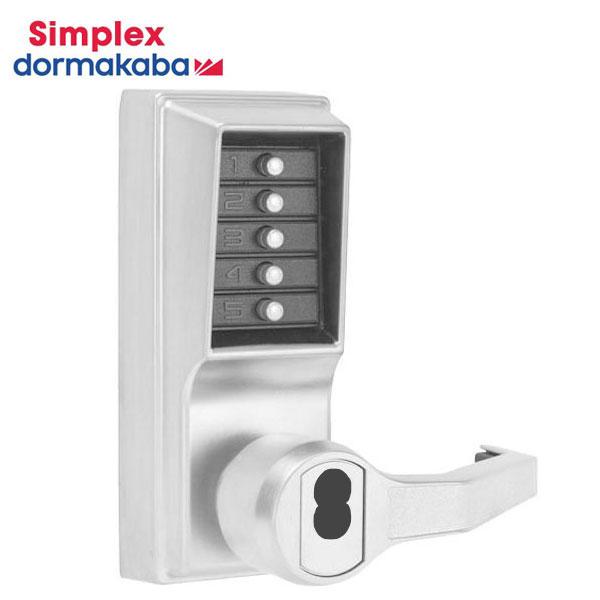

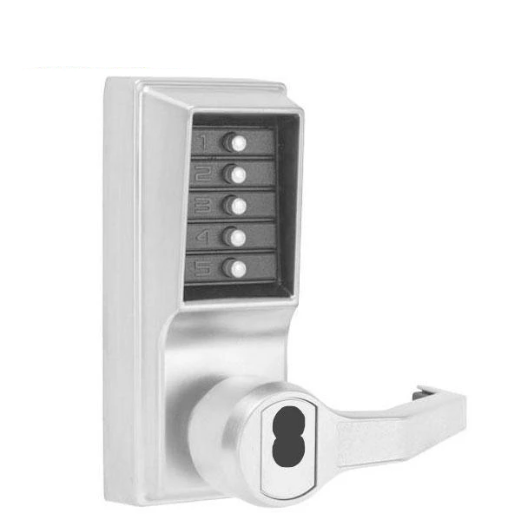

Simplex - LR1021B - Mechanical Pushbutton Cylindrical Lever Set - SFIC - 2¾" Backset - Satin Chrome - RH/RHR
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $457.32
-
$699.96 - $457.32
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex L1000 Series provides exterior access by combination, while allowing free egress. Combination & Key Override. Core not included.
Features:
- Fully mechanical lock eliminates the material and labor expense of battery replacements
- Single access code—one easy-to-manage code for all users
- Lock is easily programmed via keypad without removing lock from the door
- Factory-handed for Right Hand or Right Hand Reverse.
- Key Override: Small Format Interchangeable Core (SFIC)
- Pushbutton Access

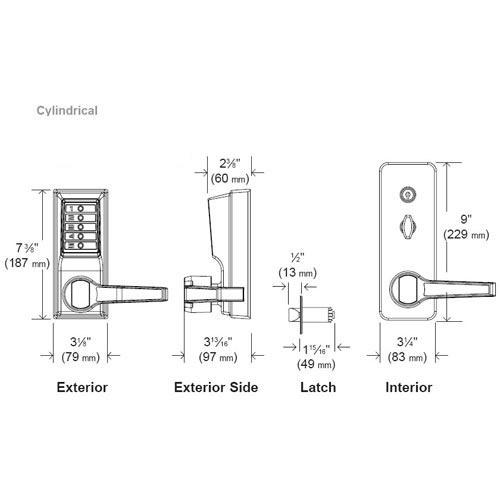

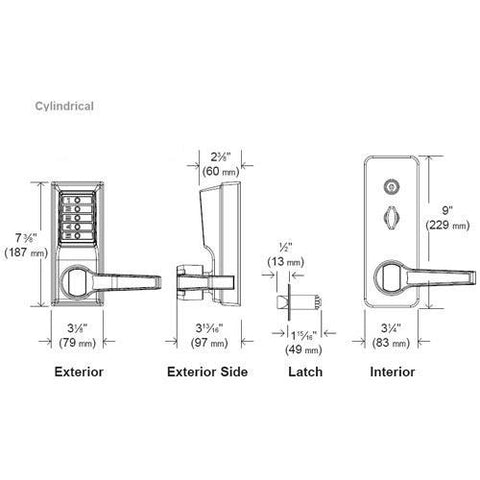

Specifications:
Construction: |
Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers |
Locking Device: |
Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (70 mm) backset (UL listed) |
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
Handing: |
Right Hand or Right Hand Reverse |
Finish: |
Satin Chrome 26D (626) |
Key Override: |
SFIC, Best and Equivalents (6 or 7-pin length); core not included |
Backset: |
2¾" (70 mm) backset |
Latch: |
½" (13 mm) throw latch, floating face plate |
Minimum Stile Recommended: |
5" (127 mm) |
Strike: |
Standard strike plate; ASA strike plate |
Door Preparation: |
Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes. |
Door Thickness: |
1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Durability: |
D.O.D. Compliant 5220.22M for supplemental access control; weather resistant |
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
Warranty: |
3 years manufacturer warranty |
Downloads:
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
