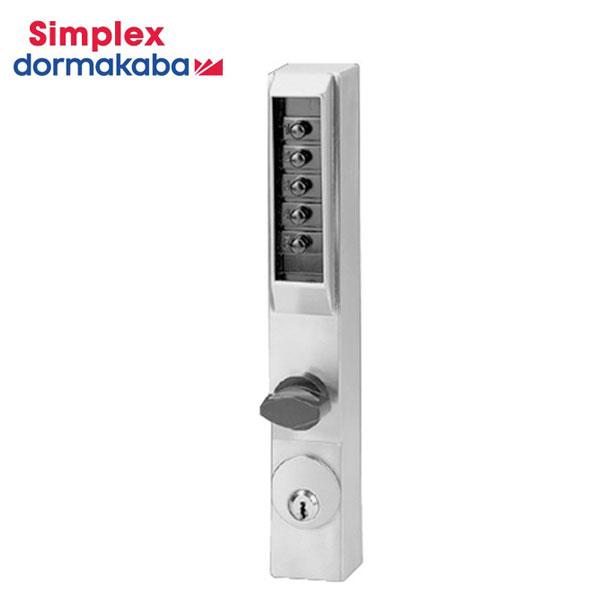

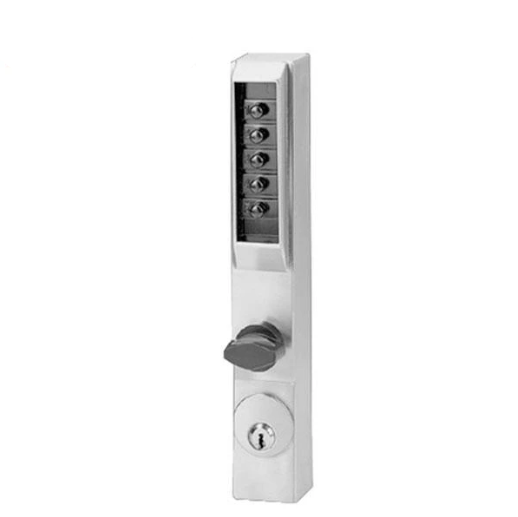

Simplex - 3001 - Pushbutton Narrow Stile Thumbturn Lock - Passage/Lockout - Satin Chrome
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $239.15
-
$214.99 - $239.15
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex 3000 mechanical pushbutton lock provides exterior access by combination for narrow stile aluminum glass doors. Includes key override. For complete installation, a housing and drive assembly are required Required mounting hardware not included (sold separately here ---> LH/LHR or RH/RHL)
Features:
- Fully mechanical lock eliminates the material and labor expense of battery replacements
- Single access code—one easy-to-manage code for all users
- Lock is easily programmed via keypad without removing lock from the door
- Non-handed; required drive assembly is factory-handed, not field reversible
-

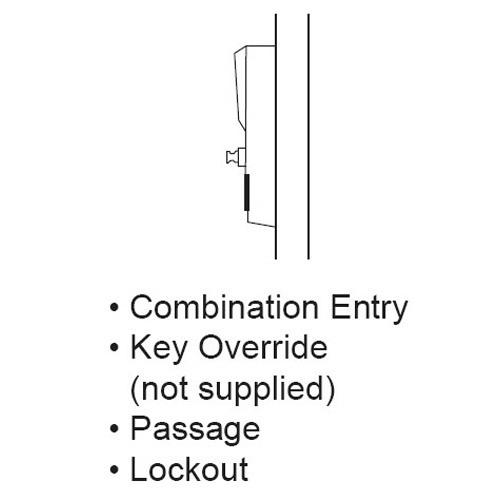

Operation Modes: Pushbutton Access, Passage—allows access without using the lock entry code. Feature activated from the outside using cylinder override key. Lockout—disables the lock so that entry code cannot be used to gain access. Access is permitted using the key override only. This is activated from the outside using the cylinder override key.
Specifications:
Construction: |
All metal cast front housing, force-resistant, clutch-protected fixed thumbturn |
Locking Device: |
Adams Rite 4510/4710/4910 mortise latch |
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
Handing: |
Non-handed; required drive assembly is factory-handed, not field reversible |
Finish: |
Satin Chrome 26D (626) |
Key Override: (not included) |
Accepts Maximum Security (MS) mortise cylinders; can be used to override the lock combination and gain access using a key. Allows facilities to initiate or maintain a master-keyed security system (keyed alike or keyed differently). |
Backset: (not included) must be chosen from driver assembly |
|
Latch: |
Purchased separately |
Minimum Stile Recommended: |
1⅞" (48 mm) minimum, required for mounting |
Strike: |
Sold separately |
Door Thickness: |
1¾" (44 mm) maximum |
Durability: |
Weather Resistant |
Certification: |
BAA/NAFTA certified |
Warranty: |
1 year manufacturer warranty |
This Lock needs a drive assembly and an Adams Rite lock to work. It will NOT operate as a stand alone lock with out these other parts. We sell everything needed to operate but they must be purchased separately. Find the Left and Right Handed drive assembly here
