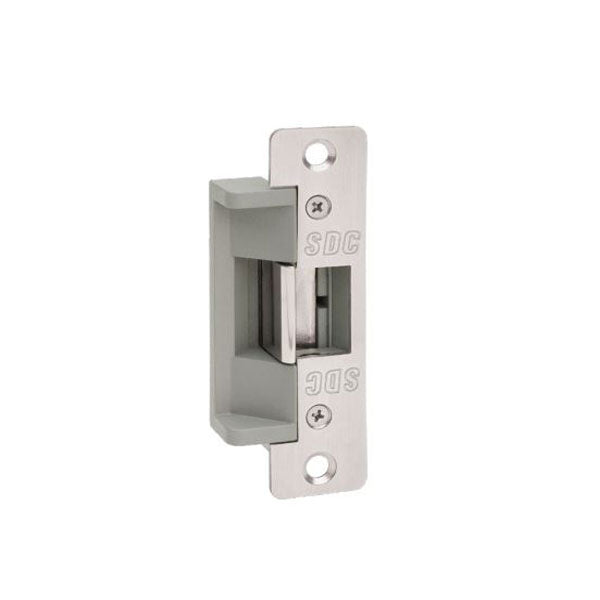

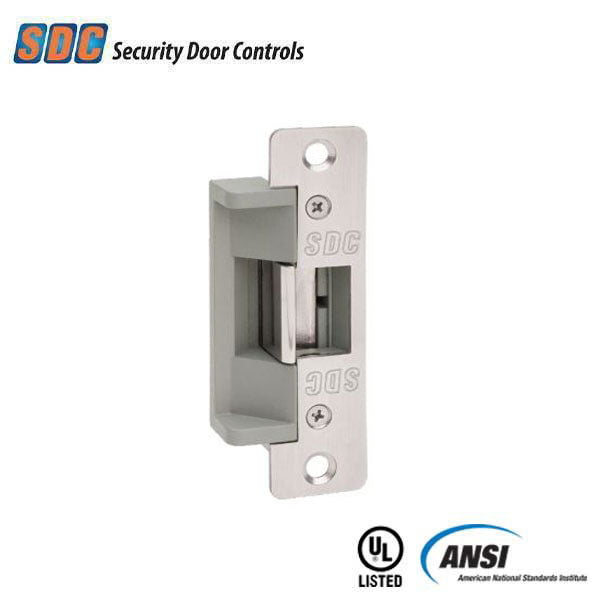

SDC - 15-4S-24U - Electric Strike - Fail Secure - 5/8" Latchbolt - 24VDC - Stainless Steel
In Stock
SKU:
SDC-15-4S-24U-630
NSID:
32136
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $59.25
-
$71.10 - $59.25
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SDC’s 15 series value 5/8” latchbolt electric strikes are centerline latch entry strikes designed for use with cylindrical locksets and metal frames. The 15 series electric strikes incorporates all stainless steel deadlocking mechanism and an internally mounted solenoid. The compact low profile design enables quick and easy installation where jamb space is limited.
Features:
- For use with 5/8'' latchbolt, or up to 3/4'' latchbolt with 1/8'' door gap
- Fail secure
- Non-handed
- All stainless steel parts with durable die case body for corrosion resistance
- 630 Satin stainless steel face plate
- ANSI A156.31 compliant Specify 24VDC
- Not recommended for wood applications
Specifications:
| Construction: | Hollow Metal / Aluminum |
| Operation: | Fail secure |
| Latchbolt: | 5/8” Throw, Up to 3/4” Throw with 1/8” Door Gap |
| Voltage: | 24 VDC ± 10% |
| Current: | 150 mA @ 24 VDC |
| Faceplate: | Radius Corner Stainless Steel, 4-7/8” x 1-1/4” |
| Keeper Depth: | 1-1/2” |
| Finish: | Stainless Steel - 630 |
| Certifications: | ANSI A156.31 compliant |
