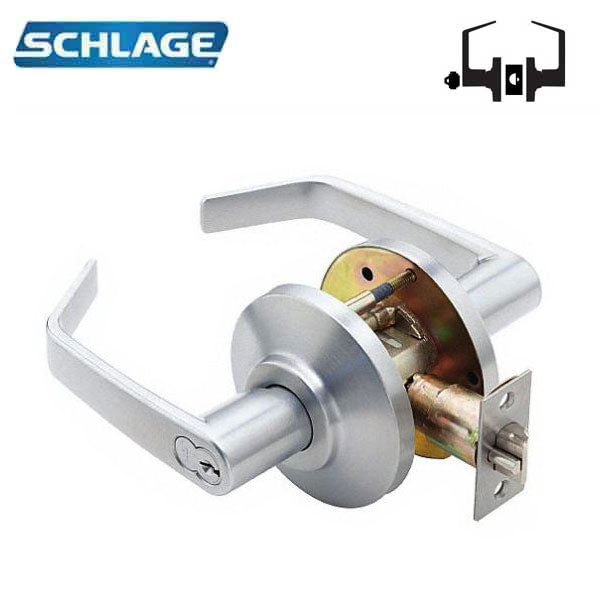

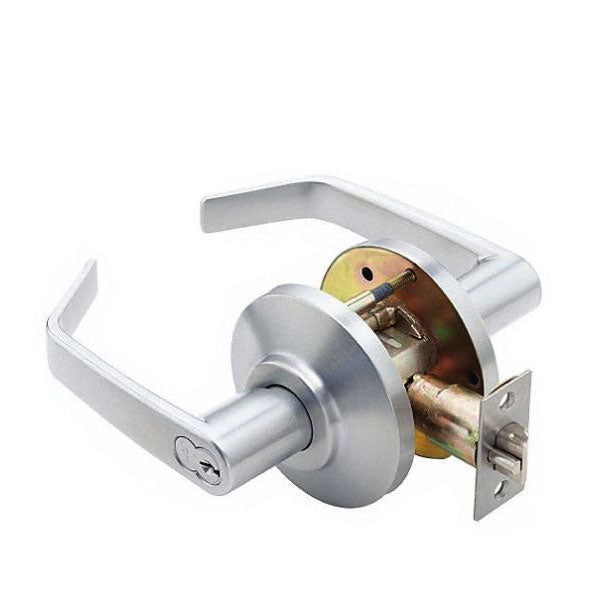

*Discontinued* Schlage - ND70BDC - Commercial Lever Set - Classroom Lock - SFIC - Disposable Core - Satin Chrome - Rhode Lever - Fire Rated - Grade 1
Out of Stock
SKU:
SCH-ND70BDC-RHO-626-delete
NSID:
31935
- $355.00
-
$426.00 - $355.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SCH-ND70BDC-RHO-626
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
Features
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- Comes with SFIC Disposable Core, for temporary use.
- Permanent core not included
- Fire Rated for 3 Hours
- TLR - Tubular Lever Style
- Outside lever locked and unlocked by key.
- Inside lever always free for immediate egress.
- $355.00
-
$426.00 - $355.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Chassis | |
| Material | Stainless Steel / Zinc |
| Door Thickness | 1 5⁄8" to 2 1⁄8" |
| Trim | |
| Lock Function | Classroom Lock - Outside lever locked and unlocked by key. |
| Handing | Non-Handed |
| Lever | Rhode Lever |
| Finish | 626 - Satin Chrome |
| Latches | |
| Backset | 2 3⁄4" |
| Faceplate Size | 1 1⁄8" x 2 1⁄4" |
| Bolt | 1⁄2" throw |
| Strike | ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" |
| Keying | |
| Formats | 3 Schlage |
| Access security | 6-Pin |
| Cylinder | SFIC Disposable Core |
| Fire Rated | 3 Hour Positive pressure |
| Certifications |
ANSI/BHMA, ICC, UL/cUL |
| Manufacturer Warranty | 10 years mechanical |
Dimensions RHODES
