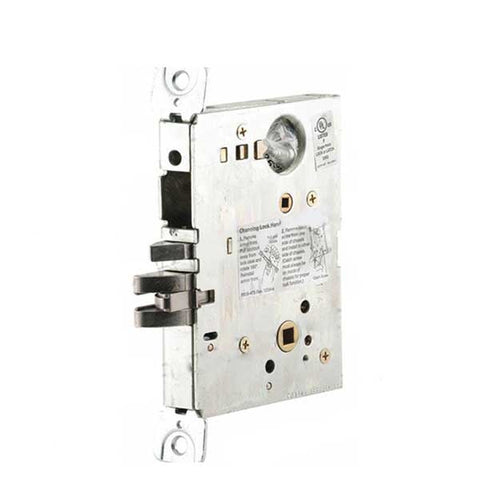

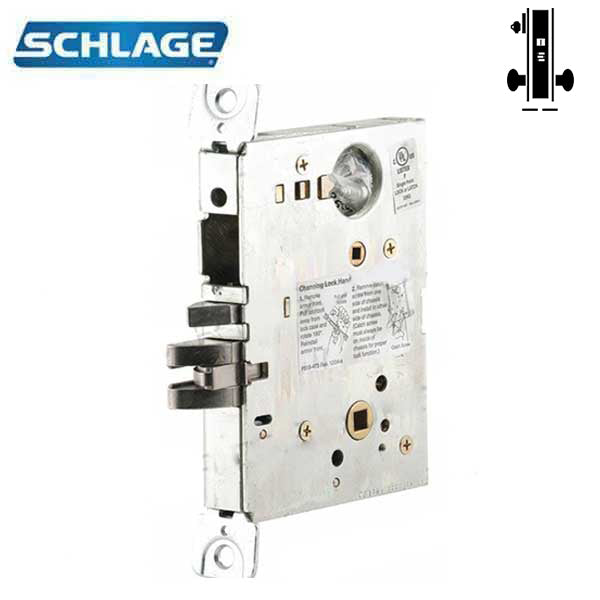

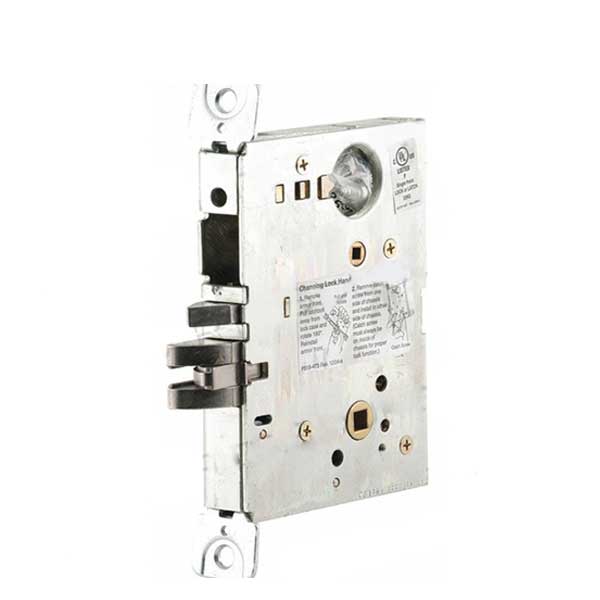

Schlage - L9080LB - L Series Mortise Lock Body - RH - Storeroom - Grade 1
Available to Order
SKU:
L9080LB-RH-134
NSID:
16911
- $209.87
-
$312.00 - $209.87
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Schlage L Series has long been the benchmark for mortise locks.
Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application.
Features
- Grade 1
- UL Listed & Fire Rated up to 3 Hours
- Unsecured failures prevented by break-away spindle, also providing easy spindle replacement
- Universal lock case featuring ten functions in one case
Specifications
| Lock Function | 9080-Storeroom - Latchbolt retracted by key outside or by knob/lever inside. |
| Handing | Right Hand |
| Door Thickness | 1-3/4" (44 mm) |
| Cylinder | No Cylinder - Lock Body Only |
| Backset | 2-3/4" (70 mm) only |
| Bolt | 1" (25 mm) throw stainless steel deadbolt |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Material | Stainless Steel / Zinc |
| Case size | 4-7/16" x 3-5/8" x 1" (113 mm x 92 mm x 25 mm) |
| Spacing | Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm) |
| Strike | 1-1/8" x 3-1/2" (29 mm x 89 mm) with dust box |
| Certifications |
ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL Listed for 3 Hour Fire Door |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
