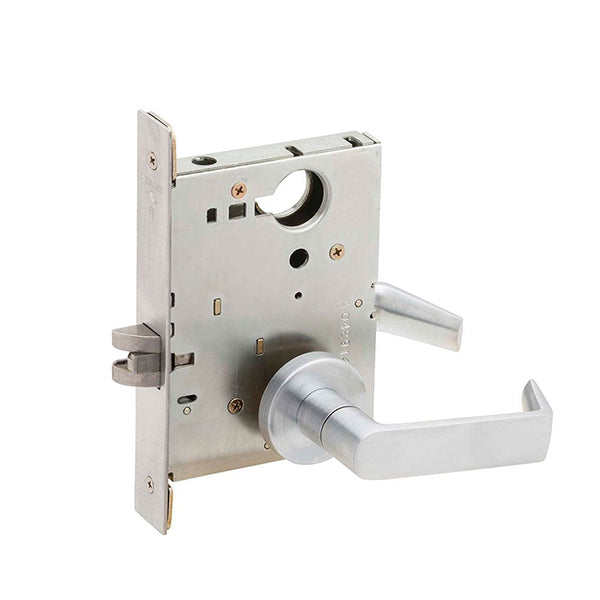

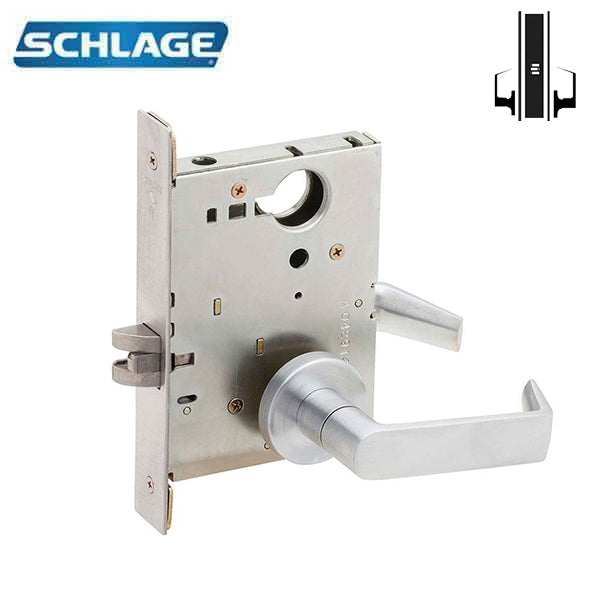

Schlage - L9010 - L Series - A Rose - Mortise Lock with Latchbolt - Passage - Grade 1
In Stock
SKU:
SCH-L9010-06A-626
NSID:
38012
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $554.21
-
$695.00 - $554.21
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today.
Features
- 3 Hour Fire Rated
- Grade 1
- Non-Handed Field Reversible
-
Passage: Latchbolt retracted by lever from either side at all times. Inside lever is always free for immediate egress.
Specifications
| Lock Function |
9010-Passage Latchbolt retracted by lever from either side at all times. Inside lever is always free for immediate egress. |
| Handing | Non Handed - Field Reversible |
| Door Thickness | 1 3/4" (44 mm) |
| Backset | 2 3/4" (70 mm) only |
| Bolt | 1" (25 mm) throw stainless steel deadbolt |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Material | Stainless Steel / Zinc |
| Case size | 4 7/16" x 3 5/8" x 1" (113 mm x 92 mm x 25 mm) |
| Strike | 1 1/8" x 3 1/2" (29 mm x 89 mm) with dust box |
| Certifications |
ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL Listed for 3 Hour Fire Door |
| Manufacturer Warranty | 3 Years |
Downloads:
