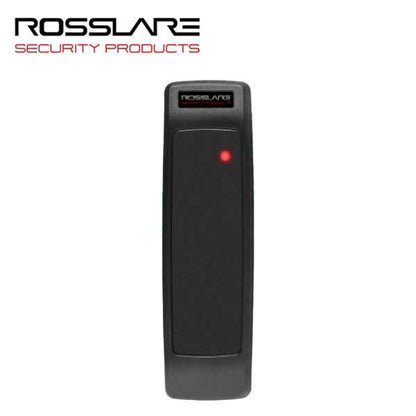

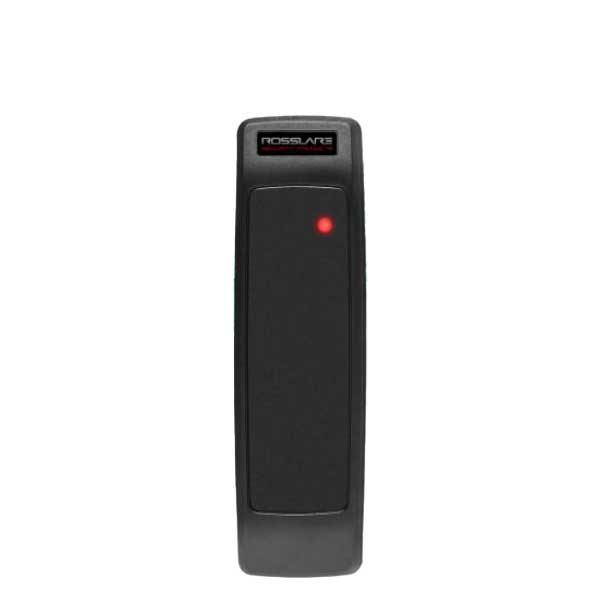

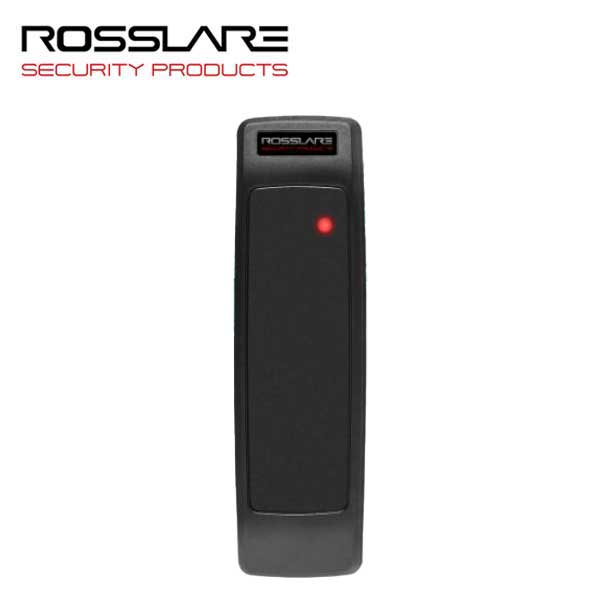

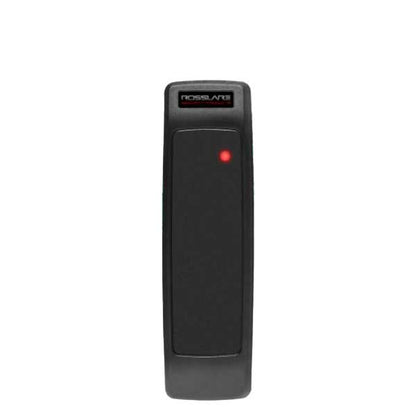

Rosslare - L12C - Outdoor Proximity Reader - 125 KHZ - RFID - 5–16 VDC - IP65
Available to Order
SKU:
ROS-AY-L12C
NSID:
25321
- $86.96
-
$70.98 - $86.96
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Rosslare's AY-L12C is a powerful RFID proximity card reader of EM 4102 125-kHz cards and tags. The readers are highly flexible with behavior control options. With a sleek design and a tough UV-resistant and water resistant casing, the AY-L12C are equally suited for indoor and outdoor use. The AY-L12C series is compatible with a variety of Rosslare's controllers, as well as with many third-party access control systems.
Features
- Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data
- Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)
- Wide range operating voltage: 5 to 16 VDC
- 45 cm (18 in.) pigtail cable
- RF Modulation: ASK at 125 kHz
- Internal sounder with external control option
- Tri-color LED with external control inputs
- External reader hold control
- Optical wall tamper detection
- Water-resistant with epoxy potting (IP65), suitable for indoor and outdoor applications
- Made of tough polycarbonate UV-resistant plastic
- Comes with mounting template for easier installation
Specifications:
| Operating Voltage Range: | 5–16 VDC, from a regulated power supply |
| Standby Input Current : | 60 mA @ 12 V |
| Maximum Input Current: | 120 mA @ 12 V |
| Proximity Card Reader: | Maximum read range: 8 cm (3.2 in.) to 10 cm (3.9 in.) Modulation: ASK at 125 kHz Compatible cards: 26-Bit EM cards |
| Tamper Output: | Open collector, active low, max. sink current 16 mA |
| LED Control Input: | Dry Contact, N.O |
| Output Format: | Wiegand 26-Bit, RS-232, or Clock & Data |
| Audio/Visual: |
Tri-colored LED indicator, built-in sounder |
| Design: | Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments. |
| Dimensions: | 5.7 x 1.7 x 0.8 in. |
| Product Warranty: | 5-Year Limited Product Warranty |
| Device Certifications: | IP65 |
