Rosslare - AY-K35 - Multi-Smart Reader - 125 KHz FSK and ASK - 13.56 MHz - NFC & BLE
Available to Order
SKU:
ROS-AY-K35
NSID:
28369
- $138.91
-
$123.65 - $138.91
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

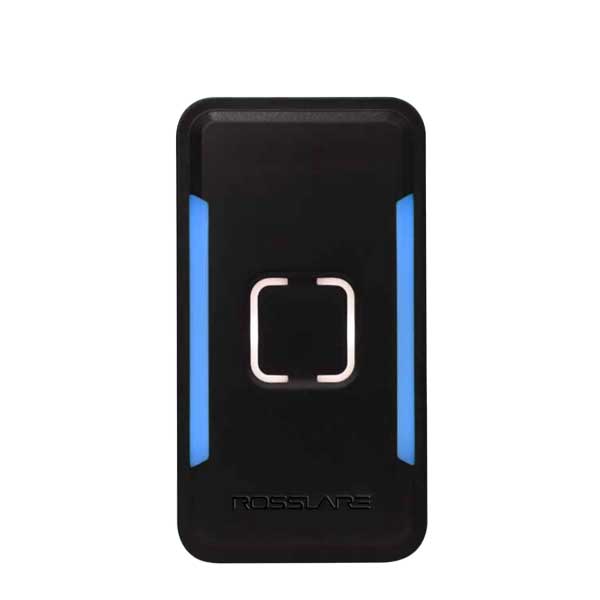

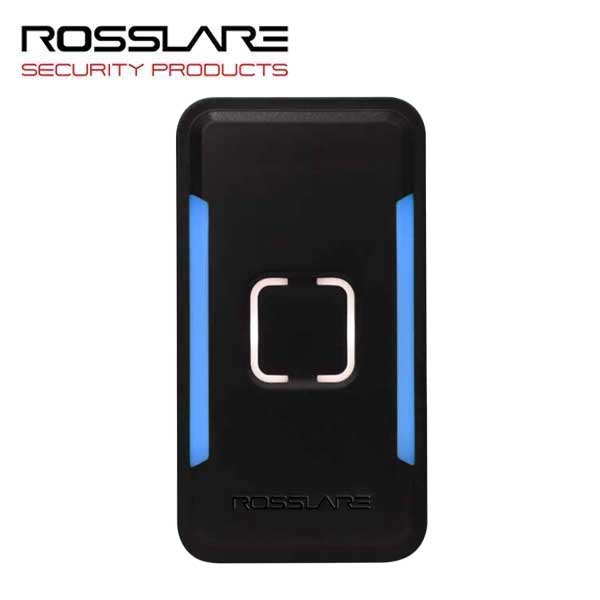

The Rosslare AY-K35 Multi-Smart Reader is a multi-technology reader with water resistance, vandal-proof and anti-microbial properties, offering versatility and scalability to secure your physical access control today and into the future.
Main Features:
- Supports 125 kHz and 13.56 MHz frequencies and
contactless operation with BLE and NFC1
technologies using Rosslare BLE-ID mobile app or
SDK. - Supports OSDP V2 including secure channel using
AES 128 bit encryption for improved security with an
extended range, up to 32 addresses - Fully programmable using Rosslare BLE-Admin app
- Touch button for different functions
- IP68 water and dust resistant, IK09 vandal resistant
- Antimicrobial technology reduces level of microbes
on reader by up to 99.8% - Easy installation in all environments with the
included mounting template and installation kit - Sleek and modern design, superior mechanics
Specifications:
| Operating Voltage Range: | ISO 125 kHz Proximity Multiple |
| Current at 12 VDC: | Maximum: 300 mA @ 12 VDC |
| BLE Read Range* | 12 m (39.3 ft) (line of sight) |
| RFID and NFC Read Range** | Contactless: 13.56 MHz: 5 cm (1.97 in.), 125 kHz: 8 cm (20.32 in.) |
| LED/Buzzer Controls: | Dry Contact, N.O |
| Tamper / Touch Button Output: | Optical tamper, open collector, active low, max. sink current 20 mA @12 VDC, 10 mA@5 VDC. Current limit: 500 Ω series resistance |
| RFID: | 125kHz ASK |
| Communication and Controller Connection: |
Wiegand 26-64 bit***, Clock & Data, and OSDP Secure Channel V2 via 11-wire Pigtail |
| Operating Environment: | IP68, UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Vandal Resistance: | IK09 |
| Operating Temperature Range: | -35°C to 66°C (-31°F to 150°F) |
| Operating Humidity Range: | 0% to 95% (non-condensing) |
| Antimicrobial efficacy: | Inhibits bacteria proliferation by up to 99.8% |
| Material Type: | Tough polycarbonate plastic |
| Enclosure Dimensions (H x W x D) |
88 × 48 × 24 mm (3.46 x 1.89 x 0.94 in.) |
