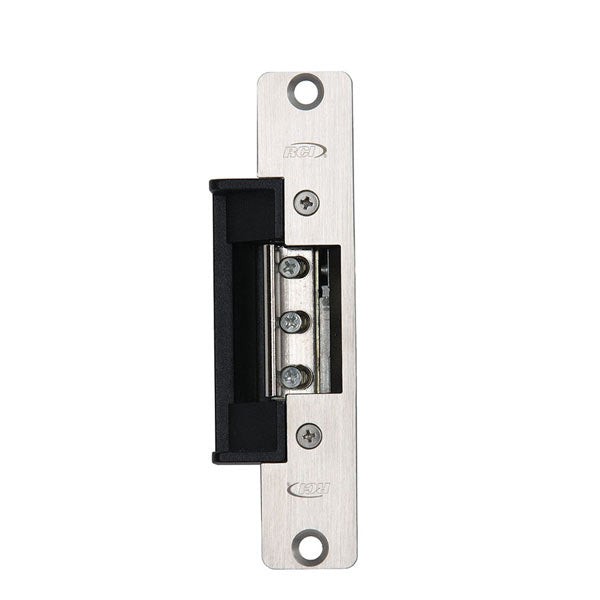

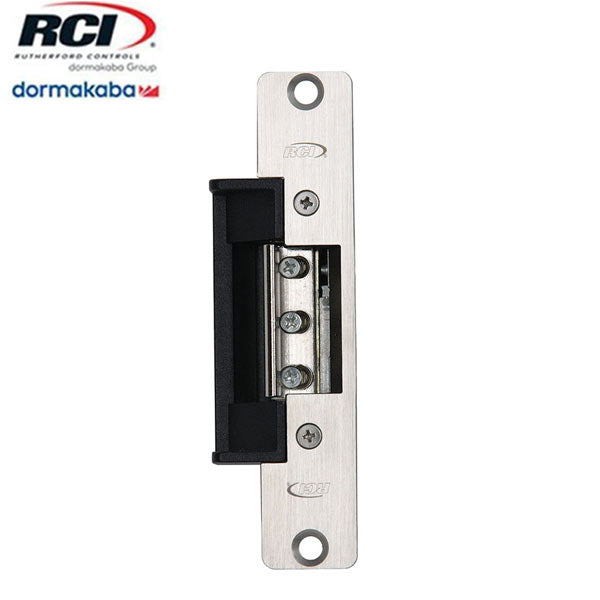

RCI - 7105 - Electric Centerline Strike - Fail Secure - Brushed Stainless Steel - 1-1/8"W x 5-7/8"H
In Stock
SKU:
RCI-R71055D9
NSID:
6620
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $89.59
-
$158.00 - $89.59
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
This is the RCI 7105-05D-32D electric strike, they are used with centerline lock and exit devices. These electric strikes allow installers to adjust the strike pivot horizontally for precise alignment and unique anti-vibration design prevents manipulation by vibration. Crossed wires are never a problem, as the coil is non polarity-conscious.
Features:
- Mounting tabs, fasteners and trim plate included
- Non-handed
- Trim plate included to cover up irregular frame cutout
- Factory tested to endure over 250,000 cycles
- Can withstand 500lb of Static force & 70ft-lb Dynamic force
- The RCI 7 series allows installers to adjust the strike pivot horizontally up to 1/8” for precise alignment
- Allows use with wide range of door thicknesses
Specifications:
Type: |
Electric Strike |
Energy: |
280mA 11-16VAC, 12VDC, 24VACVDC (At 12VDC) |
Faceplate Dimensions: |
1-1/8"W x 5-7/8"H (29mm x 150mm), radius corners |
Latch Projection: |
5/8" (16mm) |
Insert Depth: |
1-1/2" (38mm) |
Horizontal adjustment: |
1/8" (3.2mm) |
| Door Thickness: | 1-3/8" to 2-3/8" (35mm-60mm) |
Finish: |
Brushed Stainless Steel |
Certification: |
UL 1034 burglary-resistant Listed |
Warranty: |
3-year limited warranty |
