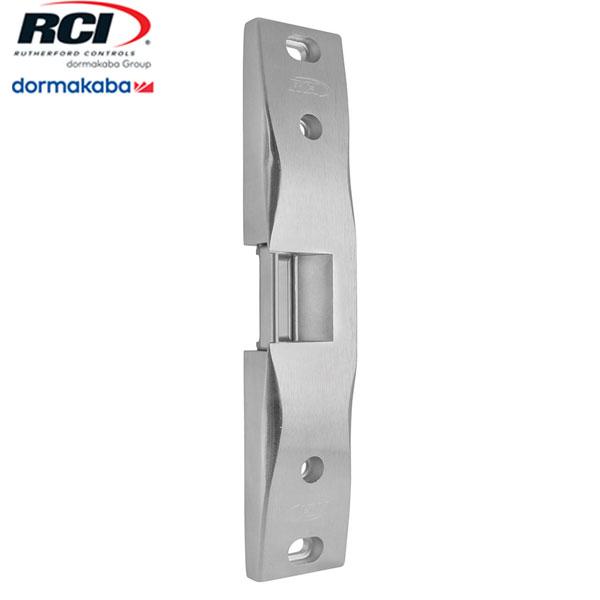

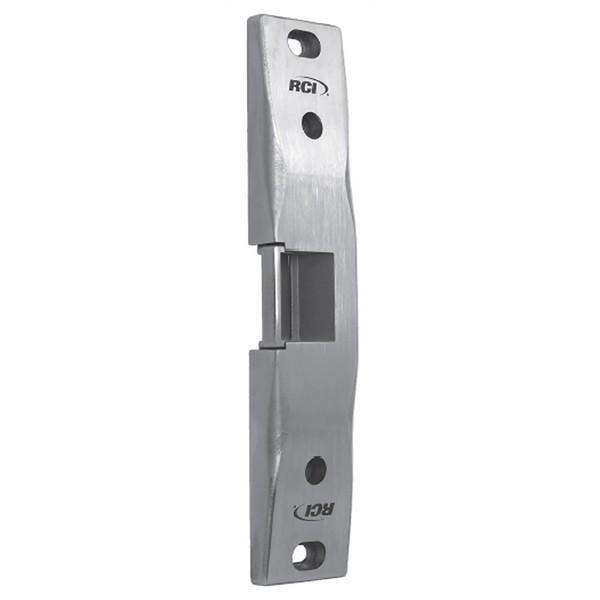

*Discontinued* RCI 0162-32D 3/4" Surface Mount Rim Electric Strike
Out of Stock
SKU:
RCI-R01629-delete
NSID:
6613
- $333.56
-
$503.00 - $333.56
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- 0162 Cross Reference: Hes - 9600, Trine - 4800
- 1-3/4"W x 9"H x 3/4"D (45mm x 229mm x 20mm)
- Completely surface-mounted – no frame cutting required
- Accommodates 1/2" to 3/4" (13mm–19mm) latch projection
- Mounting spacer included to provide enhanced latch engagement
- Stainless steel ensures superior strength and creates a sleek aesthetic
- $333.56
-
$503.00 - $333.56
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xThe 0162 electric strike accommodates ½” to ¾” latch projection and is designed for use with Pullman latch rim exit devices. As a completely surface mounted strike the RCI 0162 requires no cutting of the door frame. The rugged stainless-steel strike accommodates hollow metal, aluminum and wood door frames. Its heavy-duty housing is reinforced to eliminate twisting in the case of imperfect frames. The one-piece conventional keeper promotes even load distribution for increased security in the event of an attempted forced entry.
- Horizontal adjustment ensure proper latch positioning to compensate for door misalignment – up to 1/4" (6.4mm)

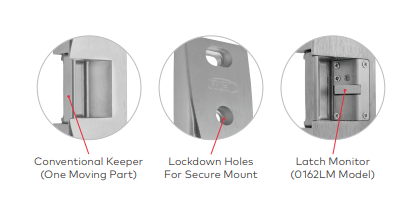

- Conventional keeper design (one moving part)- promotes even load distribution
- Plug-in wire connectors
- Lockdown holes for secure mount
- HEX socket head cap screws for added support
- Installation tool included (HEX key)
- Non-handed (featuring horizontal solenoid design)

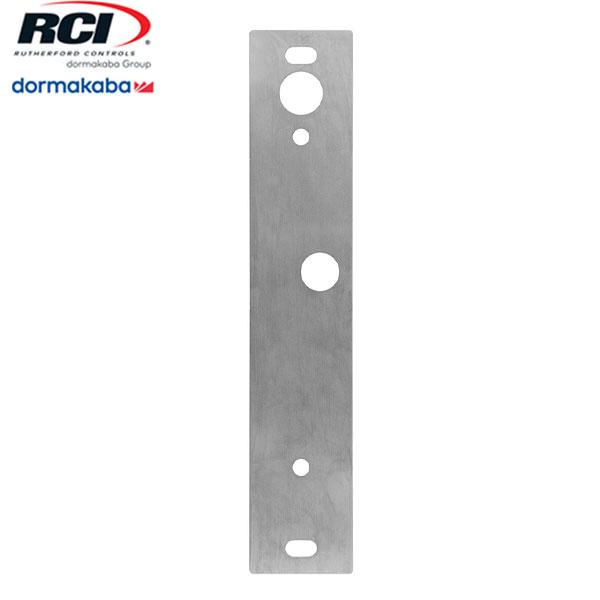

- 1/16" (1.5mm) mounting spacer for additional latch engagement included
- Brushed Stainless Steel (32D) finish
- Factory tested to over 4-million cycles of operation
- UL 1034 burglary-resistant Listed
- UL 294 Listed for Access Control Unit Accessory (6th Edition)
- CAN/ULC S104 & UL 10C, 3-hour fire-rating Listed2
- Certified to ANSI/BHMA standard A156.31, Grade 1,endurance 500,000 cycles
- Energy: 500mA1, Field-Selectable - 12/24VDC & 12-24VAC
- Strength: 1,500lbf Static, 70ft-lb Dynamic
- Warranty: 5 Year Limited Warranty
- Model: Fail-Secure
