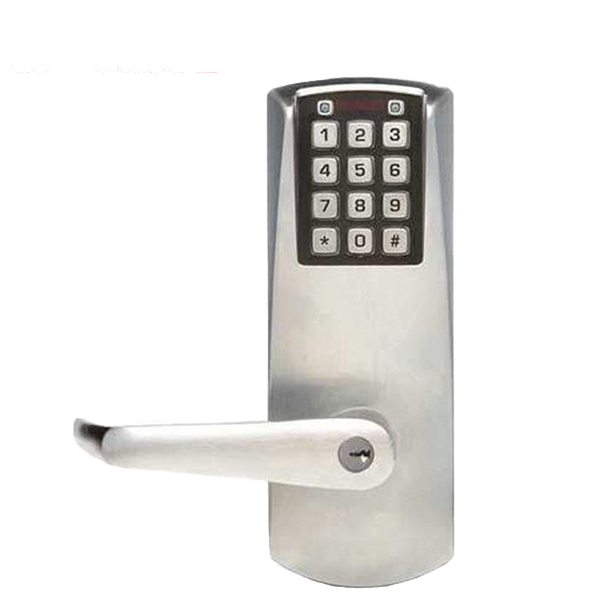

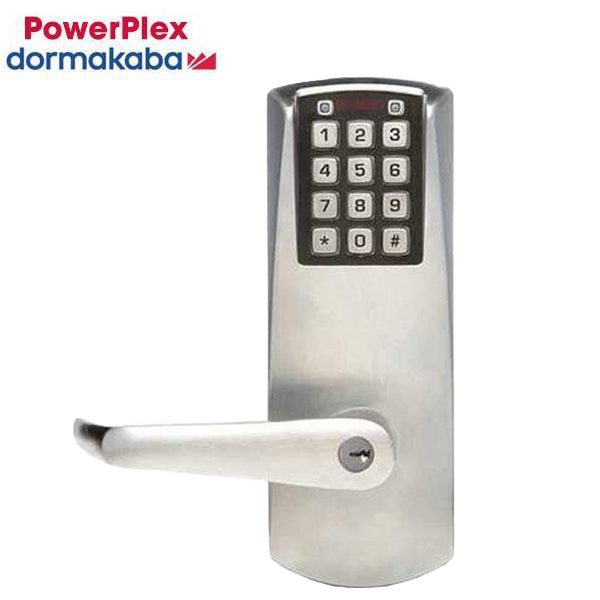

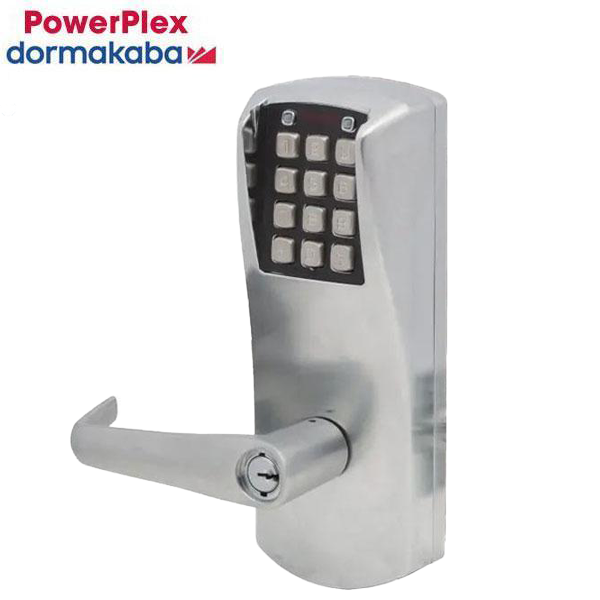

PowerPlex - P2051XS - Electronic Self Powered Pushbutton Lever Set - Privacy - Schlage "C" - 2¾" Backset - Satin Chrome - Grade 1
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $509.80
-
$538.80 - $509.80
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Based on the PowerStar Technology, which has been used and manufactured for over 10 years, the PowerPlex Series utilizes new capacitor technology to store power longer and more efficiently. There is no handle pumping required to wake up the lock and the built-in super capacitors will hold a full charge for up to 10 weeks with no activity at the lock. The lock is perfect for small to mid-sized facilities, rarely visited remote locations, retail "Employees Only" areas and military facilities. Provides exterior access by PIN code, while allowing free egress. With Privacy
Features:
- Electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
- PowerPlex 2000 locks are self-powered electronic locks that do not require batteries or other power sources. The lock generates its own power with every turn of the lever. A full charge of the built-in super capacitors will last up to 10 weeks with no activity at the lock.
- Requires no wiring to or through the door — eliminates risk of damage from pinched wires that can result in costly callbacks.
- Multiple Users — 100 Codes
- The most recent 1,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.
- Locks are programmed via keypad or with optional Microsoft® Excel®-based software — simplifies management of doors and users as facility’s number of users and access points grow.
- Non-handed; pre-assembled for left-hand door installations — easily changed in the field
- Key Override: Key-in-Lever Cylinder
- PIN access
- Five different authority levels allow who has access to specific lock functions
- Code length — Adjustable to accept 4 to 8 digits
- Anti-tamper lockout — Adjustable from 3 to 9 invalid attempts with an
- adjustable period of 0 to 90 seconds
- Relock time — Adjustable from 2 to 20 seconds
Specifications:
Construction: |
Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications |
Locking Device: |
Cylindrical ½" (13mm) throw latch, floating face plate 2¾" (70mm) backset. w/ Privacy |
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
Handing: |
Non-handed, pre-assembled for left-hand door installation — easily changed in the field |
Finish: |
Satin Chrome 26D (626) |
Key Override: |
Key-In-Lever, Kaba Cylinder (Schlage "C" Keyway) included |
Backset: |
2¾" (70mm) backset |
Latch: |
½" (13mm) throw latch, floating face plate |
Minimum Stile Recommended: |
5" (127 mm) |
Strike: |
Packaged standard with both ANSI A115.3 “T” Strike and A115.2 ASA Strike |
Door Preparation: |
ASA 161 (Easily installs on door preparation with three additional through bore holes (wood or metal doors) |
Door Thickness: |
1 ⅜" (35 mm) to 2 ½" (64 mm); pre-assembled to accommodate doors 1 ⅝" (41 mm) to 2" (50 mm) |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Certification: |
ANSI/BHMA Grade 1 Certified |
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
Warranty: |
3 years manufacturer warranty |
Downloads:
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
