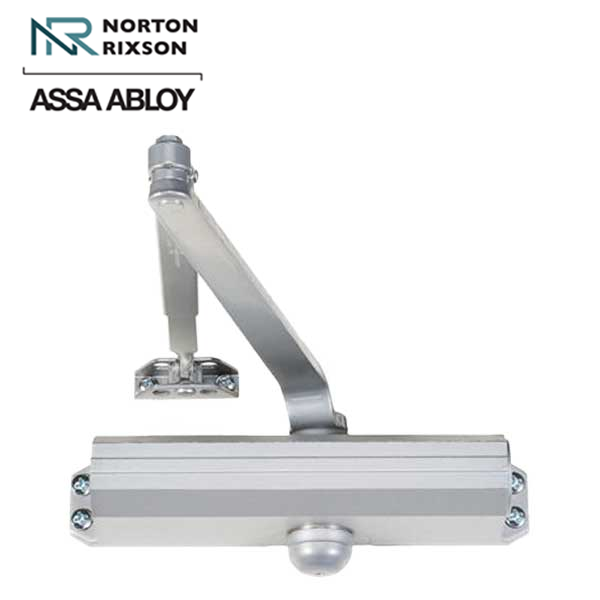

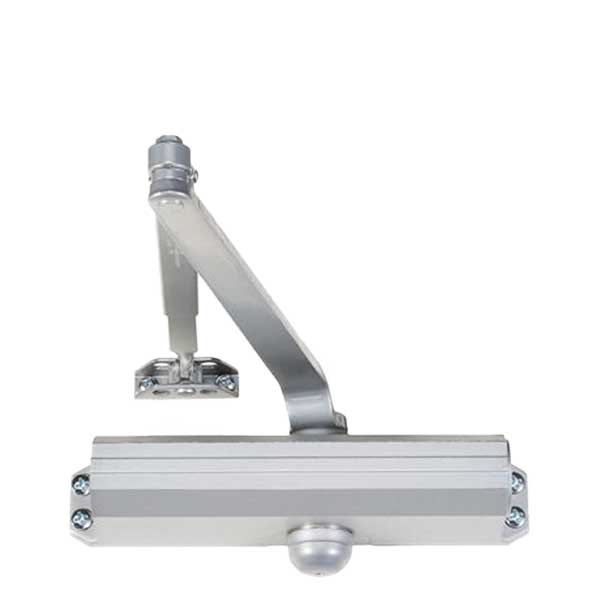

Norton - 1604 - Tri-Packed Manual Commercial Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Size 4 - Satin Aluminum - Fire Rated - Grade 1
In Stock
SKU:
NOR-1604-689-BC
NSID:
18712
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $109.95
-
$139.99 - $109.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 1600 Series Door Closers offer proven quality, performance, and reliability unmatched by the competition. A staple in the industry, these ANSI/BHMA Grade 1 closers are designed for exterior or interior doors. a full complement of regular and heavy-duty arms, brackets, and options make the 1600 series ideal for virtually any medium traffic, commercial application. The adjustable backcheck feature gives the closer a range that will allow it to forcefully slow down between 70 and 180 degrees. Allowing for use of this product in smaller hallways.
Features:
- Exceeds 25 million cycles
- Non-handed
- Adjustable Backcheck stopping feature
- Rack-and-pinion design
- Cast aluminum closer body
- can swing door 180 degrees from closed position
- staked valves
- Preset spring size of 4
Specifications:
| Construction: | Heavy-Duty cast-aluminum body |
| Function: | Hydraulic Manual Door Closer |
| Closer Type: | Hold Open Function |
| Handing: | Non-Handed |
| Ligature Resistant: | No |
| Closer Mounting Style: | Parallel, Regular, Top Frame |
| Finish: | Aluminum |
| Arm Type: | ANSI Size 4, Standard |
| Door Width: | 42" interior 36" exterior |
| Housing Height: | 1-7/8 in |
| Housing Length: | 9 1/16 in |
| Max. Door Opening: | 180 Degrees |
| Piston Diameter: | 1 3/8 in |
| Projection from Wall: | 2 5/8 in |
| Pinion Journals Diameter: | 5/8 in |
| Fire Rating: | 3 hrs. |
| Certifications: | ANSI A156.4 Grade 2, UL and cUL Listed |
