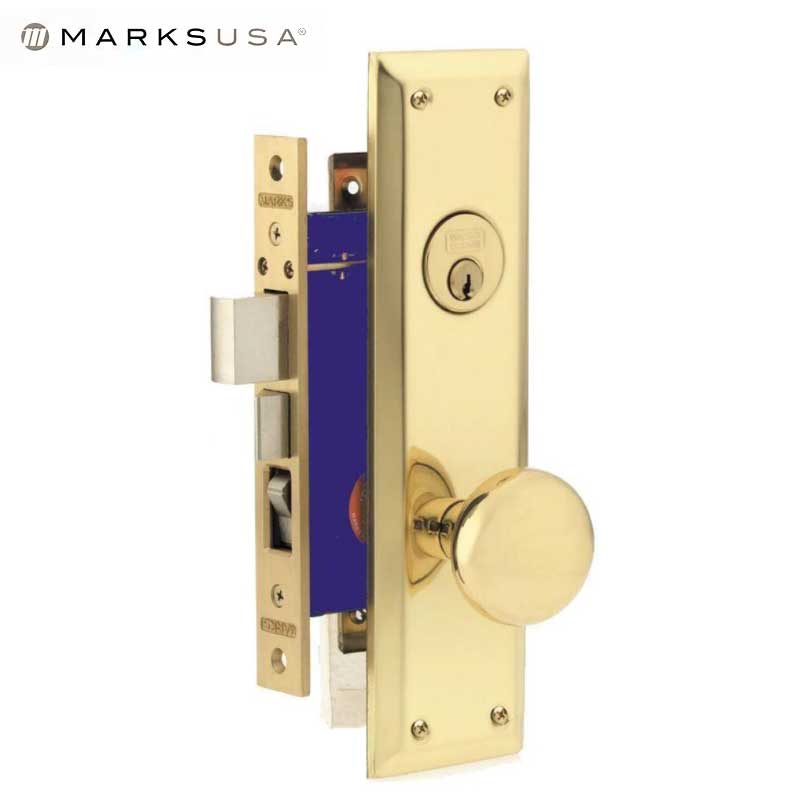

Marks USA - 71A/3 - Metro Mortise Knob Lock - U3 - 1-1/4" X 8"- Entrance - RH
In Stock
SKU:
MRK-71A-3-RH
NSID:
6007
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $74.80
-
$149.99 - $74.80
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Combine security with style with the Marks Metro 7 Series Mortise Locks. Perfect for apartments and residential buildings.
- Polished Brass
- Solid Brass plates
- Right Hand Mortise Lockset
- Solid brass cylinder - 2 keys
Specifications
| Trim | Knob Lockset |
| Exterior | Steel reinforced brass plates with cylinder recess, 10" x 2-3/4". Polished brass finish (US 3). Wrought brass, knob, 2-1/4" diameter with two set screws. Two piece 9/32" steel swivel spindle. |
| Interior | Steel reinforced plate 7" x 2-1/4". Polished brass finish (US 3). Wrought brass knob, 2-1/4" diameter with two set screws. |
| Cylinder | 1-1/8" long solid brass, 6 pin with 2 keys. |
| Strike | 4-7/8" x 1-1/4" x 3/32" thick, 5/8" curved lip. Conforms to ANSI spec., A115.1. |
| Door Thickness | 1-5/8" to 2-1/4" standard. |
| Lock Specifications | 7 Series (2-3/4" Backset) |
| Faceplate | 1-1/4" X 8" steel backplate with brass cover plate. |
| Deadbolt | Cast 1" throw, steel reinforced. |
| Latch | Solid brass, 1/2" throw (reversible). |
| Rocker Switch | Locks or unlocks exterior lever. |
| Hub Lock Arm | (to lock hub) Steel 1/8" thick . |
| Hubs | 9/32" on square. |
| Case | High pressure cast Zamac, baked powder coat finish. |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Marks USA directly at 1-800-645-9445 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
