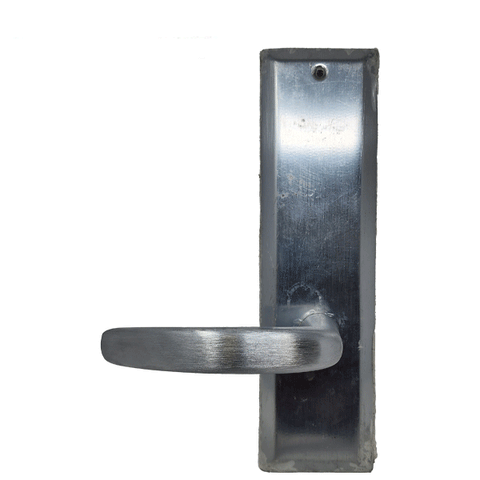

Marks USA - 0NY96DO - New York Mortise Lever Lock - 1-1/16” x 7-5/8” - 26D - Satin Chrome - Dummy - LH
In Stock
SKU:
MRK-0NY96DO/26D-LH
NSID:
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $91.23
-
$109.47 - $91.23
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Combine security with style with the Marks New York 9 Series Mortise Locks. Perfect for apartments and residential buildings.
- Satin Chrome
- Solid Brass plates
- Left Hand Mortise Lockset
- Solid brass cylinder - 2 keys
Specifications
| Trim | Series 9 New Yorker Mortise Lever Lockset |
| Function | Dummy Trim Outside |
| Cylinder | C keyway cylinder with 2 keys |
| Bolt | Cast alloy full 1” throw |
| Latch | Solid brass 1/2” throw, reversible |
| Backset | 2-1/2" backset |
| Lock Front: | 1-1/16” x 7-5/8” |
| Door Thickness | 1-5/8" to 2-1/4" standard. |
| Lock Specifications | 9 Series (2-1/2" Backset) |
| Case | High-pressure cast Zamac, baked powder coat finish. |
Diagram (Note Diagram Shows Deadbolt Models )
Downloads
- Installation Instructions(follow instructions for Series 9)
