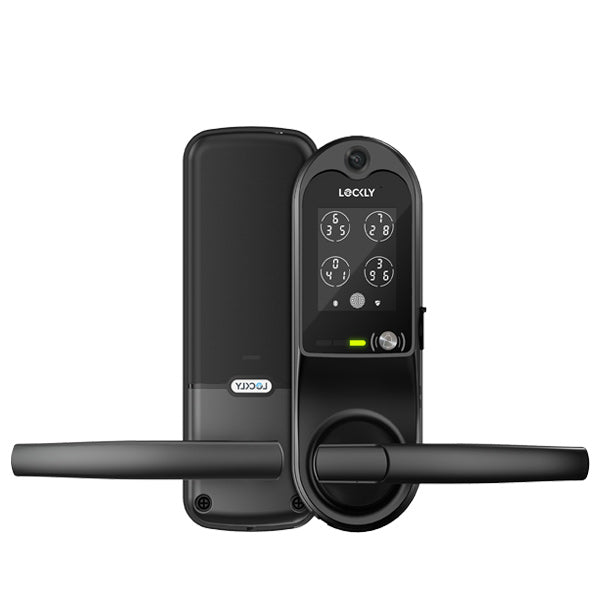

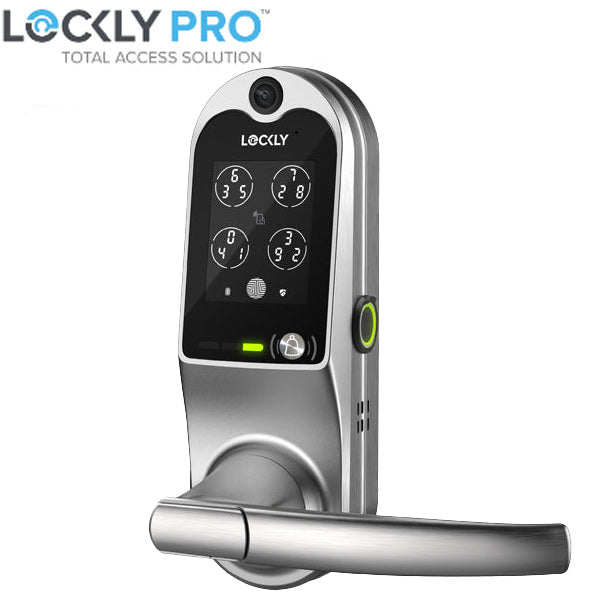

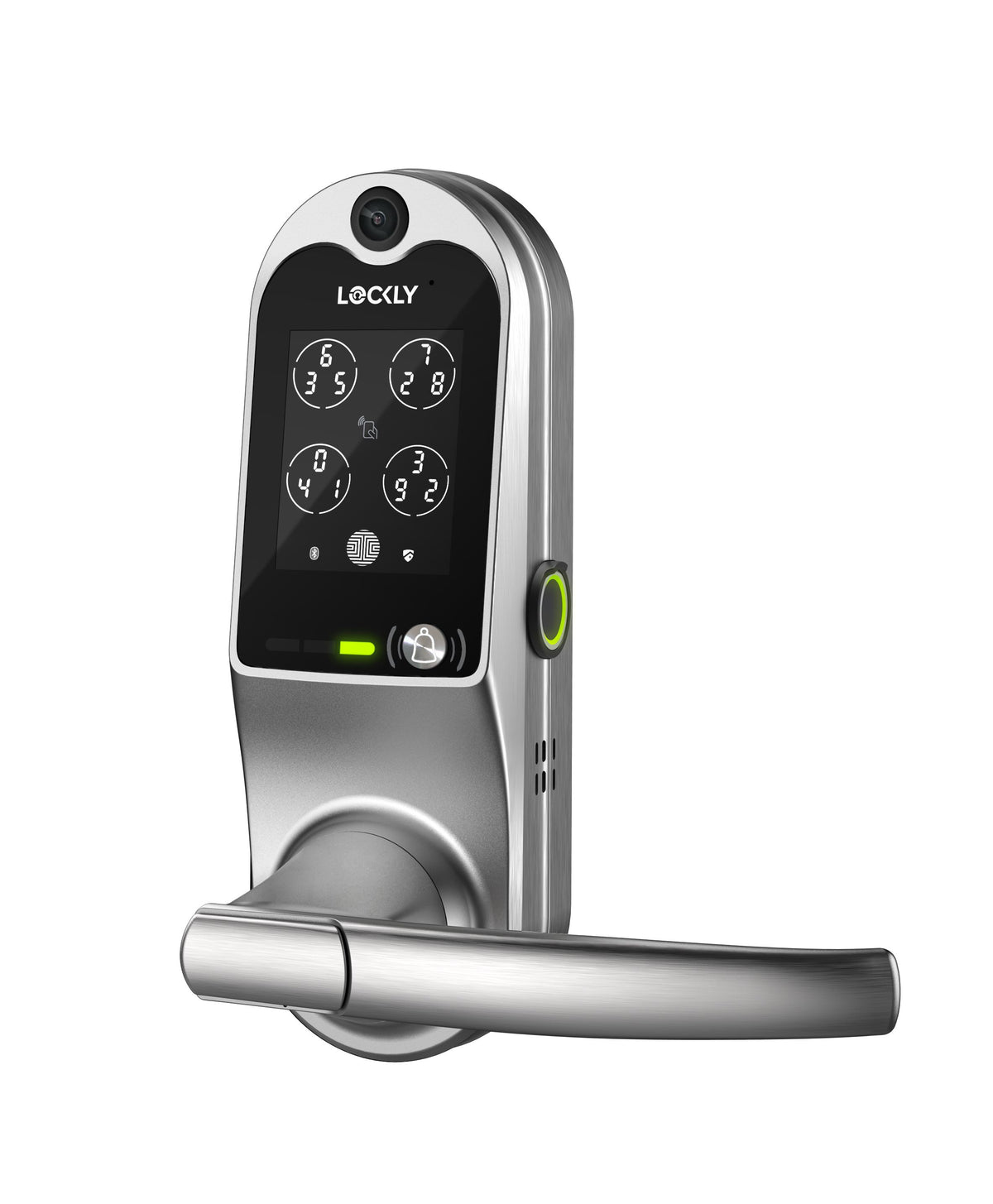

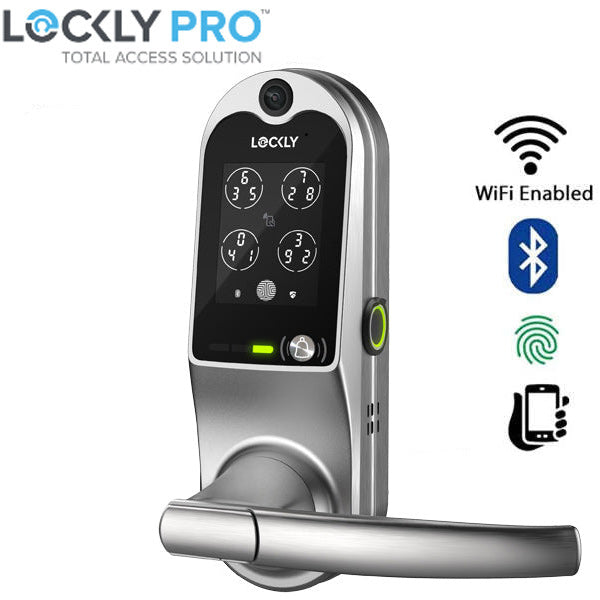

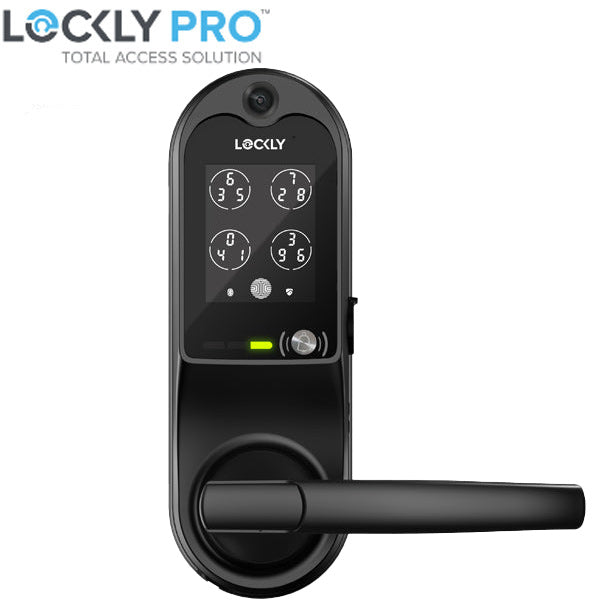

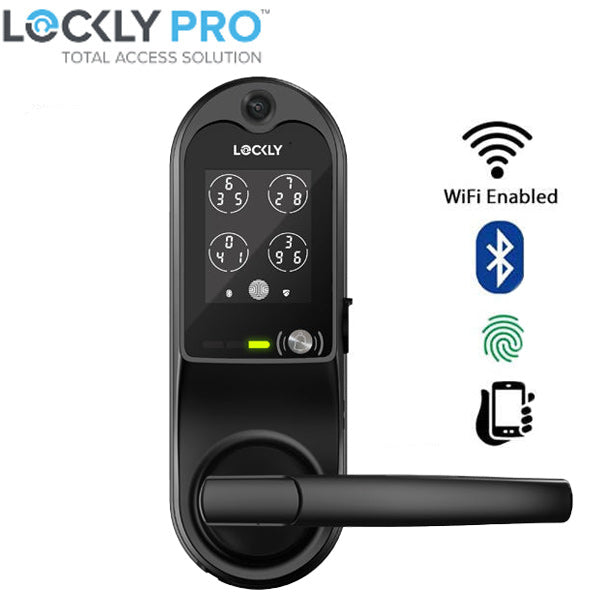

Lockly Guard VISION DUO 698D - Doorbell Video Camera Smart Lock - Interconnected Deadbolt Latch - Fingerprint Reader - Wi-Fi-Bluetooth App Controlled - Optional Finish
In Stock
SKU:
LCK-PGD698DSN
NSID:
31972
31971
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $729.99
-
$749.99 - $729.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Lockly Guard™ Vision Duo 698D features Dual-Locking Technology™ to lock and unlock interconnected latches and deadbolts in a single lever motion for quick and easy access. Combined with a revolutionary built-in HD video doorbell and award-winning Lockly smart lock features and technology makes it game changer in the world of video doorbells. Know who's at your door with live view camera streaming real-time HD video to your smartphone. Recordings are stored on included SD memory card where they are private, safe and secure. Additional conveniences like a doorbell call button and real-time 2-way voice interaction make accessing and monitoring any door more convenient and secure.
Features:
- Live video monitoring and recording, greet people at your door with live view camera streaming and 2-way audio all from the convenience of your smartphone.
- Convenient keyless entry with Hack-proof PIN Genie® Keypad, 3D Biometric Fingerprint reader (stores up to 99), MIFARE RFID (stores up to 999**) and lock/unlock using the Lockly mobile app.
- Dual Locking Technology to lock and unlock interconnected latch and deadbolt in a single-egress lever motion for quick and easy access. The double door lock design enhances security and gives you added peace of mind.
- Smart home ready with plug-n-play Vision Connect hub seamlessly connected via included LAN, remotely lock and unlock your door or simply check status from anywhere using the Lockly mobile app or through your voice control assistant.
- Using the Lockly App or LocklyOS™, securely Air Transfer fingerprints and access code user profiles from one Lockly to another lock; effortlessly unlock, monitor, and review history logs, and grant access using eKeys, eBadges, or Offline Access Codes anytime anywhere.
- Advanced DIY installation. Fits right or left swing doors 1 3/8" to 2" thick. Drilling may be required, and all mounting hardware is included. Fits 4" or 5.5" C2C door hole distance or as replacement for mortise locks with a 2-3/8" or 2-3/4" backset.
- Premium quality / lifetime warranty*. Made with high-quality materials designed to withstand freezing, and hot weather conditions. IPX4, ETL, UL10(B)/(C), CAN/ULC-S104, NFPA 252 & FBC certified. Backed with Lifetime technical support* & Limited 2-year mechanical, finish and electronics warranty.
- Powered by 4 AA batteries (included), lasts up to 10 months on regular use, low battery warning can be viewed on your app, backup physical keys and backup power options included in case of emergencies.
- Works with LocklyOS™ a full property management system for one or a thousand Lockly devices, designed to allow you to view and control where, when, and by whom your property’s being accessed from anywhere in the world. LocklyOS** is premium service provided by LocklyPRO, subscription is required.
Specifications:
Electronic Specifications:
| Video Camera | Full HD Video Camera (720P / 1080P) |
| Access Codes | Stores up to 33 PIN access codes |
| RFID/Fob Key Access | Stores up to 999 MiFare RFID/fob |
| Fingerprint Access | Stores up to 99 biometric fingerprints |
| Remotely Shareable Temporary Access | Unlimited Offline Access Codes / eBadges |
| Access Logs | Unlimited Accessible via LocklyPro Commercial app or LocklyOS |
| Visual and Audible | Exterior: LED (Red, Yellow, Green) Interior: LED (Red) Configurable Lock/Unlock Audio Indicator Intercom (Doorbell, Microphone, Speaker) |
| Communication Standards | BLE 4.2, Wi-Fi 2.4GHz Advanced Encryption Standard (AES), 256-bit |
| Gateway Communication Range (networked solution) | Up to 98' (30m) BLE Up to 197' (60m) Wi-Fi Unobstructed open environment |
| Command Response | Responds to command from host in less than 3 seconds when linked to Lockly Wi-Fi Hub 0.2S on Fingerprint Recognition |
| Connectivity Options | LocklyPro Commercial app, LocklyOS ALL in real-time communication |
| Available Signal Status | Battery Status via App Open/Close Door Status Bluetooth Connectivity Indicator Sensor LED (Red/Green) |
| Battery Life | AA Alkaline Batteries x 4 Up to 1 year (offline mode) up to 10 months (regular use with App & Sensor) |
| Operating Temperature | -4°F to 151°F (-20°C to 66°C) |
| Operating Humidity | 0 - 100% non-condensing |
Credential Specifications:
| Credential technologies | RFID Card (13.56 MHz) BLE (2.4 GHz) Wi-Fi (2.4 GHz) Capacitive Sensor Patented PIN Genie Keypad |
| Standards | ISO 14443 |
| Maximum Read Range | RFID: up to 0.79" BLE: up to 98' (30m) Wi-Fi: up to 197' (60m) |
| RFID/Fob Compatibility | MiFare S50 |
| Mobile Compatibility | LocklyPro Commercial app BLE 4.2 LocklyOS |
Mechanical Specifications:
| Handing | Field Reversible |
| Materials | Premium Zinc Alloy chassis and escutcheon 45 mins Fire tested |
| Door Thickness | 1-3/8" - 2" (35mm - 50mm) |
| Backset | Adjustable 2-3/8" or 2-3/4" (60mm or 70mm) 1" x 2-1/4" round corner faceplate |
| Strike | Deadbolt: 1-1/8" x 2-3/4", round corner Latchbolt: 1-1/8" x 2-3/4", round corner Dust box included |
| Bore | 2-1/8" (54mm) diameter Borehole 1" (25mm) diameter latch hole |
| Physical Keys | SC1 Re-keying compatible, 2pcs included |
Certifications/Warranty
| Certifications | UL 10B | UL 90C, FBC, RoHS, FC, ADA Compliant, NFPA 252 | CAN/ULC-S104 |
| Warranty | Lifetime 24/7 Technical Support 2-Year Limited Mechanical & Finish 2-Year Limited Electronics |
What's Included:
- Vision Duo 698D
- Installation Guide
- User Manual
- Welcome Card
- AA Alkaline Batteries x 4
- Drilling Template
- Activation Card
- RFID Key Tag x 3
- Physical Key x 2
- Vision Connect Hub
- LAN Cable
- 32GB TF Card
- Wired Door Sensor
- Deadbolt and Latchbolt
- Cover Plate x 2
- Interconnection Plate
- Fixing Screws
- Strike Plate
Downloads
- Lockly Smart Phone App -- iPhone Here / Android Here
- Spec Sheet
- User Manual
- Installation Manual
- Installation Template 4"
- Installation Template 5.5"
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Lockly directly at 669-500-8835 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
