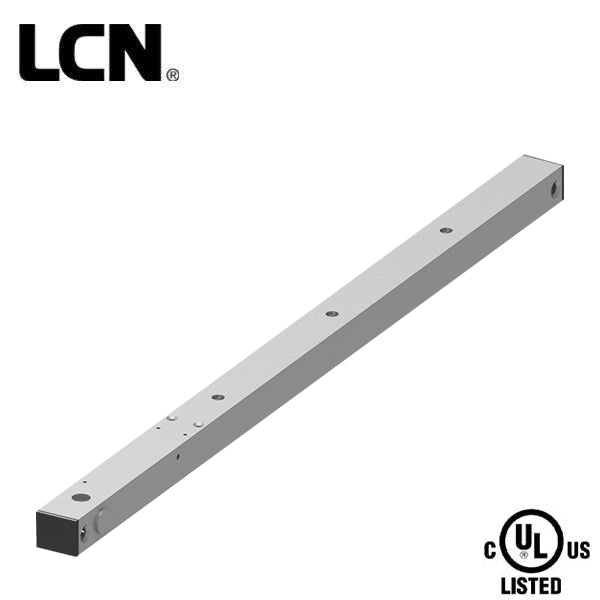

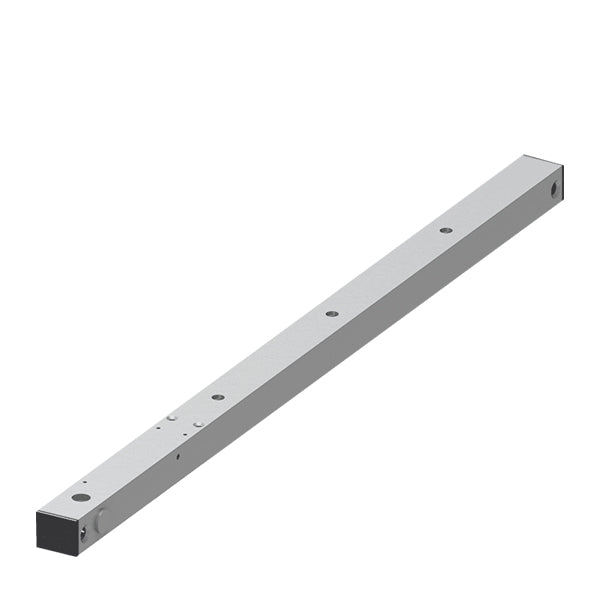

LCN - 4040SEH - Series Hold Open Track - 24V - Non-Handed - Aluminum - Fire Rated - Grade 1
In Stock
SKU:
LCN-4040SEH-3038-24V-689
NSID:
75671
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $498.62
-
$598.34 - $498.62
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The LCN 4040SEH Series Hold Open Track is a heavy-duty, non-handed, and non-sized design to provide a single-point, hold-open, for fire and smoke barrier doors. The door is held open until current interruption releases the holding mechanism and the door closes. These products integrate into your complete fire and life safety system.
Features:
- Standard 4040SE series closer shipped with a standard arm, 24V SEH track, standard cover, and wood and machine screw pack.
- Non-sized cylinders for interior doors to 4'0".
- The hold-open force is adjustable.
- Momentary on/off switchboard assembly for testing door release also provides over-voltage protection. Field replaceable.
- Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted.
- Closer mounts are on either the push or pull side of the door.
- Non-handed for mounting on either right or left-hand door.
- Concealed or surface wiring.
- Interfaces with fire alarm systems. Consult the factory for full details.
- Standard or optional custom powder-coated finishes on the cover and arm.
Specifications:
| Hand | Non-Handed |
| Voltage | 24V |
| Fasteners | Wood and Machine Screws |
| Arm/Track | Standard SEH Arm (SEH) |
| Commercial/Residential | Commercial |
| Mounting | Surface |
| Finish | Aluminum Painted |
| UL Listing | UL 10C |
| Grade | Grade 1 |
| BAA Qualified | Yes |
| Warranty | Limited Manufacturer's 2-Year Warranty |
