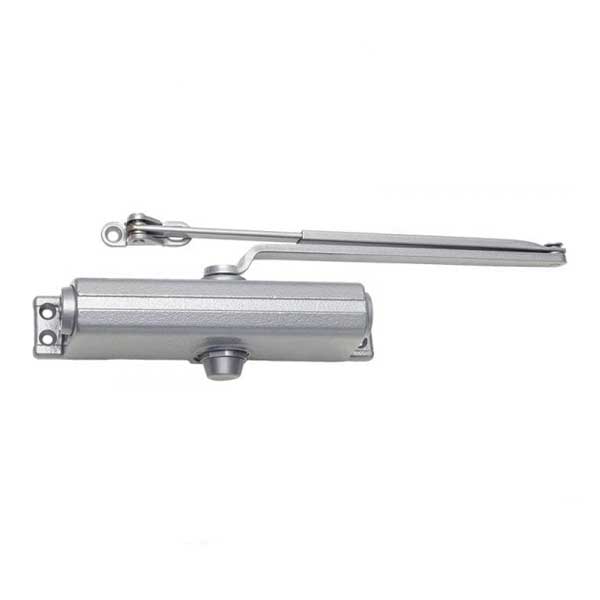

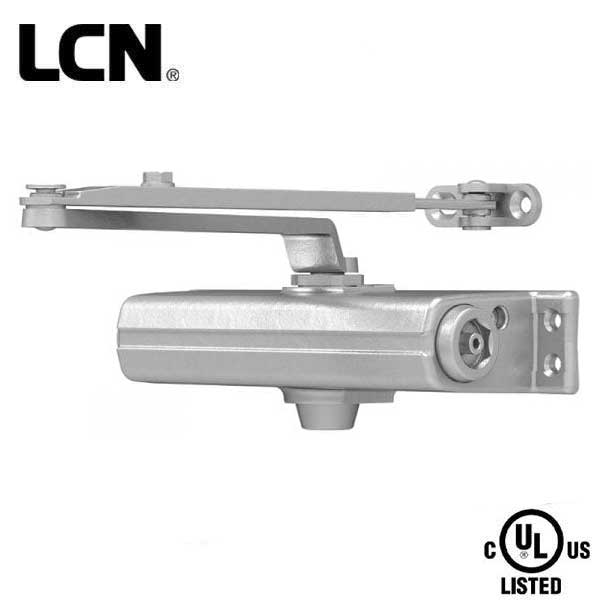

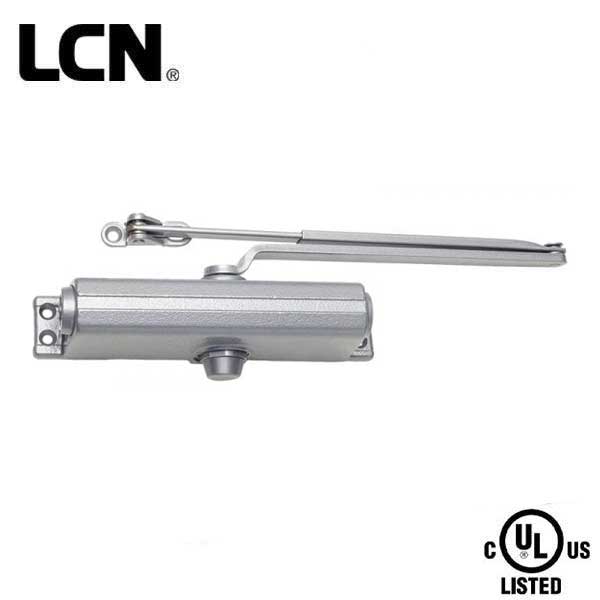

LCN - 1261 - Hydraulic Door Closer - PA Bracket/Hinge/Top Jamb - Adjustable Size 1-5 - Plastic Cover - Aluminum - Grade 1
Available to Order
SKU:
LCN-1261-RW/PA-AL
NSID:
16962
- $206.85
-
$231.19 - $206.85
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The LCN 1260 Series door closers are a light to medium duty cast iron designed to fit the most common commercial footprint. It's adjustable for spring sizes 1-5, features a complete line of regular and extra duty arms, and an optional Quick Fix bracket kit.
More Information Below
| Specifications | |
|---|---|
| Body Construction | Cast iron body Full complement bearing 1-3/8" Diameter piston 5/8" diameter single heat treated pinion journal |
| Fluid | All-weather fluid |
| Handing | Non-Handed |
| Templating | Peel-n-stick templates - 3/4" x 9-1/16" mounting hole pattern |
| Size | Adjustable Spring Size |
| Warranty | 20 years |
| Cover | Slimline plastic cover, optional |
| Fasteners | Self reaming and tapping screws (SRT) |
| Mounting | Hinge (pull side), top jamb (push side), parallel arm (push side) |
| Arms | RW/PA = Regular Arm with Parallel Arm Bracket |
| Finish | Aluminum |
| Butt hinges | Should not exceed 5" (127 mm) in width |
| Auxiliary stop | Recommended at hold open point or where a door cannot swing 180° |
| Reveal | Should not exceed 3/4" (19 mm) for regular armor 1/2" (13 mm) for Hold Open Arm |
| Top rail | Less than 2-1/2" (64 mm) requires plate, 1260-18 |
| Clearance | 2-7/8" (73 mm) behind door required for installation |
