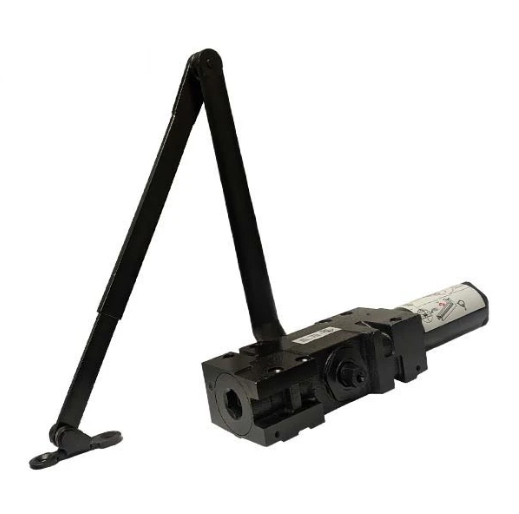

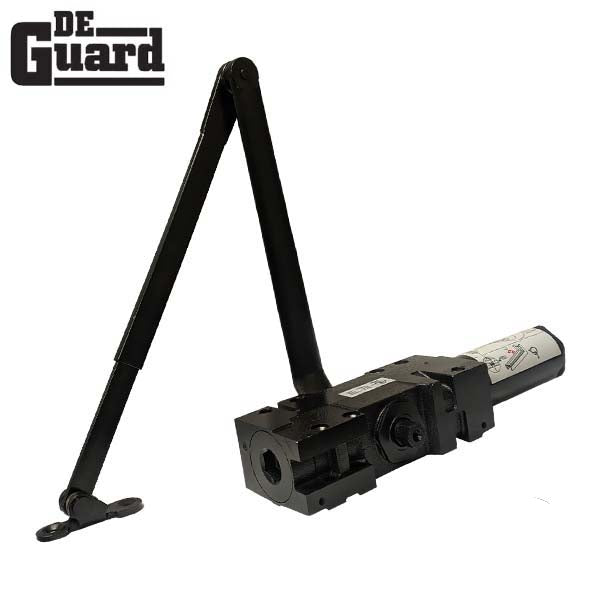

Hydraulic Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Size 1-6 - Plastic Cover - Duradonic - Grade 1
In Stock
SKU:
DDC9000-BC-DU
NSID:
1570
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
$68.70$89.90
MEMBER PRICE
The UL ANSI Door Closer offers the ideal combination of appearance, reliability and durability in today's market. With features such as adjustable closing and latch speed, adjustable back-check and lower opening resistance, this closer can meet virtually any application challenge.
Features:
- America Style design, heavy duty for commercial doors.
- UL Certificated, 2 million cycles in endurance
- Precise cast iron body & forged steel arm
- Adjustable closing & latching speed.
- Adjustable back-check
- Precision heavy duty rack (piston) & pinion gear, needle bearing.
- Decorative plastic cover
- Barrier-Free, lower opening resistance for the handicapped/elderly
Specifications:
| Construction: | Heavy-Duty cast iron body |
| Function: | Hydraulic Manual Door Closer |
| Closer Type: | Non-Hold Open |
| Interior or Exterior: | Universal |
| Handing: | Non-Handed |
| Finish: | 613 - Duranotic Bronze |
| Max Door Width: | 55" |
| Door Weight: | 33 - 330lbs |
| Mounting Style: | Parallel, Regular, Top Jamb |
| Arm Type: | Adjustable Sizes 1 to 6, Standard |
| Max. Door Opening: | 180 Degrees |
| Closing Speed Adjustment: | Speed 1: 180°~10° Speed 2: 10°~0° |
| Dimensions: | 280 x 70 x 51 (11 x 2.8 x 2in) |
| ADA: | Meets requirements for Americans with Disabilities Act (ADA) |
| Fire Rating: | UL 3 Hour Fire Rating |
| Certifications: | ANSI/BHMA A156.19 certified Grade 1 |
