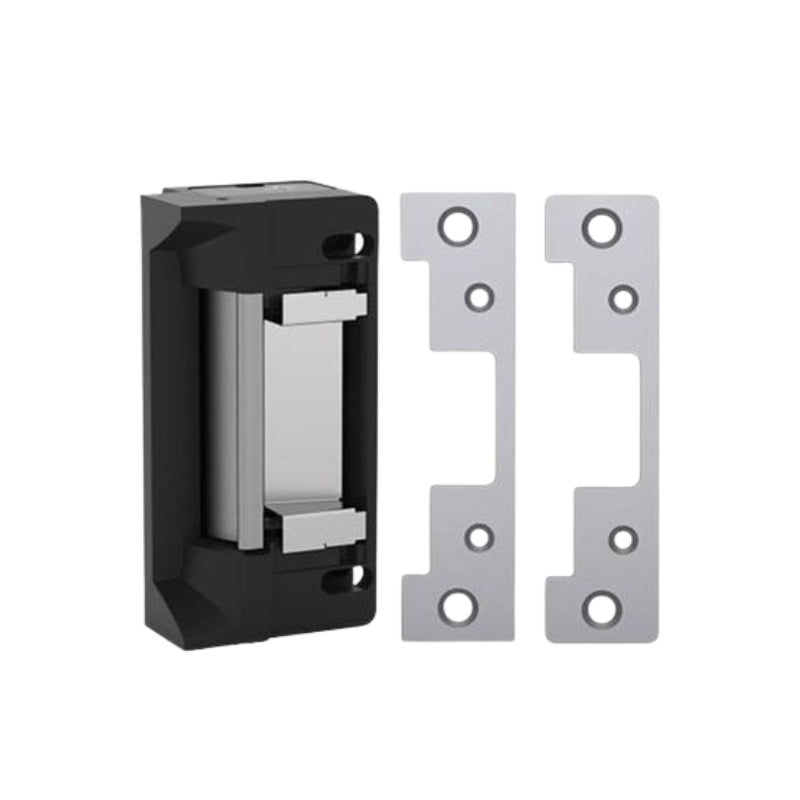

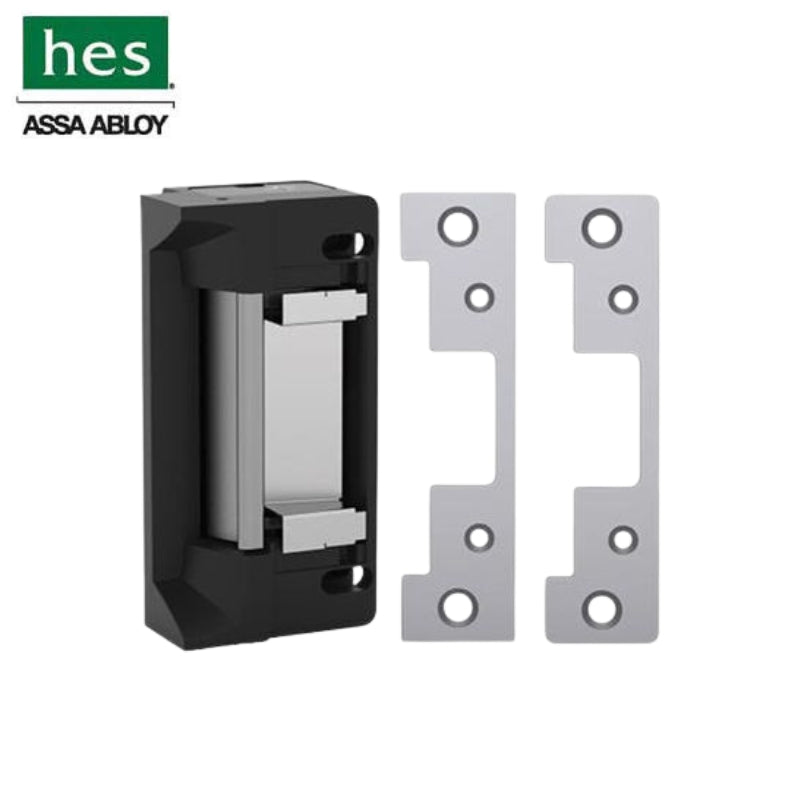

HES - 5200 Series - Electric Strike - Fail Safe-Fail Secure - 12/24 VDC - Satin Stainless Steel - Grade 1
In Stock
SKU:
HES-5200C-630
NSID:
67725
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $140.00
-
$168.00 - $140.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The HES 5200C has in-frame horizontal adjustability for easy installation. The 5200C works with cylindrical locksets up to a 3/4" throw latchbolt and includes in-frame adjustability and dual voltage. Each Complete Pac conveniently pairs the reliability of an HES electric strike with the flexibility of multiple faceplates in a single simple package. The 5200C includes a 5200 strike body, the 501 faceplate for cylindrical locksets in ANSI metal jambs and the 501A faceplate for cylindrical locksets or spring latches in aluminum frames.
Features:
- Includes: (1) 5200 strike body, (2) Faceplates (501 and 501A)
- Tamper resistant
- Static strength 1500 lbs & Dynamic strength 70'- lbs
- Endurance 500,000 cycles
- Field selectable fail secure/ fail safe
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Internally mounted solenoid
- Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)
- Strike body depth 1-1/16"
Specifications:
| Frame Application: | Metal, Wood |
| Adjustability: | Vertical |
| Shim Type: | NA |
| Latchbolt Accommodation: | 1/2" - 5/8" |
| Voltage: | 12/24 |
| Monitoring Installation: | Factory Configured |
| Monitoring Options: | Latchbolt Monitoring |
| Endurance (cycles): | 1,000,000 |
| Dynamic Strength (ft-lbs): | 70 |
| Tamper Resistant: | Yes |
| Grade: | Grade 1 |
| Warranty: | 5 Year |
| Certifications: | UL 1034, UL 294, UL 305, Grade 1, RoHS Compliant |
