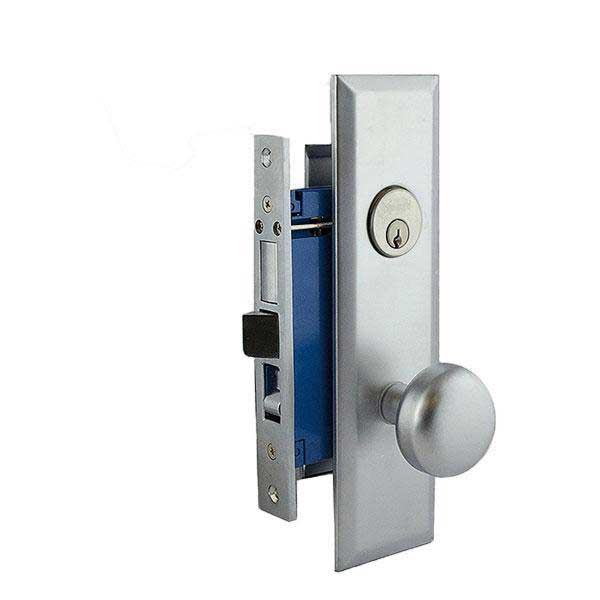

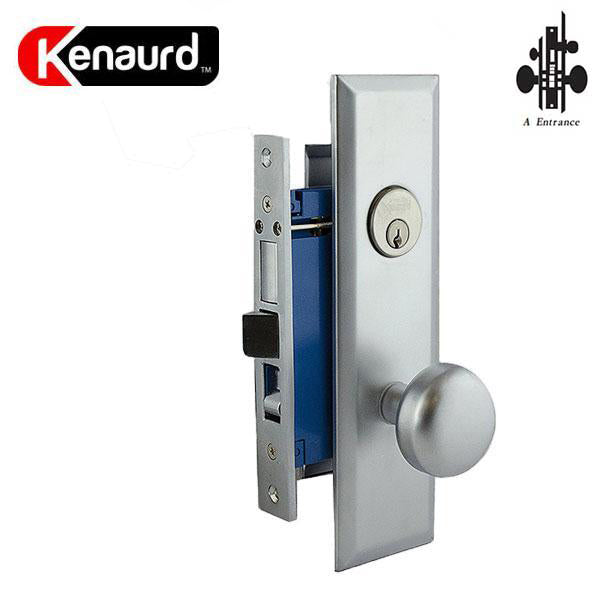

Heavy Duty Mortise Knob Lock - 2-1/2″ Backset - 26D - Satin Chrome - Entrance - LH
Out of Stock
SKU:
KML01-SS-SC1-LH
NSID:
3304
$40.10$48.12
MEMBER PRICE
- Single Mortise Entry Knobset
- Solid Brass Mortise Cylinder
- Heavy Duty Locking System
- SC1 Cylinder w/ 2 Brass Keys
- Backset: 2-1/2 Backset
- Keyed Alike up to 10 / KA10
- Limited Lifetime Warranty
| Function: | Entrance - ANSI F08, F10 Latch by knob either side except when outside locked by stop button; then by key outside, knob inside. Deadbolt by key outside, turnpiece inside. Deadbolt deadlocks latch |
| Thru Bolts: | Thru-bolted knob/plate assemblies integrate and align with lock body. |
| Finish: | US 26D - Satin Chrome |
| Handing: | Left Handed |
| Exterior: | Wrought brass screwless round knob, 2-1/4" diameter on steel reinforced brass plate, 10" x 2-3/4". Two thru posts pass thru lock body. Integral spring-loaded 9/32" spindle. |
| Interior: | Wrought brass screwless round knob, 2-1/4" diameter on steel reinforced brass plate, 7" x 2-1/4". Exposed 8-32 mounting. Bolts engage outside plate assembly. Integral spring loaded 9/32" spindle. |
| Cylinder: | 5-pin SC1 Mortise Cylinder 1-1/8" long |
| Door Thickness: | 1-1/4" to 1-3/4" |
| Backset: | 2-1/2" |
| Deadbolt: | Cast brass 1" throw |
| Latch: | Solid brass 1/2" throw reversible |
| Rocker Switch: | Locks or unlocks hub |
| Case: | High pressure cast Zamac baked enamel finish |
