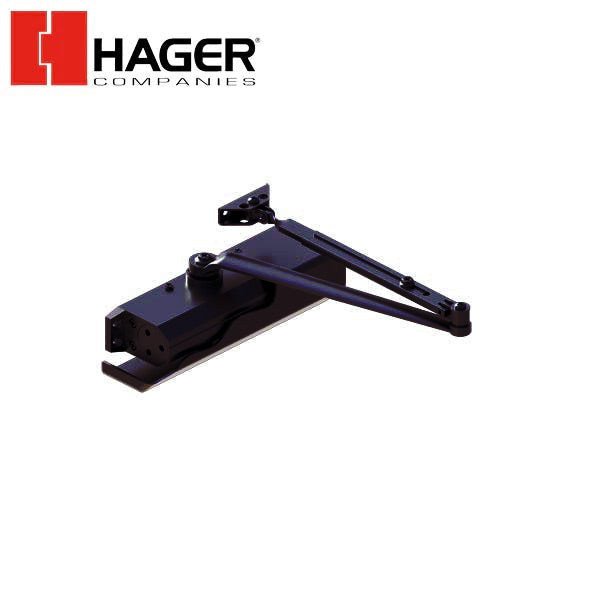

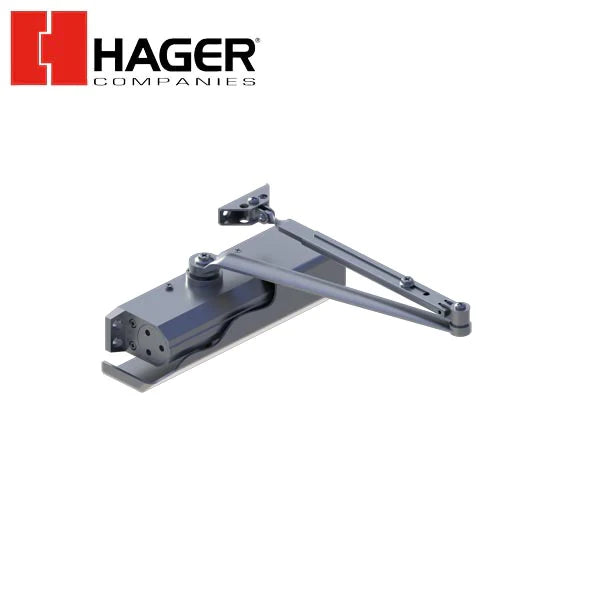

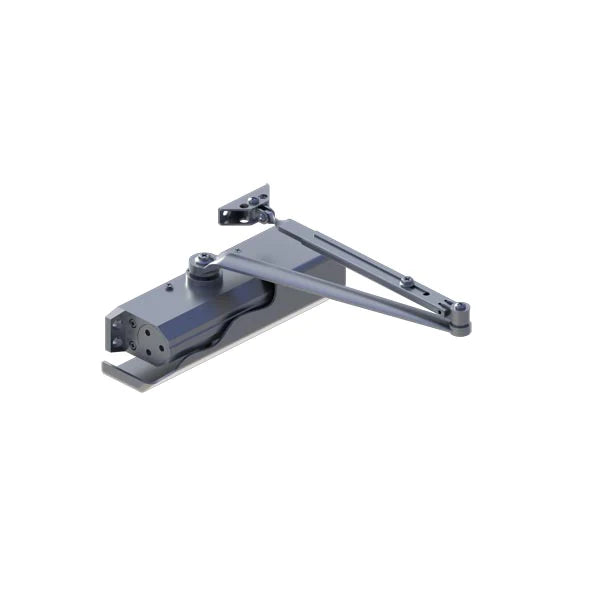

Hager - 5300 - Grade 1 Heavy Duty Door Closer - Optional Finish - Optional Mount - Optional Arm
Hager - 5300 - Grade 1 Heavy Duty Door Closer - Optional Finish - Optional Mount - Optional Arm
Hager - 5300 - Grade 1 Heavy Duty Door Closer - Optional Finish - Optional Mount - Optional Arm

Hager - 5300 - Grade 1 Heavy Duty Door Closer - Optional Finish - Optional Mount - Optional Arm

In Stock
SKU: HGR-5300K16ALMW
NSID: 65493 26326 65495 65496 65497 65498 65499 65500

Get it shipped ! Order within:

Member Benefits

Get it shipped ! Order within:

Get an Extra Hour with

Learn More
$134.70
$285.84
$134.70
Finish: Aluminum
Mount: Track Arm Mount
Arm Option: Non Hold Open Stop Track Arm


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description

Specs

Certifications
  • BHMA Certified ANSI A156.4, adjustable sizes 1-6
  • ADA compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for up to 3 hours
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
  • 5300 Door Closer EPD
Material
  • Aluminum Alloy
Arms and Brackets
  • Tri-Pack - regular, top jamb, and parallel arms - Standard
  • 15% power adjustment in standard arm for regular and top jamb mount
Cover
  • Full plastic cover and pinion cap
Door Thickness
  • 1-3/4" (44 mm)- standard
  • 1-3/8" - 2-1/4" (36 mm - 57 mm) - optional
Fasteners
  • Self-reaming, self-tapping wood and machine screws
  • Sex nuts and bolts
Handing
  • Non-handed
Maximum Door Weight
  • 250 lbs
Notes
  • To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products.
  • The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
  • Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door
  • If arms are ordered separately, there will be a significant difference in price than if purchased with a closer as a complete assembly. See adders for more information (add the list price of the option to the list price of the closer and take standard discounts).
  • Accessories may not be available in all finishes. Please contact Hager for availability and lead time.
Optional Arms
  • Tri-Pack Arm (Regular, Top Jamb and Parallel with Parallel Arm Bracket)- Standard
  • Hold Open Arm (HO) - 5910
  • Pull Side Stop Arm (PSS) - 5926
  • Pull Side Hold Open Stop Arm (PSHOS) - 5927
  • Extra Heavy Duty Arm - (HD) - 5911
  • Extra Heavy Duty Stop Arm ( HDS) - 5907
  • Extra Heavy Duty Hold Open Stop Arm (HDHOS) - 5906
  • Extra Heavy Duty Hold Open Arm (HDHO) - 5912
  • Extra Heavy Duty Cushion Stop Arm (HDCS) - 5957
  • Extra Heavy Duty Hold Open Cushion Stop Arm (HDHOCS) - 5956
  • Hold Open Stop Track Arm (HOTA)
  • Non-Hold Open Stop Track Arm (NHOTA)
  • Double Egress Hold Open Track Arm (DEHOTA)
  • Double Egress Non-Hold Open Track Arm (DENHOTA)
Optional Brackets
  • Hold open parallel arm bracket
  • Extra clearance parallel arm bracket
Product Description
  • Grade 1 Heavy Duty Door Closer
Springs
  • One piece seamless steel spring tube
  • Double heat-treated, steel-tempered springs
  • Precision-machined, heat-treated steel piston
Use
  • Ideal for schools, hospitals, and other high-use environments
Valves
  • Adjustable backcheck, sweep, and latching valves- standard
  • Delayed action valve - optional
  • All valves are staked
Warranty
  • Lifetime warranty
