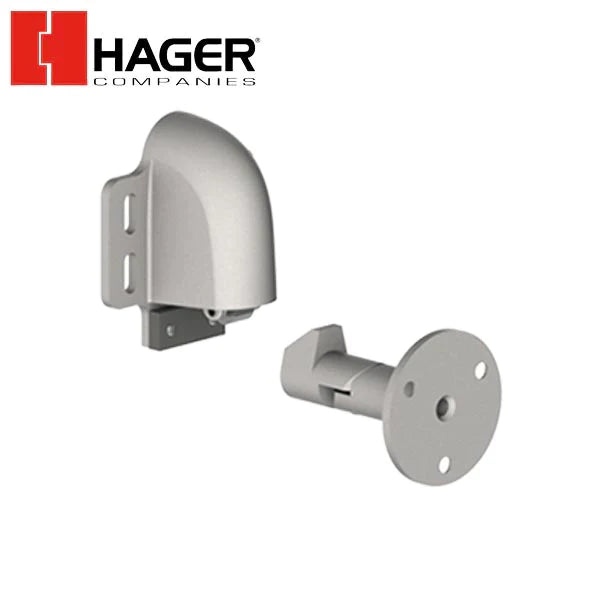

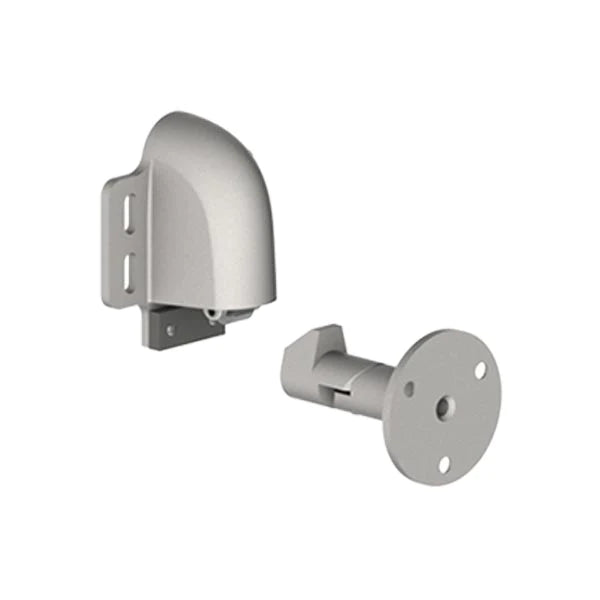

Hager - 327W - Automatic Wall Stop & Holder - Satin Chrome

Available to Order
SKU: HGR-327W00000000026D
NSID:

Please Note: This product has a lead time

$90.06
$146.14
$90.06


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specs

Certifications
  • Meets ANSI A156.16 for L11290
Fasteners
  • Three #14 x 1-1/2" FPHWS
  • Three 1/4-20 x 3/4" FPHMS
  • Four 12-24 x 1" TPHMS
  • Four #12 x 1" TPHWS
  • Three 1/4-20 lead anchors
Engaged Projection
  • 3-1/2" (89 mm)
Material
  • Cast Brass
Notes
  • Strike is adjustable 45° left or right
  • For use with wood or metal doors and drywall or concrete walls
  • Holder has a vertical adjustment once mounted on the door
  • For doors up to 500 lbs.
  • Holder Base: 3-1/16" x 3-1/2" (78 mm x 89 mm)
Product Description
  • Automatic Wall Stop & Holder
Strike Projection
  • 3-1/16" (78 mm)


Downloads:

Note: Strike is adjustable 45° left or right, For use with wood or metal doors and drywall or concrete walls, Holder has a vertical adjustment once mounted on the door, For doors up to 500 lbs. Holder Base: 3-1/16" x 3-1/2" (78 mm x 89 mm)

Compatible With

Note: Strike is adjustable 45° left or right, For use with wood or metal doors and drywall or concrete walls, Holder has a vertical adjustment once mounted on the door, For doors up to 500 lbs. Holder Base: 3-1/16" x 3-1/2" (78 mm x 89 mm)
