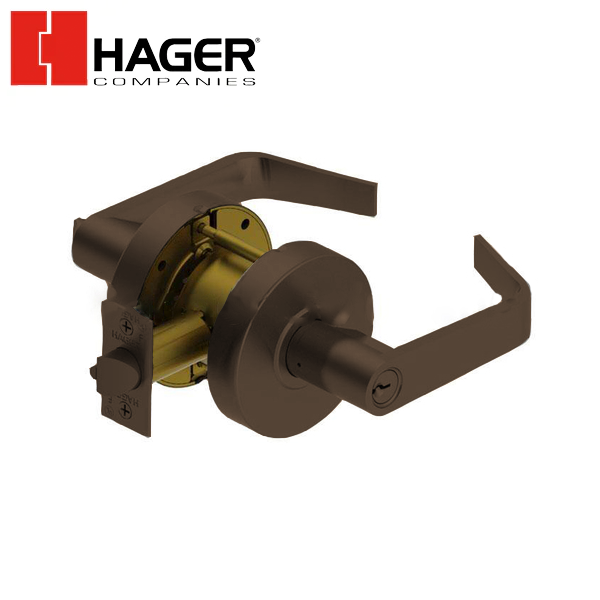

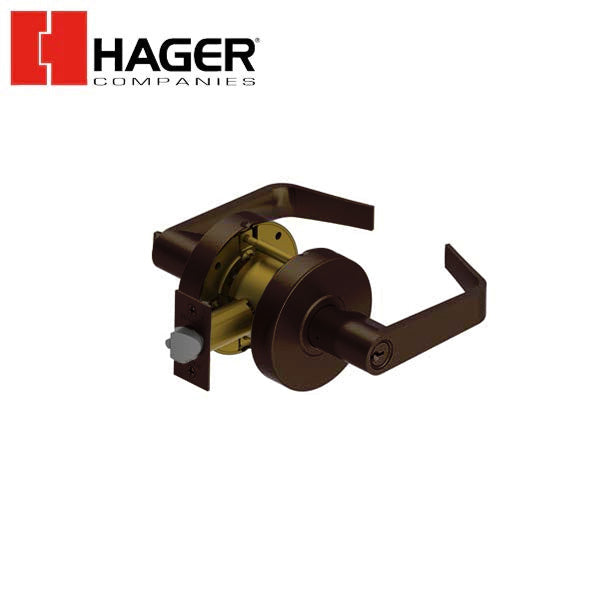

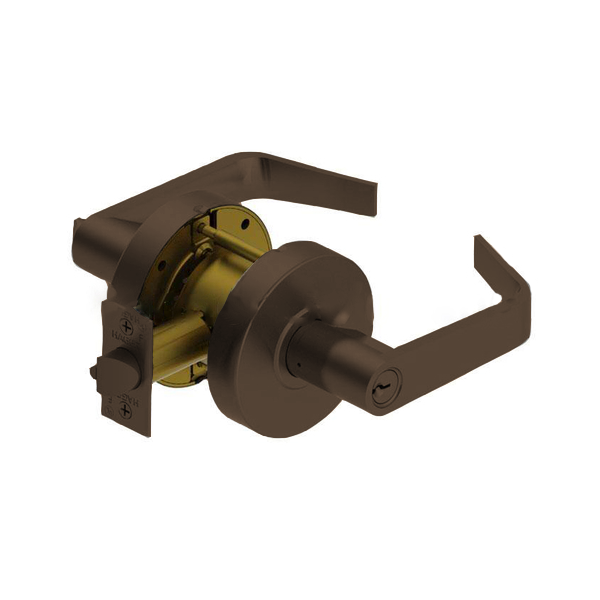

Hager - 2553 - Commercial Lever Set - 2 3/4" Backset - 10B - Oil Rubbed Bronze - Entrance - Keyed Different - Grade 2 - UHS Hardware
Hager - 2553 - Commercial Lever Set - 2 3/4" Backset - 10B - Oil Rubbed Bronze - Entrance - Keyed Different - Grade 2 - UHS Hardware
Hager - 2553 - Commercial Lever Set - 2 3/4" Backset - 10B - Oil Rubbed Bronze - Entrance - Keyed Different - Grade 2 - UHS Hardware
Hager - 2553 - Commercial Lever Set - 2 3/4" Backset - 10B - Oil Rubbed Bronze - Entrance - Keyed Different - Grade 2 - UHS Hardware

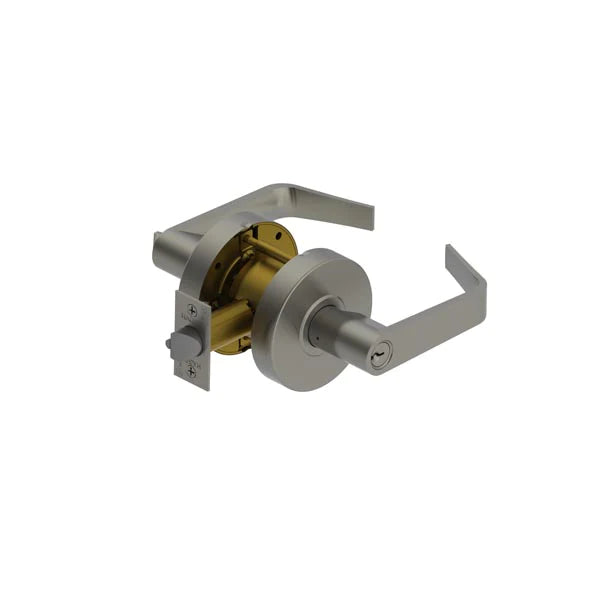

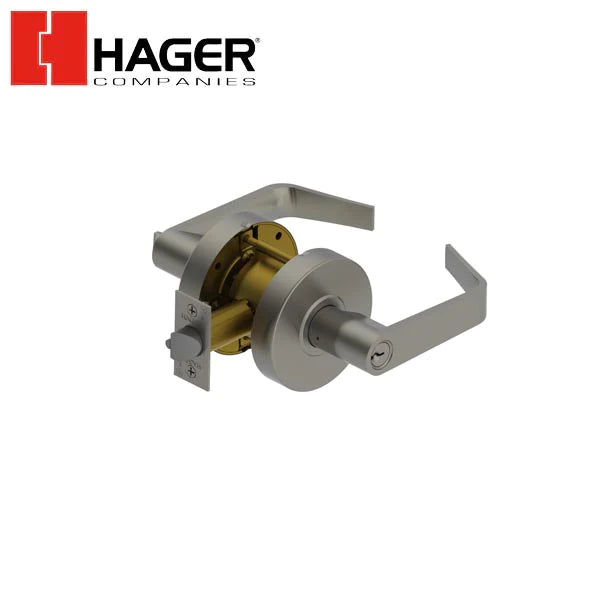

Hager - 2553 - Lever - Entry - 2-3/4" - Optional Finish - Optional Lever - Optional Keyway
Hager - 2553 - Lever - Entry - 2-3/4" - Optional Finish - Optional Lever - Optional Keyway
Hager - 2553 - Lever - Entry - 2-3/4" - Optional Finish - Optional Lever - Optional Keyway

Hager - 2553 - Lever - Entry - 2-3/4" - Optional Finish - Optional Lever - Optional Keyway

In Stock
SKU: HGR-255302N10B000WCDA
NSID: 26327

Get it shipped ! Order within:

Member Benefits

Get it shipped ! Order within:

Get an Extra Hour with

Learn More
$60.21
$141.58
$60.21
Finish: Oil Rubbed Bronze
Keyway: Schlage C
Lever: Withnell


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description

Specs

Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • Meets BHMA A156.2 Grade 2 test standards
Functions
  • Entry (F109)
Lever Options
  • Archer and Withnell
Cylinders/Cores
  • Keyed Different - standard
  • Cylinder drilled 6 pin, Keyed 5 pin - standard
  • Other Keying options, including 6 pin keyed, available from factory
  • Zero bit cylinders will be 6 pin keyed
  • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
Backsets
  • 2-3/4" (70 mm) standard
  • 2-3/8" (60 mm) optional
Door Thickness
  • 1-3/8" - 2" (35 mm - 51 mm)
Exposed Trim
  • Wrought brass, bronze, and stainless steel
  • Lever is zinc based, plated to match BHMA symbols
Features
  • No exposed mounting screws
  • Non-handed
Keys
  • Two operating keys supplied per lock
Keyway
  • Schlage C - Standard, other keyways optional
Latchbolt Type
  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
  • 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60mm) backset
  • Deadlocking latchbolt prevents manipulation when door is closed
Notes
  • Standard cylinder or Small Format Interchangeable Core housing available
Options
  • Interchangeable Cores are sold separately
  • Additional latchbolts and strikes available.
Rose Diameter
  • 3-11/32" (85 mm)
Standard Door Prep
  • Standard door prep - 2-1/8" (54 mm) diameter (cross bore)
  • Latch hole - 1" (25 mm) diameter (edge bore)
Strikes
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
Warranty
  • 5-year


Downloads:

Note: Standard cylinder or Small Format Interchangeable Core housing available
Compatibility

Compatible With

Downloads
Notes
Note: Standard cylinder or Small Format Interchangeable Core housing available
