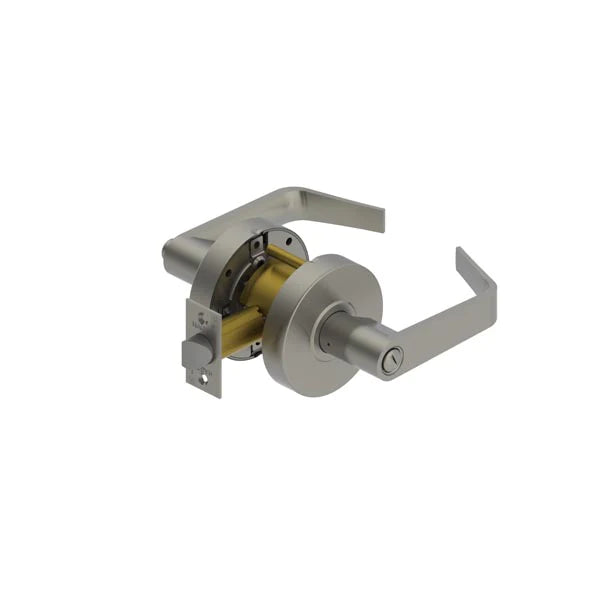

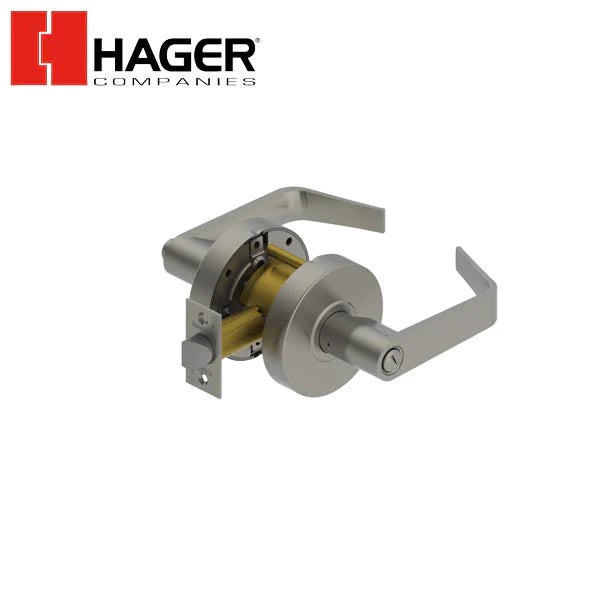

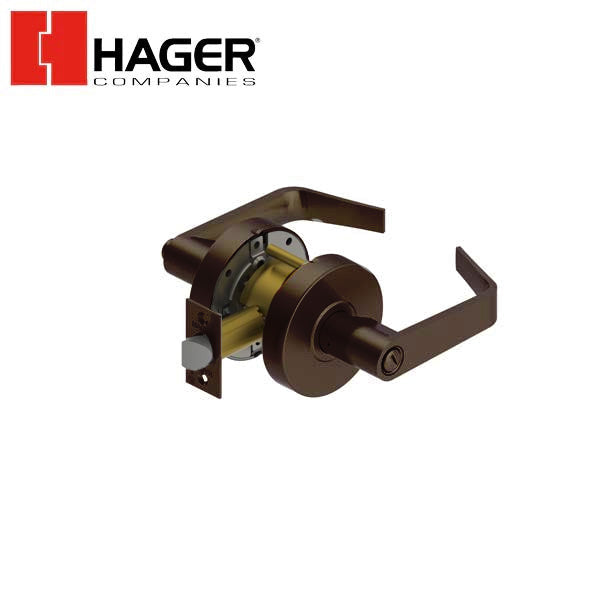

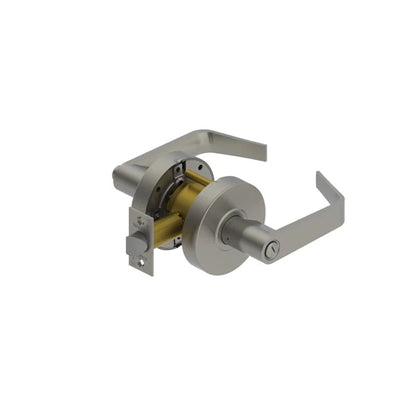

Hager - 2540 - Lever - Privacy - 2-3/4" - Optional Finish - Optional Lever
Hager - 2540 - Lever - Privacy - 2-3/4" - Optional Finish - Optional Lever
Hager - 2540 - Lever - Privacy - 2-3/4" - Optional Finish - Optional Lever

Hager - 2540 - Lever - Privacy - 2-3/4" - Optional Finish - Optional Lever

Available to Order
SKU: HGR-254002N10B000W00A
NSID:

Please Note: This product has a lead time

$57.98
$126.94
$57.98
Finish: Oil Rubbed Bronze
Lever: Withnell


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description

Specs

Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • Meets BHMA A156.2 Grade 2 test standards
Functions
  • Privacy (F76A)
Lever Options
  • Archer and Withnell
Backsets
  • 2-3/4" (70 mm) standard
  • 2-3/8" (60 mm) optional
Door Thickness
  • 1-3/8" - 2" (35 mm - 51 mm)
Exposed Trim
  • Wrought brass, bronze, and stainless steel
  • Lever is zinc based, plated to match BHMA symbols
Features
  • No exposed mounting screws
  • Non-handed
Latchbolt Type
  • 1/2" (13 mm) throw, stainless steel1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
  • 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60mm) backset
Options
  • Additional latchbolts and strikes available.
Rose Diameter
  • 3-11/32" (85 mm)
Standard Door Prep
  • Standard door prep - 2-1/8" (54 mm) diameter (cross bore)
  • Latch hole - 1" (25 mm) diameter (edge bore)
Strikes
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
Warranty
  • 5-year
