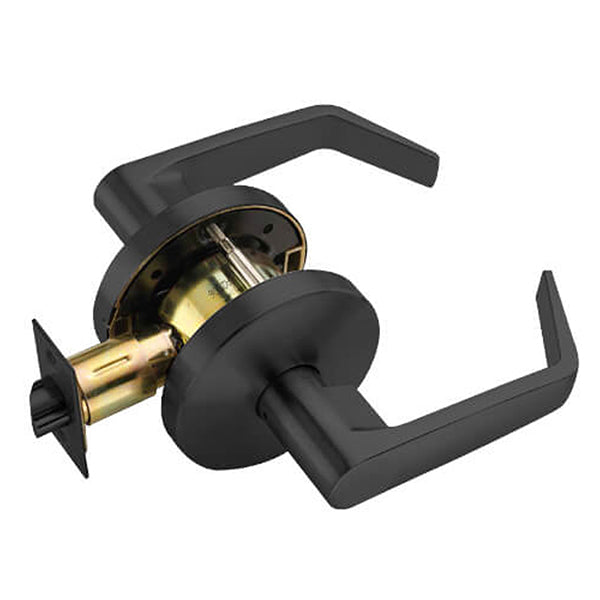

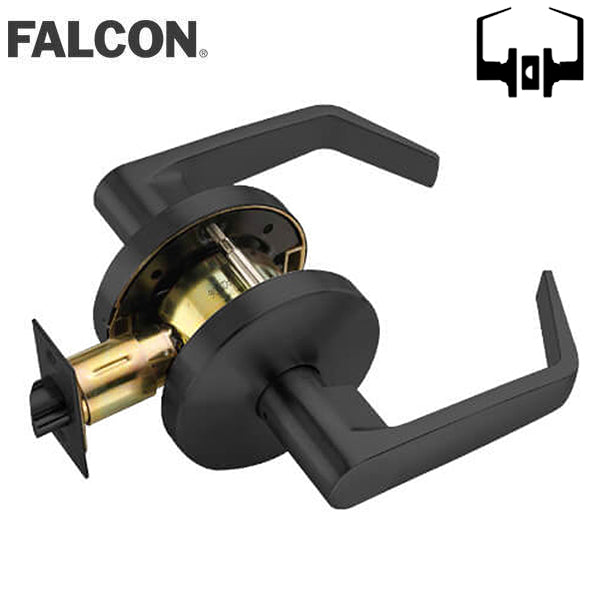

Falcon - W101S - Cylindrical Leverset - Dane Lever - Passage - 2 3/4" Backset - Flat Black - Grade 2
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $64.55
-
$77.46 - $64.55
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Falcon is dedicated to providing a solid product at a solid price no matter the application. When an affordable lock is needed for lower traffic doorways in government, retail, industrial or multi-family applications, the W Series lock fits perfectly. With a popular lever style as well as a popular rose diameters, Falcon can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections, as well as Schlage C keyway, which we now master key across the complete Falcon product line.
Feature
- Grade 2 certified
- All lever designs meet ADA requirements
- Heavy wrought brass or bronze roses over steel through-bolted rose inserts
- UL Listed 3 hour
- Non-handed levers for easy field installation
- Brass or cold-formed steel construction with zinc dichromate plating for rust resistance
Specifications
| Function | Passage - Latch bolt operated by levers/knobs from either side at all times. |
| Finish | 622 - US19 - Flat Black |
| Screws | Wood or metal doors |
| Door thickness | 1 3⁄8" to 1 3⁄4" |
| Backset | 2 3⁄4" |
| Lever Style | Dane |
| Handing |
Non-handed |
| Rose | 3 3⁄8" diameter |
| Cylinder | 6-pin conventional cylinder, D Keyway |
| Latches | 1⁄2" bolt projection |
| Strike | 4 7⁄8" x 1 1⁄4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. |
| Fire Rated | UL/ULC listed for 3 hour fire door |
| Certifications | Certified ANSI/BHMA A156.2, Series 4000, Grade 2., UL Listed |
| Manufacturer's Warranty | Limited Lifetime |
