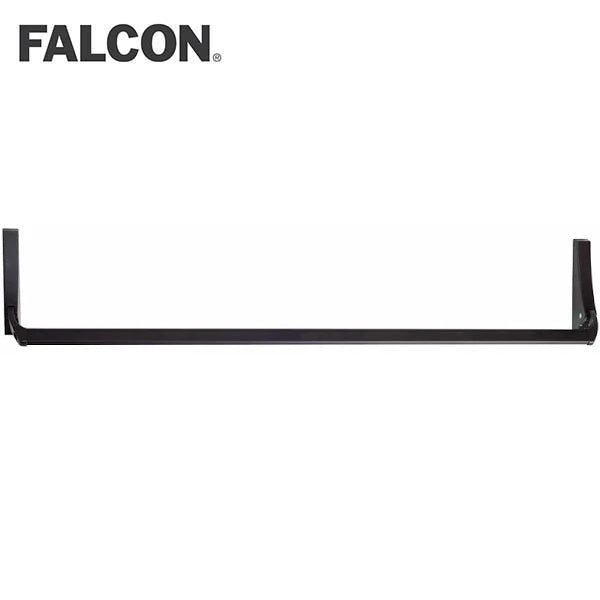

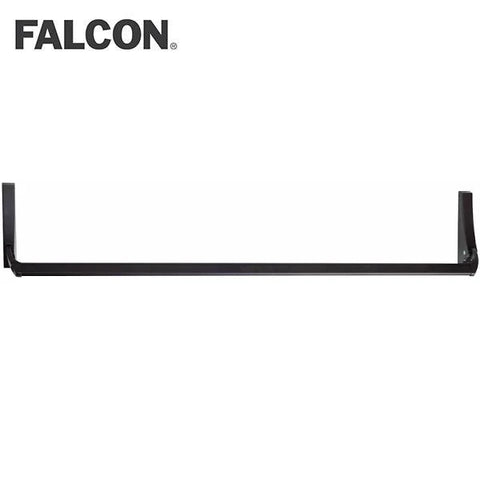

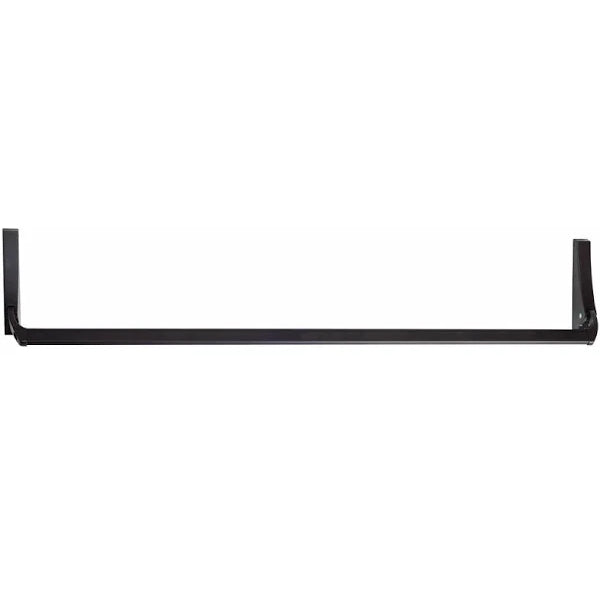

Falcon - 1990EO - Conceal Vertical Rod Crossbar Exit Device - 44" - Exit Only - 313 - Dark Anodized Bronze - Field Reversible - Grade 1
- $382.49
-
$458.99 - $382.49
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 1990/2090 Series narrow stile cross bar exit devices provide safe and reliable egress that is ideal for aluminum doors. The 1990 Series concealed vertical rod is designed for double door applications, while the 2090 Series rim device is designed for single door applications. The 1990 Series is certified to ANSI/BHMA A156.3 Grade 1 standards. Both series boast a 10-year limited warranty.
The 1990/2090 Series are suitable for retrofit applications with interior and exterior doors in commercial and retail installations. Features include standard hex dogging and concealed mounting screws to prevent tampering. Options include two lengths that can be cut down to size, four functions and four finishes to cover any building needs
Special Features:
- Aluminum cross bar and narrow stile center case to fit small stile aluminum doors
- Non-handed design, offering convenient field reversibility
- Ideal for retrofit commercial and retail applications, requiring a durable crossbar solution
- Offered in four functions and four finishes
- Comes standard with hex dogging and concealed mounting screws
| Handing | Field reversible |
| Functions | Exit Only - No Trim, Exit Device Only |
| Finish | Dark Anodized Bronze Aluminum |
| Strikes | PB48 top |
| Latches | Hex bottom latch (standard) |
| Dogging feature | Hex dogging standard |
| Cylinder | Rim |
| Sizes | Field adjustable width, 44" crossbar 84" Doors: 1 3⁄4" thick metal doors |
| Projections | 4 3⁄8" extended, 2 1⁄2" depressed |
| Doors | 1 3⁄4" thick metal doors |
| Stile | 1 3⁄4" minimum |
| Fasteners | All mounting screws are concealed |
| ANSI | Certified ANSI A156.3 grade 1 standards |
| UL | UL305 listed |
| Vertical rods | 7' standard, extension rod kits available up to 10' |
Downloads:
Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
