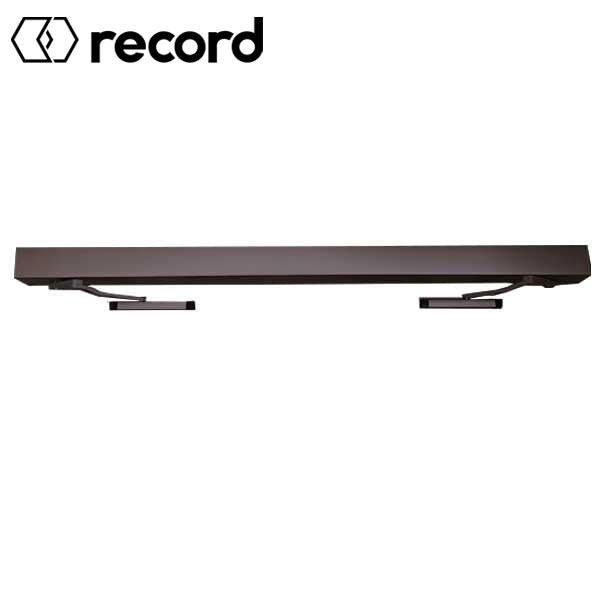

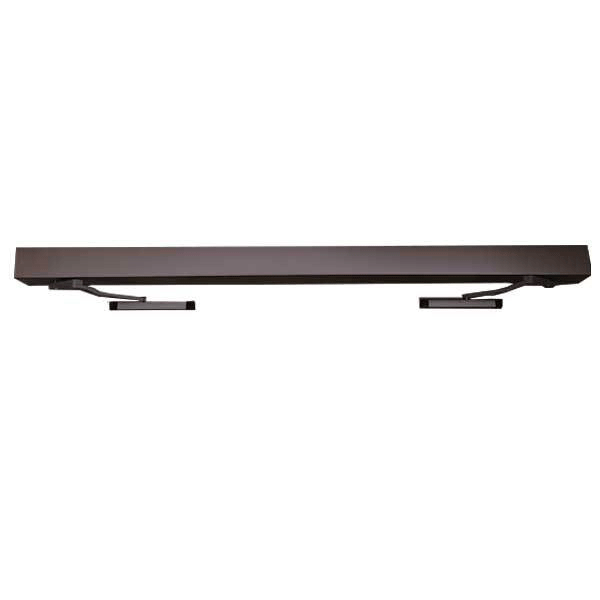

Record - HA8-LP - Low Profile Swing Door Operator - Left PULL- Right PULL - Antique Bronze - 75" For Double Doors
Available to Order
SKU:
ENT-WL-108-75
NSID:
1862
- $3,397.50
-
$6,101.00 - $3,397.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
ENT-WL-104-75

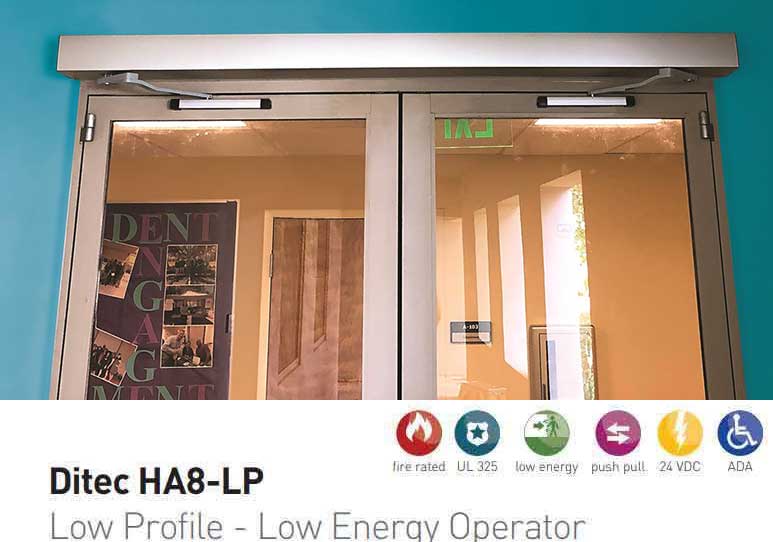

The Ditec HA8-LP low-energy operator has the same power and durability of the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.
Antique Bronze Finish
Available in 75" for Double Doors
Left Pull Arm - Right Pull Arm
- Quality Heavy Duty Commercial Construction
- High precision gears made for sustained long-term use

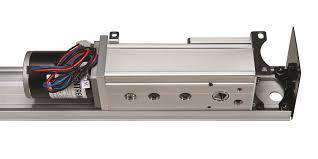

- Electro Mechanical Design for simple dependable operation
- Permanent lubrication for maintenance free operation
- Machined alloy gearbox housing
- 1/8th HP motor
- Digital Control Board
- Advanced Technology
- On-board programming
- Built in strike/mag lock relay - fail safe or fail secure
- Separate inputs for activation and safety devices
- Plug-n-play design for fast trouble free installation
- Compatible with safety and activation devices
- Integrates with building access & security systems
- Durable
- Built to outlast the competition
- Perfect for high traffic locations
| Application | Double Doors |
| Motor | 1/8 HP |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs. |
| Push Reveal | Up to 14" |
| Pull Reveal | Up to 5" |
| Handing | Left Pull Arm - Right Pull Arm |
| Drive Train Gear Box | Aluminum-Alloy Gearbox |
| Control Box | Single HA-8 w/Data, 24 VDC, 3 AMP |
| Operating Voltage (Standard) | 115VAC |
| Gear Grease | High Wear Protection |
| Bearings | HD Sealed |
| Motor | 1/8th HP |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs |
| Arm Connection | 1” Solid Spline Spindle |
| Adjustable Stop | Yes |
| Operator Switch | On-Off-Hold Open |
| Adjustable Spring Tension | Yes |
| Mechanical Clutch | Standard |
| Push or Pull Application | Pull |
| Easy Manual Operation | Yes |
| Surface Mounting | Yes |
| Side Loading | Yes |
| Electric Strike Power | Yes 24 VDC |
| Fire Door Compatibility | UL10C Approved |
| Circuit Protection | 3 amp Fuse |
| Meets ANSI 156.19 Low Energy | Yes |
Watch Complete Installation Video Here
