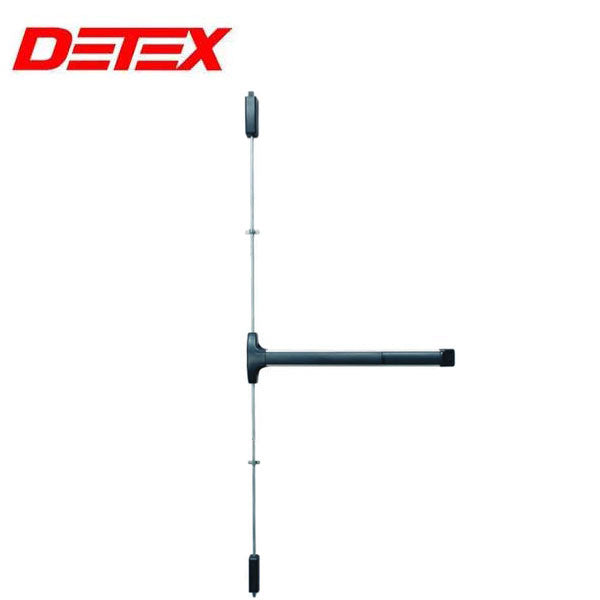

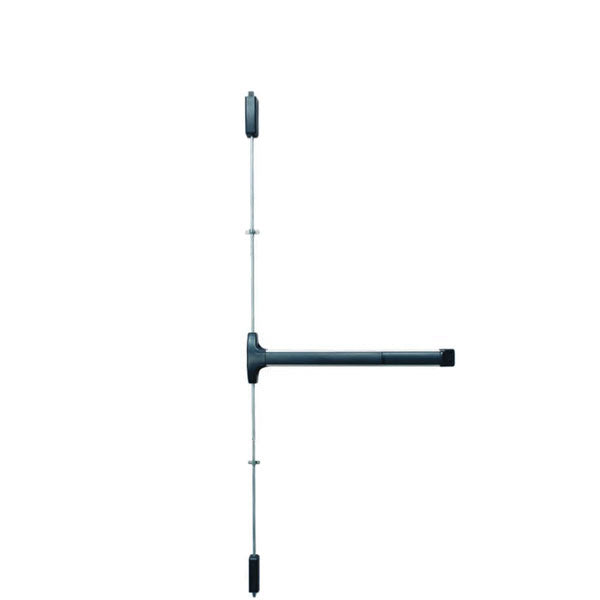

Detex - V50 - Surface Vertical Rod Exit Device - Hex Dogging - Wide Stile - 36" - Satin Aluminum - Black Trim - Grade 1
Available to Order
SKU:
DTX-V50-HD-628-96-36x84
NSID:
26842
- $591.25
-
$664.92 - $591.25
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The V50 Surface Vertical Rod device is a heavy-duty panic and fire exit hardware at an economical price designed for use on all types of single and double doors without a mullion. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
Features
- Priced to be the best value for durable, attractive panic hardware
- Patented mounting plate and strike locator replace paper templates
- Minimal door prep saves time and money
- Fast and easy installation saves time and money
- Angled end cap deflects damage away from the device
- Fits any door in almost any decor
- Outside trims are easily changed or rekeyed without removing device from door
Specifications
| Door Width | 36" |
| Door Height | 84" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Door Stile | Fits 3-1/2" stile doors |
| Top Latch | 3/4" deadlocking |
| Bottom Drop Bolt | 5/8" dia. x 5-5/8" long secures into strike plate |
| Handing | Handed, Field Reversible |
| Strike | Surface non-roller top strike and non-dust proof |
| Push Bar | 3 1/8” Extended 2 3/8” Depressed |
| Fire Rated | 3 Hours |
| Finish | Satin Aluminum |
| Certifications | UL/cUL Listed, UL 10B/10C, ADA, ANSI/BHMA certified A156.3, ANSI/BHMA certified A156.3 |
| Manufacturer's Warranty | 10 Year Mechanical |
