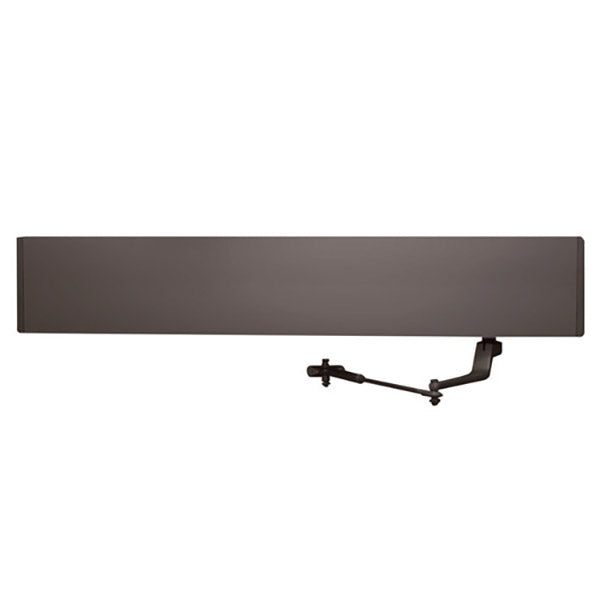

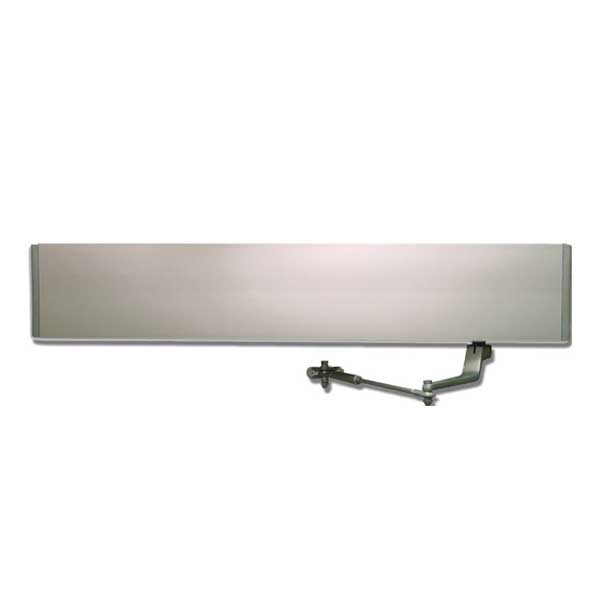

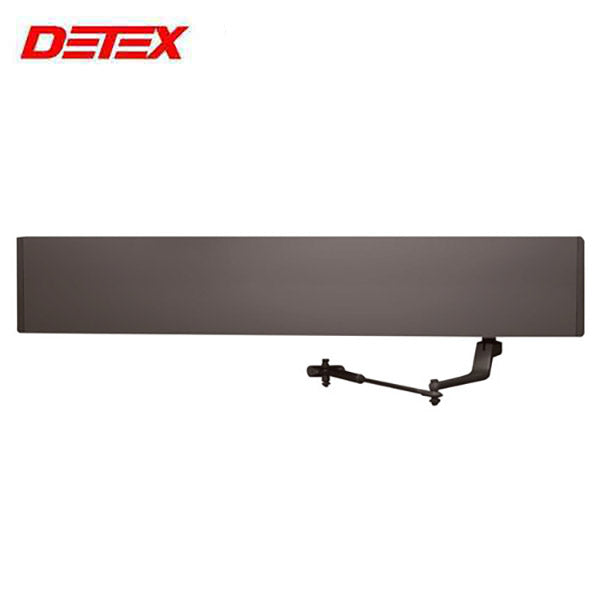

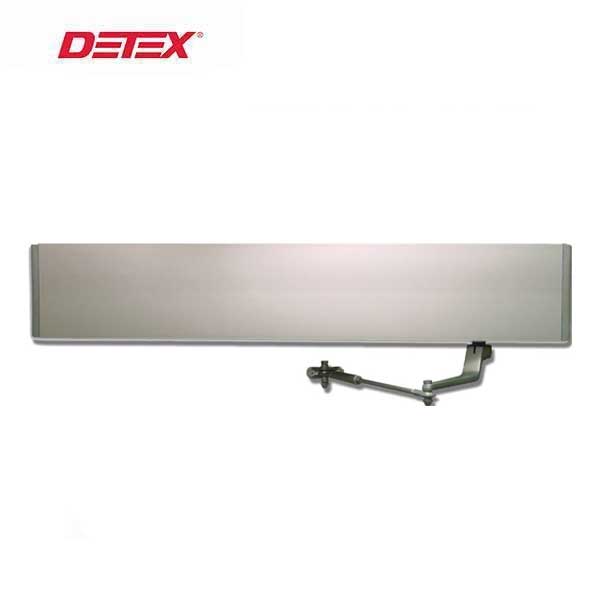

Detex - DTX-AO19-1 - Automatic Door Operator - Optional Size - Low Energy - Single Door - Heavy Duty - Optional Handing - Optional Finish
In Stock
SKU:
DTX-AO19-1x39.5xLH-PUSHxAL
NSID:
36322
36321
36324
36320
36323
36325
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $2,663.27
-
$3,102.48 - $2,663.27
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DTX-AO19-1
The DTX-AO19-1, AO19 Series, Automatic Operator for single doors is an easy to install, heavy duty product for high use and high abuse low energy application. The AO19 Series meets requirements for ANSI/BHMA A156.19 (American National Standard for Power Assist and Low Energy Power Operated Doors) and provides
standard features that meet the requirements of the American Disabilities Act.
Features:
- Economical operator provides safe and easy access in medium to high-traffic and security areas
- Provides ADA compliant access to handicap applications
- Quiet operation
- 115VAC power plug-in mounted in header
- Hanger plate allows quick installation
- Self-contained unit in an extruded case allows easy access for maintenance and adjustments
- Works with existing access control, locking and computer signal devices
- Reduced service calls due to heavy duty construction
- 3-way low-voltage ON/OFF/HOLD switch for ease of service and setup
- Single voltage source required to operate
- Adjustable closing speed
Sizing Options:
- 39.5” - Fits above most 36” doors
- 45.5” - Fits above most 42” doors
- 52” - Fits above most 48” doors
| Power Requirements | 115VAC 60 HZ 3 amps |
| Push Revel Depth | Up to 11" with standard arm |
| Motor |
|
| Door Weight | For use on doors 300 lbs or less |
| Module |
|
| Enclosure |
|
Installation:
Downloads:
